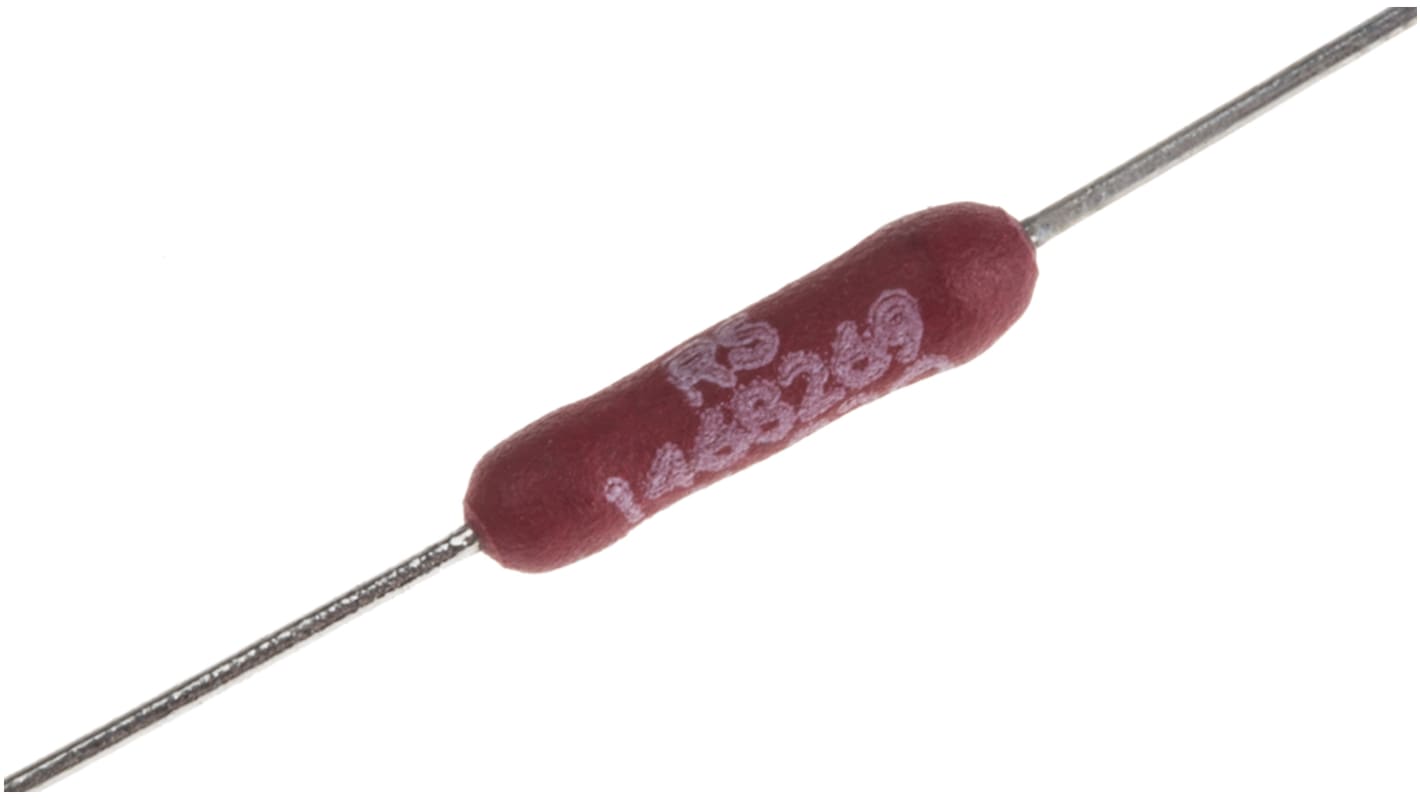

RS PRO 82 Ω Wirewound Resistor 1 W 5 %
- RS Stock No.:
- 146-8269
- Manufacturer:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Sponsored
- RS Stock No.:
- 146-8269
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Resistor | |
| Resistance | 82Ω | |
| Resistor Type | Silicone Coated Wirewound Axial | |
| Power Rating | 1W | |
| Tolerance ± | 5% | |
| Axial/Radial | Axial | |
| Voltage | 150V | |
| Technology | Wirewound | |
| Series | RSAWW | |
| Automotive Standard | No | |
| Lead Pitch Radial | 38.1mm | |
| Minimum Operating Temperature | 25°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 275°C | |
| Height | 3.2mm | |
| Width | 3.2mm | |
| Length | 11.1mm | |
| Standards/Approvals | No | |
| Diameter | 3.2mm | |
| Temperature Coefficient | +20 ppm/°C | |
| Lead Diameter | 0.51mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Resistor | ||
Resistance 82Ω | ||
Resistor Type Silicone Coated Wirewound Axial | ||
Power Rating 1W | ||
Tolerance ± 5% | ||
Axial/Radial Axial | ||
Voltage 150V | ||
Technology Wirewound | ||
Series RSAWW | ||
Automotive Standard No | ||
Lead Pitch Radial 38.1mm | ||
Minimum Operating Temperature 25°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 275°C | ||
Height 3.2mm | ||
Width 3.2mm | ||
Length 11.1mm | ||
Standards/Approvals No | ||
Diameter 3.2mm | ||
Temperature Coefficient +20 ppm/°C | ||
Lead Diameter 0.51mm | ||
- COO (Country of Origin):
- MX
The RSAWW is offered as an economical conformal silicone-ceramic coated resistor series. The RSAWW is constructed using an all-welded assembly giving great resistance to thermal shock making them ideal for a wide range of electrical and electronic applications. The durable but economical RASWW Series resistors are available in 5 sizes up to 10 watts.
