MEAN WELL Switching Power Supply, EPS-15-12 12V dc, 1.25 A, 15 W, Input 85V ac to 370 V dc, 264V ac
- RS Stock No.:
- 777-3106
- Distrelec Article No.:
- 301-56-827
- Mfr. Part No.:
- EPS-15-12
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
SGD10.13
(exc. GST)
SGD11.04
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 10 unit(s) ready to ship from another location
- Plus 45 unit(s) shipping from 19 March 2026
- Plus 120 unit(s) shipping from 17 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | SGD10.13 |
| 10 - 49 | SGD9.92 |
| 50 + | SGD9.62 |
*price indicative
- RS Stock No.:
- 777-3106
- Distrelec Article No.:
- 301-56-827
- Mfr. Part No.:
- EPS-15-12
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 15W | |
| Minimum Operating Temperature | -30°C | |
| SMPS Output Current | 1.25 A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 24mm | |
| Weight | 57g | |
| Standards/Approvals | UL 6681, TUV BS ENEN 6681, IEC 6681, EAC TP TC 004 | |
| Width | 24 mm | |
| Length | 63.5mm | |
| Series | EPS-15 | |
| Maximum Input Voltage | 370, 264V dc | |
| Efficiency | 82% | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 1.25A | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 15W | ||
Minimum Operating Temperature -30°C | ||
SMPS Output Current 1.25 A | ||
Maximum Operating Temperature 70°C | ||
Depth 24mm | ||
Weight 57g | ||
Standards/Approvals UL 6681, TUV BS ENEN 6681, IEC 6681, EAC TP TC 004 | ||
Width 24 mm | ||
Length 63.5mm | ||
Series EPS-15 | ||
Maximum Input Voltage 370, 264V dc | ||
Efficiency 82% | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
Output Current 1.25A | ||

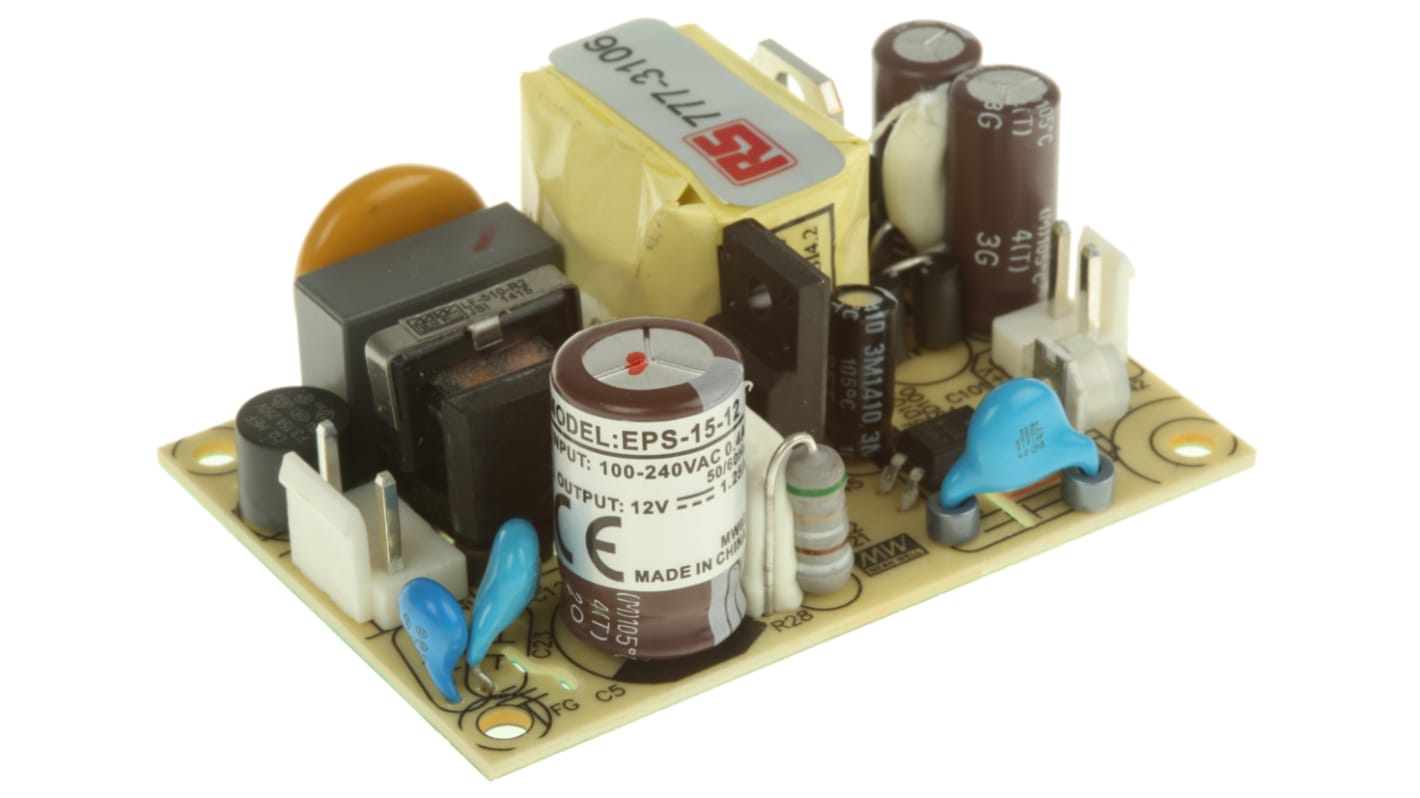

Mean Well EPS-15 Series 15W AC-DC Open Frame Miniature Switch Mode Power Supply
The Mean Well EPS-15 Series delivers compact size, high efficiency and is cost efficient. This Switch Mode, Open Frame Power Supply is 37% smaller than previous comparable products, with working efficiency increased by 2∼8%. The EPS-15 Power Supply has a high efficiency up to 85% and they can be cooled by Free air convection. These Mean Well Power Supplies have a very low no load power consumption of ˂0.3W, conforming to the requirements of ErP norm and Energy Star for end systems. The EPS-15 is ideal for applications such as Factory Automation, Electrical ot Mechanical equipment and for all applications that requires a low no load power consumption.
Compact PCB Size
No load Power consumption ˂0.3W
High efficiency up to 85%
Universal AC input
24mm Low profile
Cooling by free air convection
Protections for short circuit, overload and over voltage
3 year warranty
Standards
TUV EN60950-1
