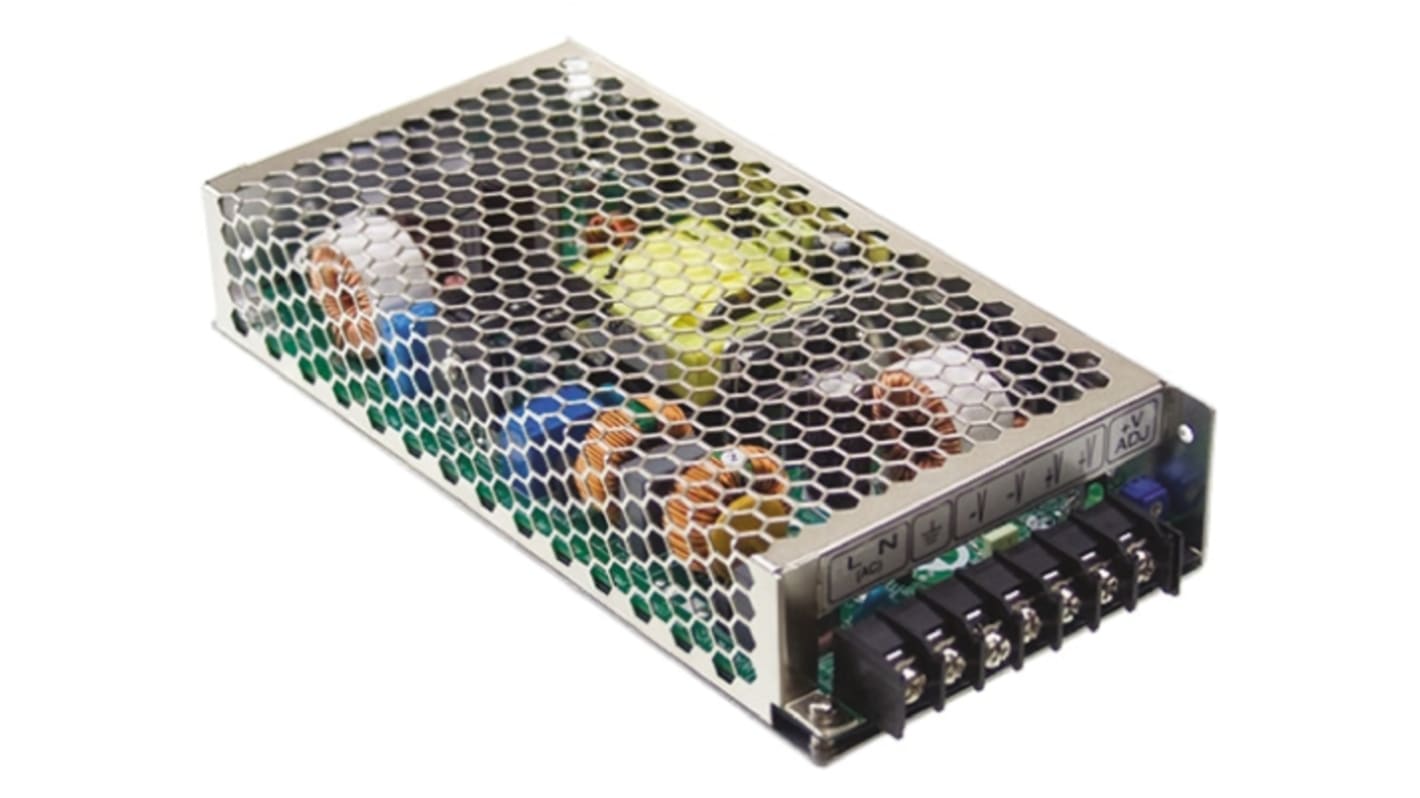

MEAN WELL Switching Power Supply, MSP-200-48 48V dc, 4.3 A, 206 W, Input 85V ac to 370 V dc, 264V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

SGD134.59

(exc. GST)

SGD146.70

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 27 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9SGD134.59
10 - 49SGD131.79
50 +SGD127.84

*price indicative

RS Stock No.:
770-4030
Distrelec Article No.:
303-86-045
Mfr. Part No.:
MSP-200-48
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

Switching Power Supply

Maximum Output Voltage

48V dc

Number of Outputs

1

Mount Type

Chassis

Power

206W

Minimum Operating Temperature

-40°C

SMPS Output Current

4.3 A

Maximum Operating Temperature

70°C

Standards/Approvals

CCCGB4943.1, BSMI CNS143361, AS/NZS62368.1, UL 62368-1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1

Weight

770g

Width

38 mm

Depth

38mm

Length

199mm

Series

MSP-200

Efficiency

90%

Maximum Input Voltage

370, 264V dc

Minimum Input Voltage

85V ac

Output Current

4.3A

Hazardous Area Certification

No

Mean Well MSP-200 Series 200W AC-DC Enclosed Switch Mode Medical Power Supply


The Mean Well MSP-200 is a 200W AC/DC high efficiency medical enclosed type power supply. The MSP-200 series conforms to international medical safety regulations and EMI class B level. With low leakage current and very low “no load power consumption”, this power supply accomplishes the high quality demand of non patient contact medical applications. With up to 89% very high efficiency, under full load condition it can be cooled by free air convection at +40℃ ambient temperature and up to +70℃ by suitable de rating. The MSP-200 power supply comes with 300VAC input surge immunity for 5 seconds, reducing the risk of damages and it includes a remote sense, it has protections for short circuit, overload, over voltage, and over temperature, it can be used in all types of Green mode medical equipments, or electric devices and conform to the energy saving requirements for end systems. Suitable for medical equipments, chemical and biological detection equipments, analysis facilities, and any systems that have low “no load power consumption” requirement.

Universal AC input Full range

Built-in active PFC function

Withstand 300VAC surge for 5 seconds

High efficiency up to 89%

Low leakage current <450μA, MOOP level

No load power consumption < 0.5W

1U low profile: 38mm

Medical safeties certified, MOOP level

Protection Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Built-in constant current limiting circuit

Built-in remote ON/OFF control

Built-in remote sense function

5V/0.3A standby output

Switch Mode - Mean Well Medical Enclosed AC/DC Power Supplies


Standards

UL60601-1 / CUL60601-1 / CB / IEC60601-1
