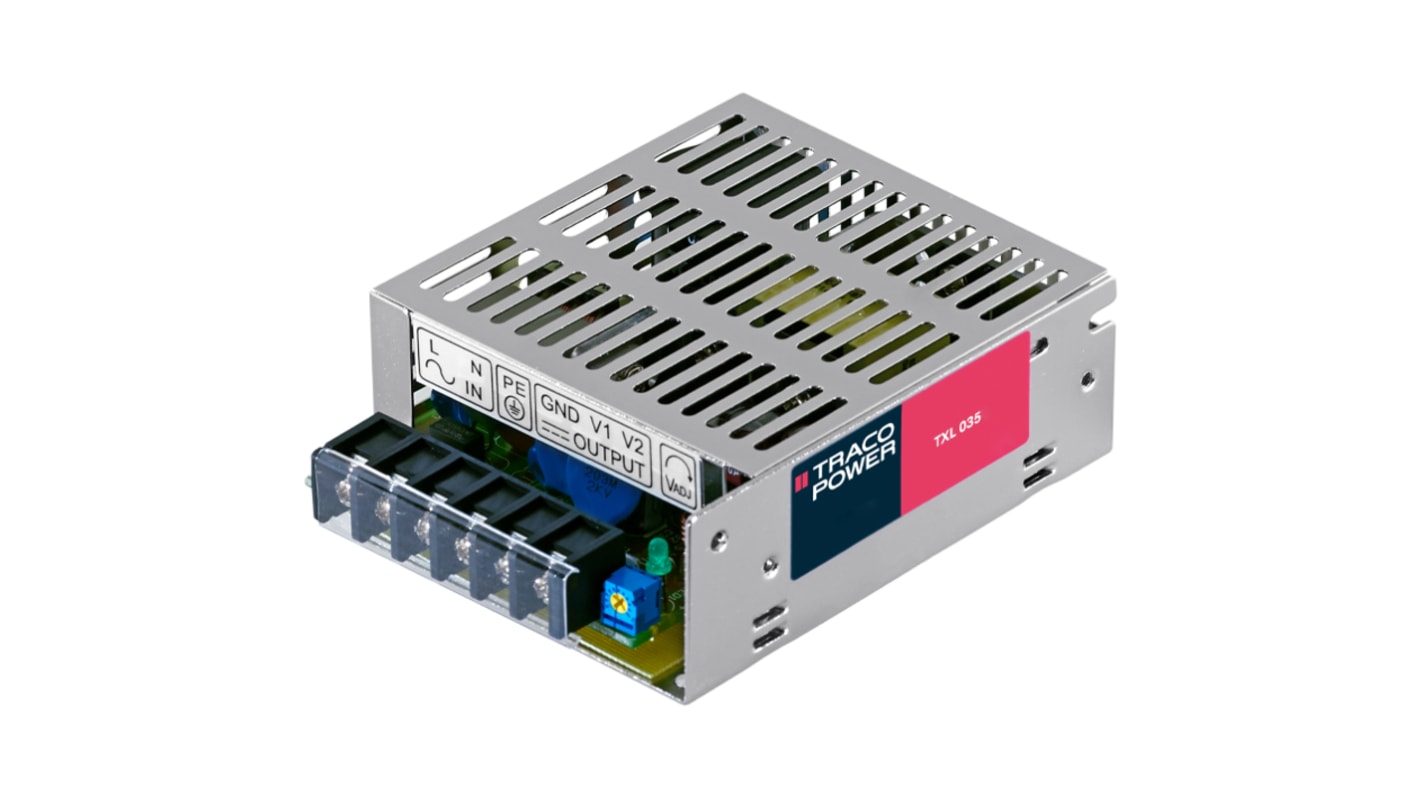

TRACOPOWER Switching Power Supply, TXL 035-15S, 15V dc, 2.4A, 35W, 1 Output, 85 → 264V ac Input Voltage

The TRACOPOWER TXL series is a family of encased power supplies, designed for a wide range of cost critical industrial applications. Wit a low profile metal case and screw terminal block connection they are easy to install in any equipment. These power supplies have Universal Input 85-240VAC and comply also with European EMC standards and the Low Voltage Directive (LVD). The high quality of this product is supported by a 3 year warranty.

Wide range universal input
Compact design, metal case
Easy installation - screw terminals
Short circuit and overvoltage protection
Power factor correction to EN 61000-3-2 (PFC)
EMI/EMC complies to EN 50081-1 and EN 50082-1

De-rating 2% per °C above 45°C (2.5% per °C for TXL220 types).
TXL 120 series is not recommended for new designs, please refer to TXL 100 series for suitable alternatives

Total power must not exceed specified max. output power for Multi Output models

UL 60950-1, IEC 60950-1, EN 60950-1 2nd edition

UL, cUL, CB report

This switching power supply from TRACOPOWER is a high-quality, 35W power supply from the TXL 035 Series. It is enclosed in a compact metal case with a screw terminal block connection, making it easy to install in various equipment. With a universal input voltage range of 85-264 V AC and high efficiency of up to 84%, this power supply is suitable for a wide range of cost-critical applications.

• Compact metal case with screw terminal block for easy installation
• High efficiency rating of 70 to 84%
• Universal input voltage range of 85-264 VAC
• Compliance with European EMC standards and the Low Voltage Directive
• Short circuit and overvoltage protection for added safety

• Ideal for applications requiring a reliable, compact power supply
• Can be used for cost-critical applications where high efficiency is essential

Yes, this switching power supply can handle input voltages ranging from 85 to 264 V AC.

Yes, this power supply offers a stable and efficient 15V DC output.

Yes, this power supply is designed for chassis mount applications for easy installation and use.

While it has a maximum temperature of +70°C, it is recommended to operate within the temperature ranges mentioned for optimal performance.

This power supply comes with short circuit and overvoltage protection to ensure the safety of your equipment.
