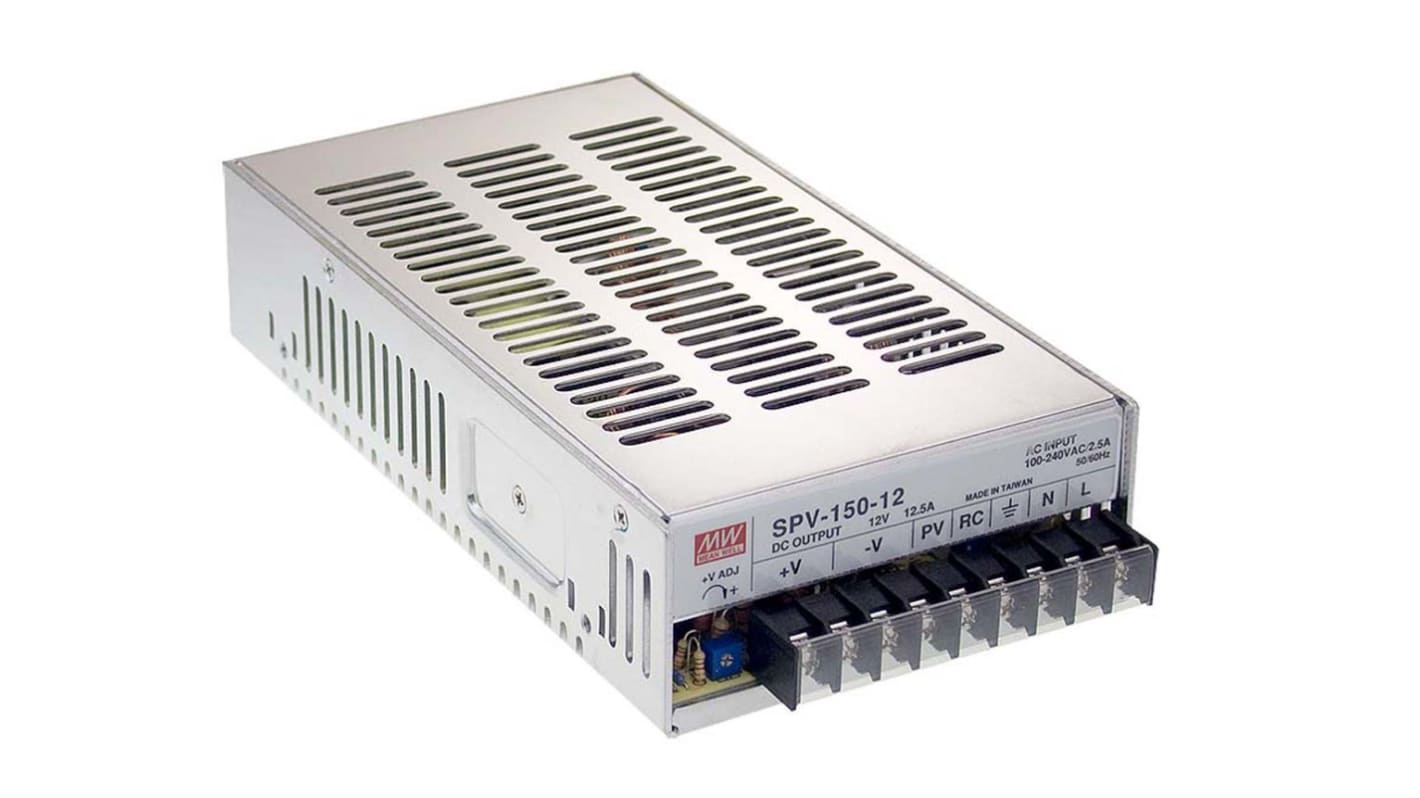

MEAN WELL Switching Power Supply, SPV-150-12 12V dc, 12.5A, 150 W, Input 88V ac to 370 V dc, 264V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

SGD87.65

(exc. GST)

SGD95.54

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 13 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9SGD87.65
10 - 49SGD85.82
50 +SGD83.24

*price indicative

RS Stock No.:
705-9841
Distrelec Article No.:
303-87-088
Mfr. Part No.:
SPV-150-12
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

Switching Power Supply

Maximum Output Voltage

12V dc

Number of Outputs

1

Mount Type

Chassis

Power

150W

Minimum Operating Temperature

-20°C

SMPS Output Current

12.5A

Maximum Operating Temperature

65°C

Depth

50mm

Length

215mm

Width

115mm

Standards/Approvals

TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCCGB4943.1, BSMI CNS143361, AS/NZS62368.1, UL 62368-1

Weight

1.1kg

Efficiency

82%

Series

SPV-150

Maximum Input Voltage

370, 264V dc

Hazardous Area Certification

NO

Output Current

12.5A

Minimum Input Voltage

88V ac

COO (Country of Origin):
TW

SPV-150 Series Single Output Power Supply with PFC Function


The SPV-150 is a series of single output enclosed type power supply with programmable output voltage function. By adding 1∼5.5 Vdc external control signal the output voltage can be trimmed from 20% to 110% of the rated value, which increases the flexibility to end systems users and fulfils equipments which requires switching between different output voltages. This power supply is high frequency design and possesses efficiency up to 83%. The SPV-150 is cooled by free air convection. This switch mode power supply features short circuit, over voltage, overload and over temperature protection. Ideal applications for the SPV-150 include LCD panel burn in system, IC testing equipment, factory automation, mechanical and electrical industry, or any applications that often need to adjust the output voltage.

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protections: Short circuit, Overload, Over voltage, Over temperature

Fixed switching frequency at 100KHz

Output voltage programmable from 20∼110% by 1→ 5.5Vdc external control signal

Standards

UL60950-1, EN60950-1
