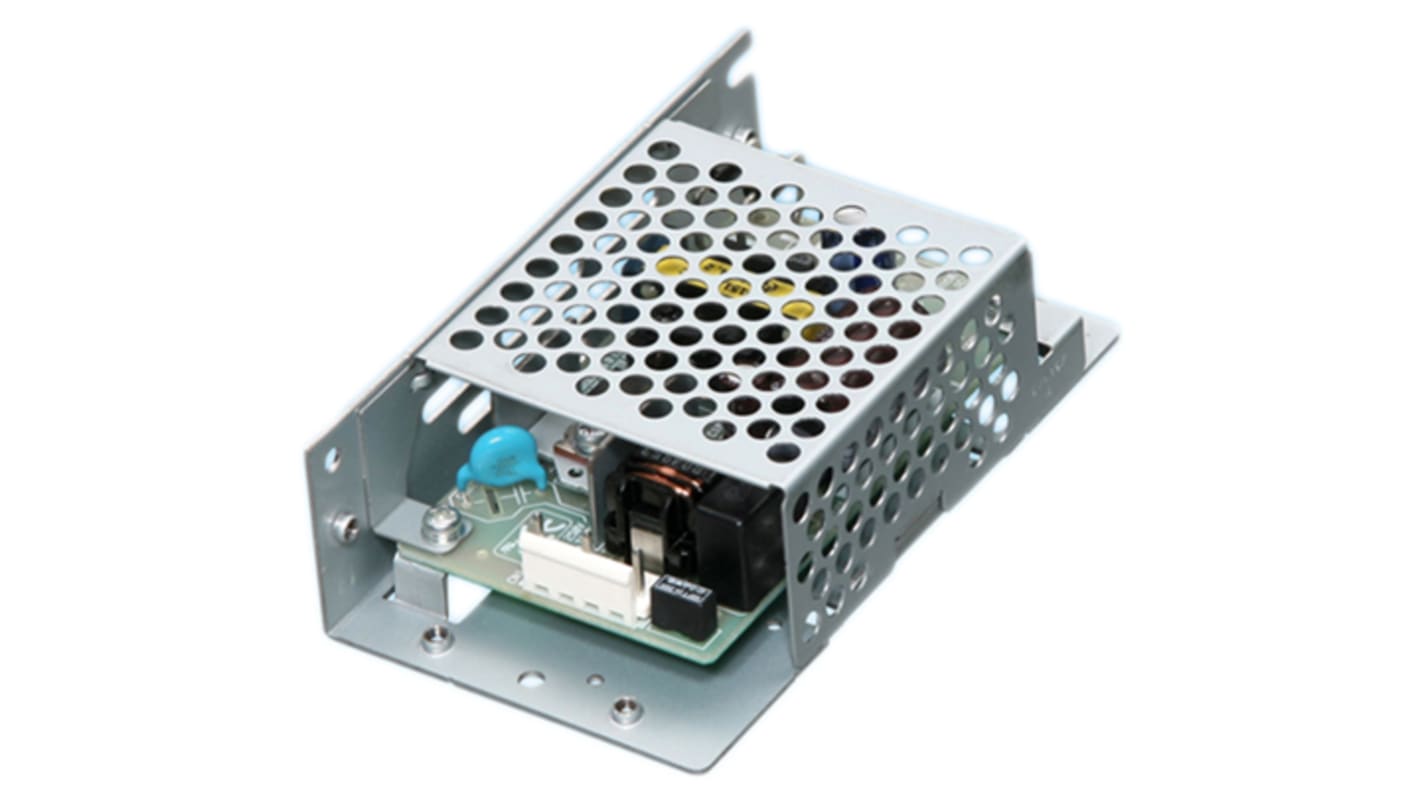

Cosel Switching Power Supply, LFA15F-5-SN 5V dc, 3A, 15 W, Input 85V ac to 264V ac

RS Stock No.:: 688-4810
Mfr. Part No.:: LFA15F-5-SN
Manufacturer:: Cosel

Cosel Switching Power Supply, LFA15F-5-SN 5V dc, 3A, 15 W, Input 85V ac to 264V ac

Bulk discount available

Subtotal (1 unit)*

SGD40.71

(exc. GST)

SGD44.37

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

53 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	SGD40.71
10 - 49	SGD39.49
50 +	SGD38.31

*price indicative

RS Stock No.:: 688-4810
Mfr. Part No.:: LFA15F-5-SN
Manufacturer:: Cosel

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Cosel
	Product Type	Switching Power Supply
	Maximum Output Voltage	5V dc
	Number of Outputs	1
	Mount Type	Chassis
	Power	15W
	Minimum Operating Temperature	-10°C
	SMPS Output Current	3A
	Maximum Operating Temperature	70°C
	Standards/Approvals	CE, RoHS, UL
	Length	107.5mm
	Depth	32mm
	Width	60mm
	Weight	80g
	Efficiency	76%
	Maximum Input Voltage	264V ac
	Series	LFA
	Output Current	3A
	Hazardous Area Certification	NO
	Minimum Input Voltage	85V ac

	Select all
	Brand Cosel
	Product Type Switching Power Supply
	Maximum Output Voltage 5V dc
	Number of Outputs 1
	Mount Type Chassis
	Power 15W
	Minimum Operating Temperature -10°C
	SMPS Output Current 3A
	Maximum Operating Temperature 70°C
	Standards/Approvals CE, RoHS, UL
	Length 107.5mm
	Depth 32mm
	Width 60mm
	Weight 80g
	Efficiency 76%
	Maximum Input Voltage 264V ac
	Series LFA
	Output Current 3A
	Hazardous Area Certification NO
	Minimum Input Voltage 85V ac

COO (Country of Origin):: JP

LFA Series, Single Output, 10 to 75 W

LFA switch mode power supplies (SMPS) from Cosel are incredibly compact, taking up 38% less volume than the LDA series. With a field failure rate of less than 0.01%, LFA switch mode power supplies are highly reliable at an affordable price. Featuring a universal input of 85 V ac to 264 V ac, LFA series SMPS are fully regulated and have a fully isolated input/output.

Features and Benefits:

Single output;Harmonic attenuator;Overcurrent, inrush current, and overvoltage protection circuits are built in;Convection cooling;Synchronous rectification enables high efficiency;Power factor correction for LFA50F to LFA300F models;LFA10F and LFA15F modules have a built-in reducing standby power circuit

Product Applications:

These switch mode power supplies are designed for use in applications where space is limited.

Note

Please handle the unit with care. Stress to the PCB (twisting or bending) can damage the integrity of the unit, and can cause it to become defective.
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations.

Standards

UL60950-1, cUL (CSA60950-1), EN60950-1, EN50178 TÜV and CE Approvals
Conductive noise complies with FCCB, VCCI-B, CISPR-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2
