TRACOPOWER Switching Power Supply, TMP 30112, 12V dc, 2.5A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 664-1420
- Mfr. Part No.:
- TMP 30112
- Manufacturer:
- TRACOPOWER
Temporarily out of stock - back order for despatch 02/05/2024, delivery within 4 working days from despatch date
Added
Price Each
SGD85.33
(exc. GST)
SGD93.01
(inc. GST)
| Units | Per unit |
| 1 - 9 | SGD85.33 |
| 10 - 49 | SGD83.54 |
| 50 + | SGD81.77 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 664-1420
- Mfr. Part No.:
- TMP 30112
- Manufacturer:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

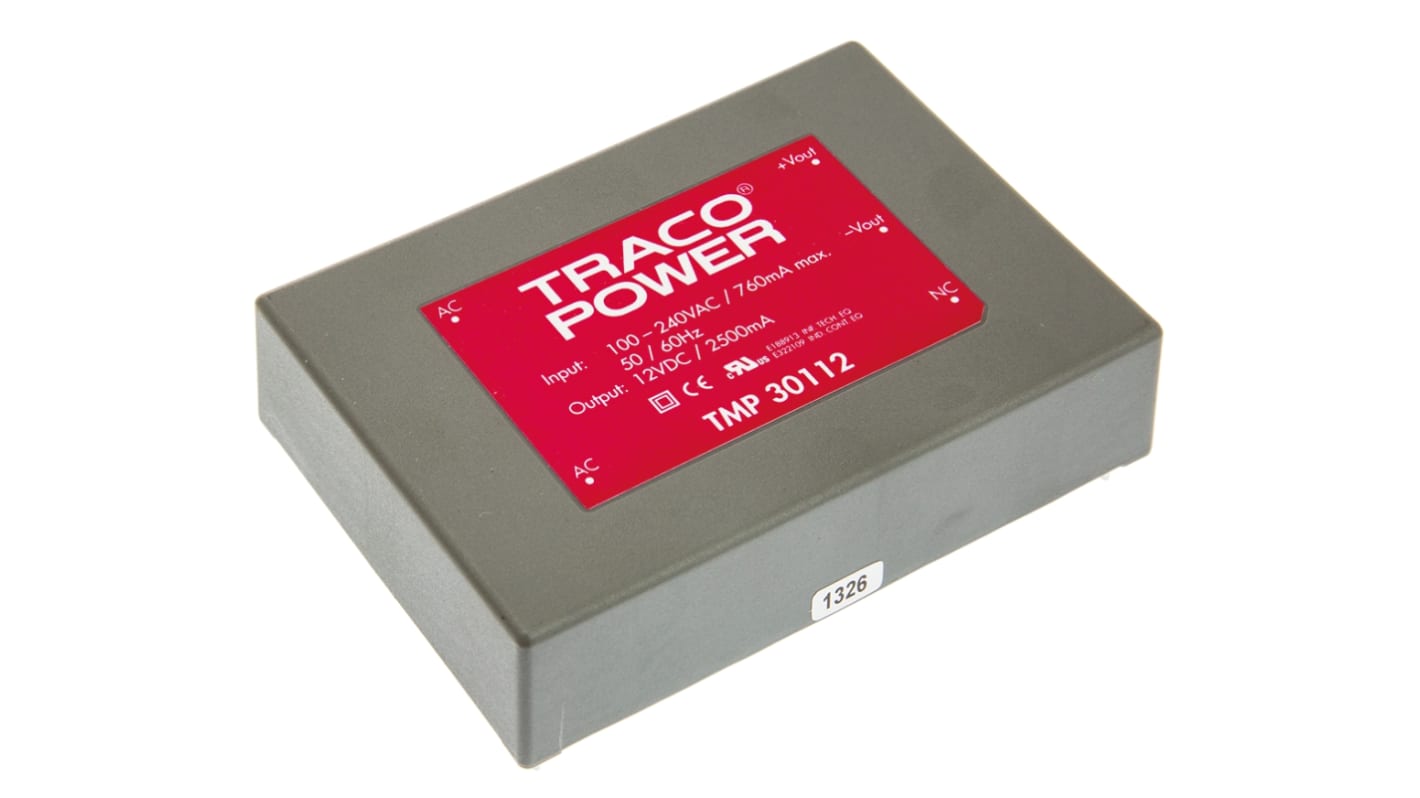

Traco Power Switching Power Supply, PCB Mount, 80% Efficiency - TMP Series - TMP 30112
Swap AC for DC in your circuit using this switching power supply from Traco Power. It adjusts a broad input voltage range between 120 and 370V DC (or 85 and 264V AC) to a safe output voltage of 12V DC. As the unit has an efficiency rating of 80%, you can rest assured there'll be minimal heat waste during the conversion process. This means you won't need to add a heat sink to your board, so it also helps to free up space. Mount the device in a pinch by soldering its built-in pins to your PCB.
Features & Benefits
• Start-up time of 400ms for rapid operation
• Power rating of 30W to withstand high-power systems
• MTBF of more than 250,000 hours for durable performance
• Fully encapsulated to prevent dust contamination
• Power rating of 30W to withstand high-power systems
• MTBF of more than 250,000 hours for durable performance
• Fully encapsulated to prevent dust contamination
Applications
• Computer peripherals
• Robotics and automation
• Security devices
• Medical technology
• Digital displays
• Robotics and automation
• Security devices
• Medical technology
• Digital displays
What protective features does this SMPS have?
This SMPS comes with protections against short circuits and current overload, keeping it safe from damage in the event of electrical faults. As it also features over-temperature protection, it stays stable when the heat is on.
Switch Mode - Traco, TMP and TMPM Series
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Output Current | 2.5A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 88.9mm |
| Width | 63.5mm |
| Depth | 21.5mm |
| Efficiency | 80% |
| Series | TMP |
| Maximum Temperature | +60°C |
| Weight | 211g |
| Minimum Temperature | -25°C |
