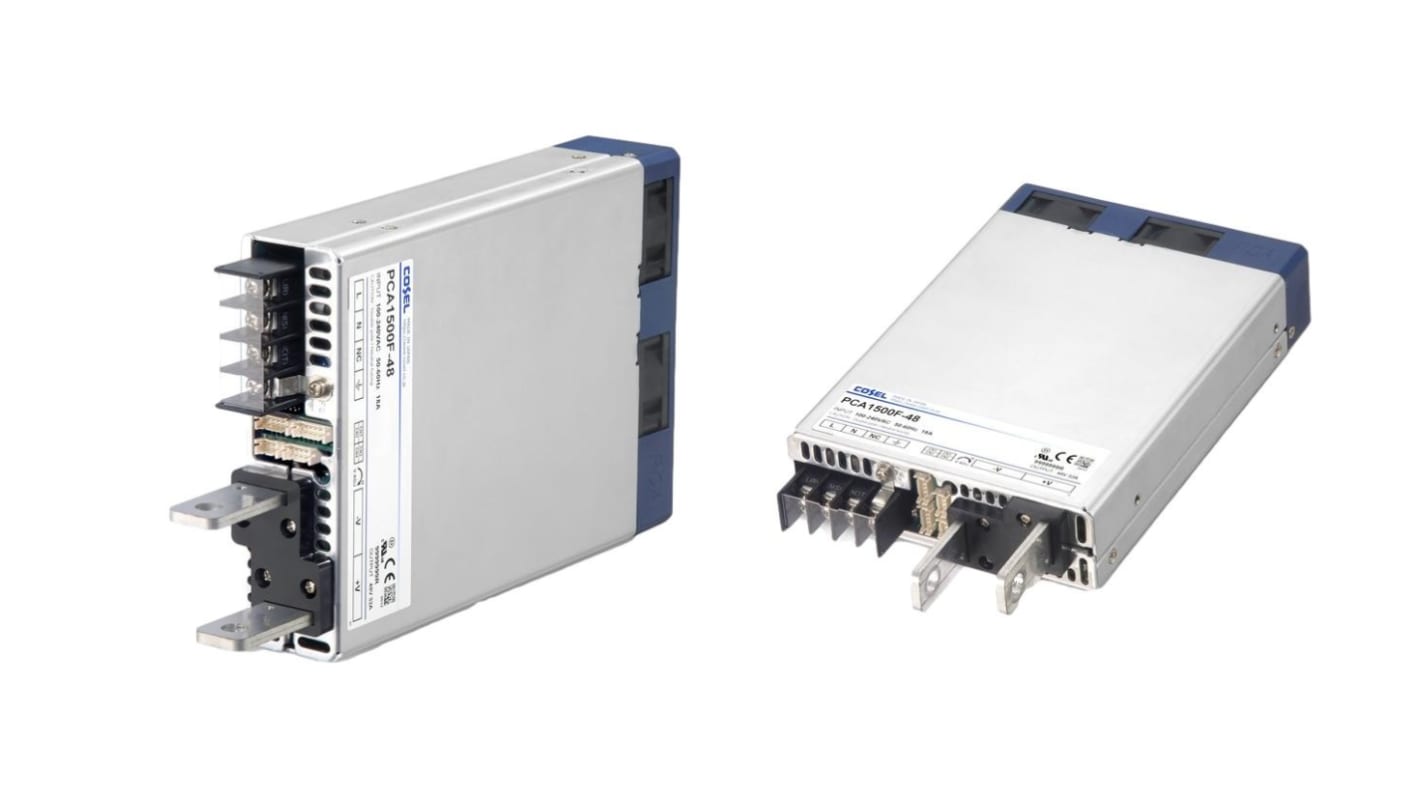

Cosel Embedded Switch Mode Power Supply, PCA1500F-32 32V, 52A, 1.66 kW, Input 85V ac to 370V
- RS Stock No.:
- 233-1442
- Mfr. Part No.:
- PCA1500F-32
- Manufacturer:
- Cosel
Subtotal (1 unit)*
SGD1,411.62
(exc. GST)
SGD1,538.67
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Stocked by manufacturer
- Ready to ship from 11 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD1,411.62 |
*price indicative
- RS Stock No.:
- 233-1442
- Mfr. Part No.:
- PCA1500F-32
- Manufacturer:
- Cosel
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | Embedded Switch Mode Power Supply | |
| Maximum Output Voltage | 32V | |
| Number of Outputs | 1 | |
| Mount Type | Through Hole | |
| Power | 1.66kW | |
| Minimum Operating Temperature | -20°C | |
| SMPS Output Current | 52A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, CE, cULus | |
| Weight | 840g | |
| Width | 89mm | |
| Depth | 152mm | |
| Efficiency | 91% | |
| Maximum Input Voltage | 370V | |
| Series | PCA | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 52A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type Embedded Switch Mode Power Supply | ||
Maximum Output Voltage 32V | ||
Number of Outputs 1 | ||
Mount Type Through Hole | ||
Power 1.66kW | ||
Minimum Operating Temperature -20°C | ||
SMPS Output Current 52A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, CE, cULus | ||
Weight 840g | ||
Width 89mm | ||
Depth 152mm | ||
Efficiency 91% | ||
Maximum Input Voltage 370V | ||
Series PCA | ||
Minimum Input Voltage 85V ac | ||
Output Current 52A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- JP
The Cosel embedded switch mode power supply has maximum output of wattage of 1.664 kW. The operating temperature range is between -20 to +70 ℃. The input voltage range is from 85 - 264 V and output voltage is 32 V.
For medical electric equipment
Medical Isolation Grade 2MOPP
Constant current function
Output voltage can be adjusted to near 0 V
With various alarms
Leakage Current < 0.5 mA
Low Noise Fan
Parallel Function
