TRACOPOWER Switching Power Supply, TXLN 035-22M2 2 Output 12V dc, 3A, 36 W, Input 88V ac to 264V ac

RS Stock No.:: 216-5876
Distrelec Article No.:: 302-25-027
Mfr. Part No.:: TXLN 035-22M2
Manufacturer:: TRACOPOWER

TRACOPOWER Switching Power Supply, TXLN 035-22M2 2 Output 12V dc, 3A, 36 W, Input 88V ac to 264V ac

Subtotal (1 unit)*

SGD72.56

(exc. GST)

SGD79.09

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

39 unit(s) ready to ship from another location
Plus 18 unit(s) shipping from 29 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD72.56

*price indicative

RS Stock No.:: 216-5876
Distrelec Article No.:: 302-25-027
Mfr. Part No.:: TXLN 035-22M2
Manufacturer:: TRACOPOWER

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Product Type	Switching Power Supply
	Maximum Output Voltage	12V dc
	Number of Outputs	2
	Mount Type	Chassis
	Power	36W
	SMPS Output Current	3A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Width	82mm
	Standards/Approvals	EN 61000-6-3, UL 62368-1, REACH, EN 55024, EN 55032 Class B, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1
	Weight	340g
	Depth	35mm
	Length	110.8mm
	Series	TXLN
	Maximum Input Voltage	264V ac
	Efficiency	83%
	Hazardous Area Certification	No
	Minimum Input Voltage	88V ac

	Select all
	Brand TRACOPOWER
	Product Type Switching Power Supply
	Maximum Output Voltage 12V dc
	Number of Outputs 2
	Mount Type Chassis
	Power 36W
	SMPS Output Current 3A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Width 82mm
	Standards/Approvals EN 61000-6-3, UL 62368-1, REACH, EN 55024, EN 55032 Class B, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1
	Weight 340g
	Depth 35mm
	Length 110.8mm
	Series TXLN
	Maximum Input Voltage 264V ac
	Efficiency 83%
	Hazardous Area Certification No
	Minimum Input Voltage 88V ac

RoHS Status: Exempt

COO (Country of Origin):: TW

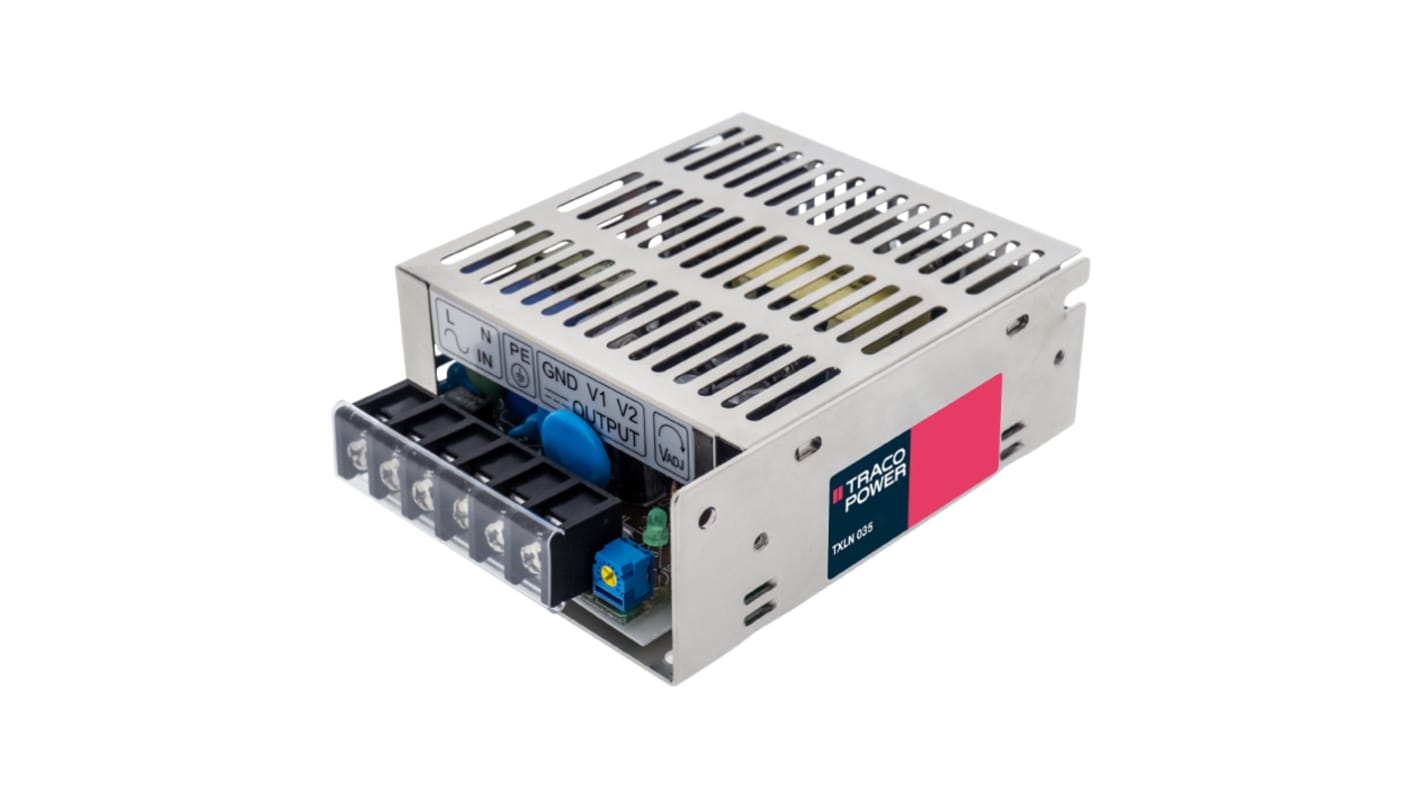

Traco Power TXLN Series Switching Power Supply, 88 to 264V AC Input Voltage - TXLN 035-22M2

This switching power supply from Traco Power is a versatile and reliable solution for a wide range of cost-critical applications. With an enclosed metal case and high efficiency up to 86%, it offers reliable performance and durability. The power supply is convection cooled, eliminating the need for a fan, and features short circuit, overvoltage, and overload protection for added safety.

Features & Benefits

• Compact metal case with screw terminal block for easy installation

• Universal input voltage range of 88 to 264 VAC

• High efficiency up to 86% ensures optimal performance

• Short circuit, overvoltage, and overload protection for safety

Applications

• Ideal for use in equipment with space constraints

• Can be used for applications requiring high reliability and efficiency

Can it accommodate various input voltages?

Yes, the switching power supply supports a universal input voltage range of 88 to 264 VAC.

Will it provide protection against short circuits?

The power supply features short circuit protection for added safety.

Is it suitable for cost-critical applications?

Yes, the Traco Power switching power supply is designed for a wide range of cost-critical applications.
