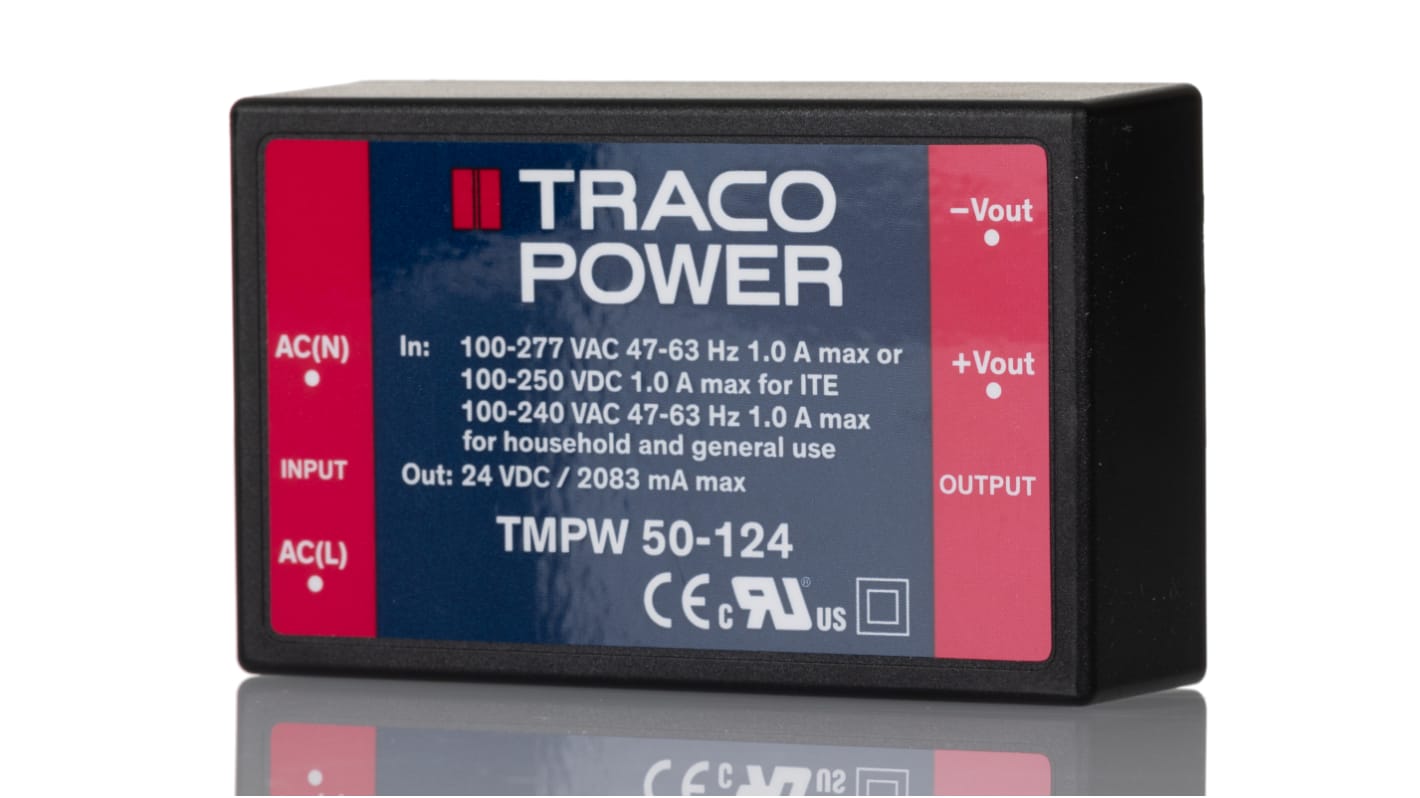

TRACOPOWER Switching Power Supply, TMPW 50-124, 24V dc, 2.08mA, 50W, Dual Output, 90 → 305V ac Input Voltage
- RS Stock No.:
- 211-0589
- Mfr. Part No.:
- TMPW 50-124
- Manufacturer:
- TRACOPOWER
41 In stock for delivery within 4 working days
Price Each
SGD47.23
(exc. GST)
SGD51.48
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 9 | SGD47.23 |
| 10 - 49 | SGD45.81 |
| 50 + | SGD44.42 |
- RS Stock No.:
- 211-0589
- Mfr. Part No.:
- TMPW 50-124
- Manufacturer:
- TRACOPOWER
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
Traco Power TMPW 50 Series Switching Power Supply, 90 to 305V AC Input Voltage - TMPW 50-124
This switching power supply from Traco Power is a compact and reliable solution designed for industrial and household technology applications. With a power rating of 50W and an extended input range of 90 to 305V AC, this power supply offers high efficiency and versatile performance.
Features & Benefits
• Compact PCB power module in a 2.92 x 1.85 in package
• Input voltage range of 90 to 305V AC for flexible use
• Certified according to EN 60335-1 and IEC/EN/UL 62368-1 for safety
• High efficiency up to 89% for optimal power consumption
• I/O-isolation voltage of 4000V AC for safe operation
• Input voltage range of 90 to 305V AC for flexible use
• Certified according to EN 60335-1 and IEC/EN/UL 62368-1 for safety
• High efficiency up to 89% for optimal power consumption
• I/O-isolation voltage of 4000V AC for safe operation
Applications
• Suitable for industrial and household technology applications
Can it handle a wide input voltage range?
Yes, it operates with an input range of 90 to 305V AC.
Will it ensure safety for various applications?
Yes, it is certified according to EN 60335-1 and IEC/EN/UL 62368-1.
Is it suitable for compact design requirements?
Yes, it comes in a compact encapsulated plastic case for space-saving solutions.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 2.08mA |
| Power Rating | 50W |
| Number of Outputs | 2 |
| Input Voltage | 90 → 305V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 74.2mm |
| Width | 47mm |
| Medical Approved | No |
| Depth | 23.1mm |
| Series | TMPW 50 |
| Efficiency | 88% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -40°C |
| Weight | 158g |
