TRACOPOWER Switching Power Supply, TPP 15-124-J, 24V dc, 625mA, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V
- RS Stock No.:
- 177-0158
- Mfr. Part No.:
- TPP 15-124-J
- Manufacturer:
- TRACOPOWER
89 In stock for delivery within 5 working days
Price Each
SGD54.84
(exc. GST)
SGD59.78
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 9 | SGD54.84 |
| 10 - 49 | SGD53.69 |
| 50 + | SGD52.56 |
- RS Stock No.:
- 177-0158
- Mfr. Part No.:
- TPP 15-124-J
- Manufacturer:
- TRACOPOWER
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

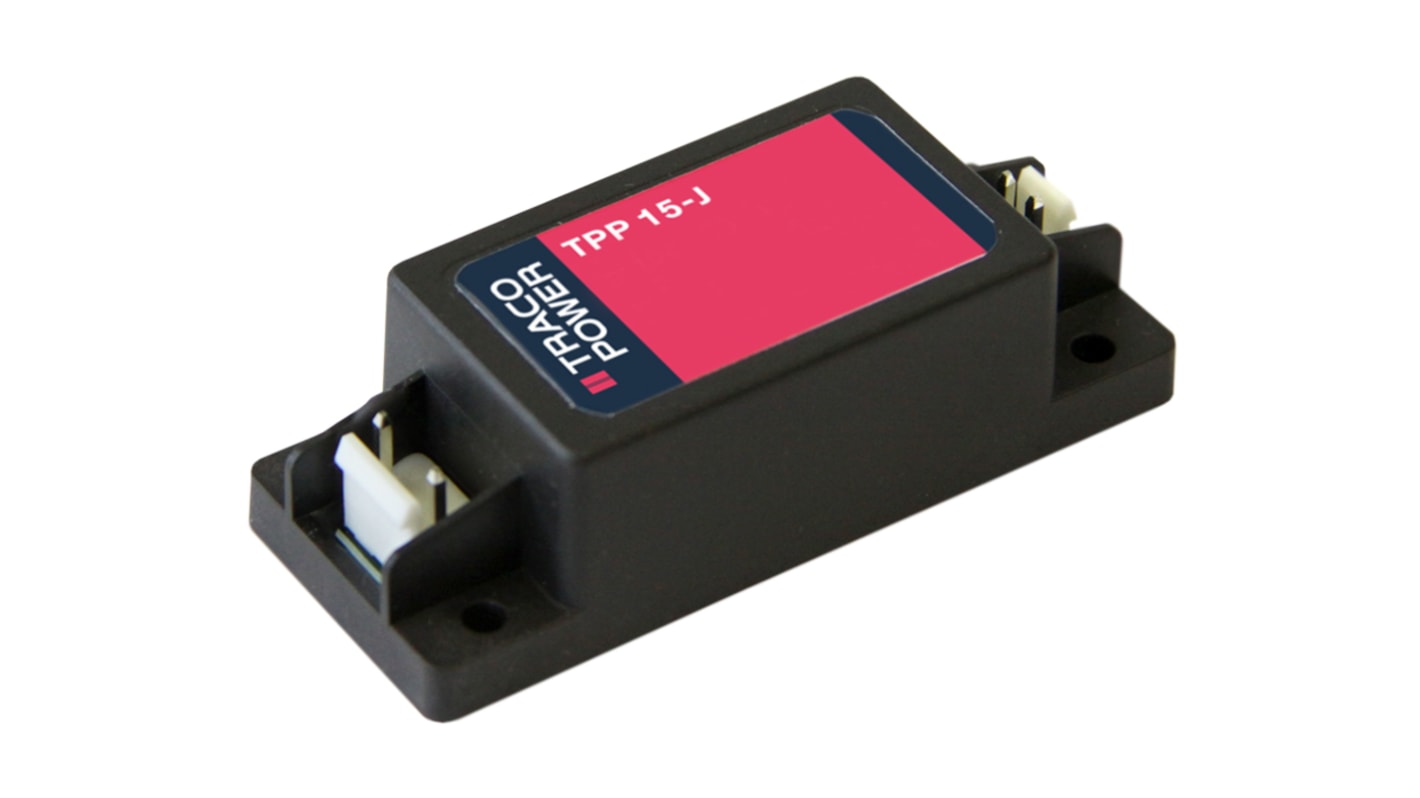

TRACOPOWER Switching Power Supply, 15W Power Rating, Screw Mount - TPP 15-124-J
This switching power supply by TRACOPOWER is a compact and highly efficient solution for various applications. With its medical-grade certification, it ensures safety and reliability in sensitive environments. The enclosed design, with a power rating of 15W and an output voltage of 24V DC, makes it ideal for use in a wide range of settings.
Features & Benefits
• High power density with encapsulated design
• Certification according to IEC/EN/ES 60601-1 for medical safety standards
• Low leakage current below 75 μA for BF applications
• Efficient operation with up to 88.5% efficiency
• Compact size with dimensions of 71.7mm x 28.9mm x 20.9mm
• Easy screw mount installation
• Certification according to IEC/EN/ES 60601-1 for medical safety standards
• Low leakage current below 75 μA for BF applications
• Efficient operation with up to 88.5% efficiency
• Compact size with dimensions of 71.7mm x 28.9mm x 20.9mm
• Easy screw mount installation
Applications
• Medical equipment
• Industrial automation systems
• Electronic devices
• Laboratory instruments
• Industrial automation systems
• Electronic devices
• Laboratory instruments
Can this switching power supply be used in medical applications?
Yes, this power supply is certified according to medical safety standards and is suitable for medical equipment.
Will it be able to operate in high-temperature environments?
Yes, with a maximum temperature of +85°C, this power supply can handle challenging temperature conditions.
Is it easy to install?
Yes, the screw mount design allows for easy installation in various setups.
Can this power supply be used with other electronic devices?
Yes, it is suitable for a wide range of electronic applications due to its compact design and reliable performance.
Is there any specific maintenance required for this power supply?
No, this power supply is designed for long-term reliability without the need for regular maintenance.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 625mA |
| Power Rating | 15W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 71.7mm |
| Width | 28.9mm |
| Medical Approved | Yes |
| Depth | 20.9mm |
| Efficiency | 88% |
| Series | TPP 15 |
| Minimum Temperature | -40°C |
| Weight | 48g |
| Maximum Temperature | +85°C |
