Slim and Low profile (33mm)
Fanless design, 500W convection
Withstand 300VAC surge input for 5 seconds
Build-in active PFC function
150% peak load capability(100ms)
-20∼+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function (option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
LED display application

AC-DC Slim Single output enclosed power supply with PFC, Output 5VDC at 80A, DC OK signal

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Note

Available on EPLAN.

Units	Per unit
1 - 9	SGD170.83
10 - 49	SGD167.26
50 +	SGD162.25

Select all	Attribute	Value
	Brand	MEAN WELL
	Output Voltage	5V dc
	Output Current	80A
	Power Rating	400W
	Number of Outputs	1
	Input Voltage	127 → 370 V dc, 90 → 264 V ac
	Mounting Type	Chassis Mount
	Package Type	Enclosed
	Length	232mm
	Width	81mm
	Depth	31mm
	Efficiency	90%
	Minimum Temperature	-20°C
	Maximum Temperature	+70°C
	Weight	905g

	Select all
	Brand MEAN WELL
	Output Voltage 5V dc
	Output Current 80A
	Power Rating 400W
	Number of Outputs 1
	Input Voltage 127 → 370 V dc, 90 → 264 V ac
	Mounting Type Chassis Mount
	Package Type Enclosed
	Length 232mm
	Width 81mm
	Depth 31mm
	Efficiency 90%
	Minimum Temperature -20°C
	Maximum Temperature +70°C
	Weight 905g

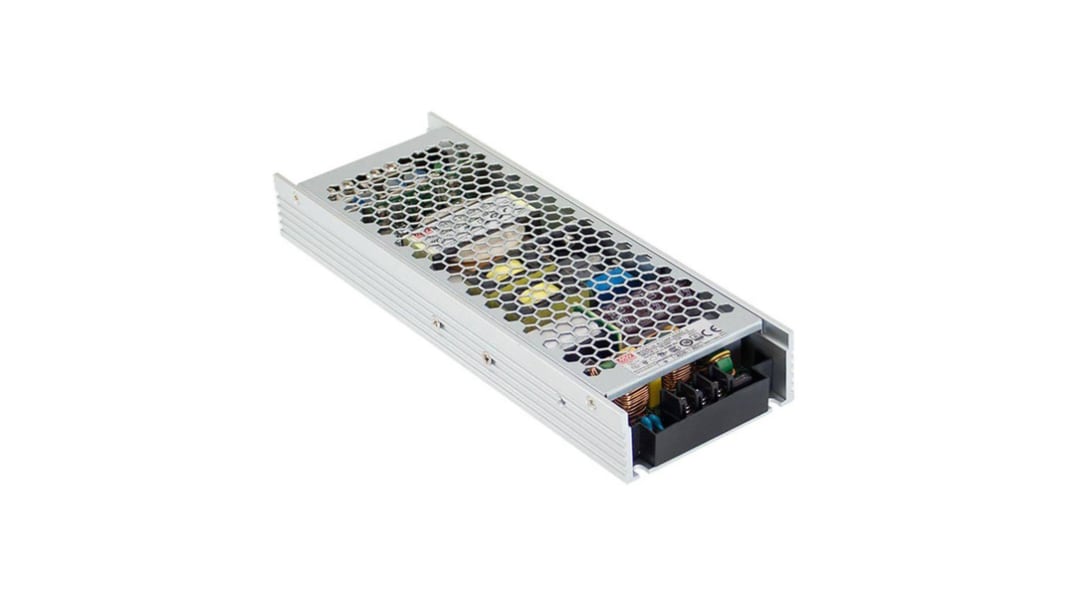

MEAN WELL Switching Power Supply, UHP-500R-5, 5V dc, 80A, 400W, 1 Output, 127 → 370 V dc, 90 → 264 V ac
