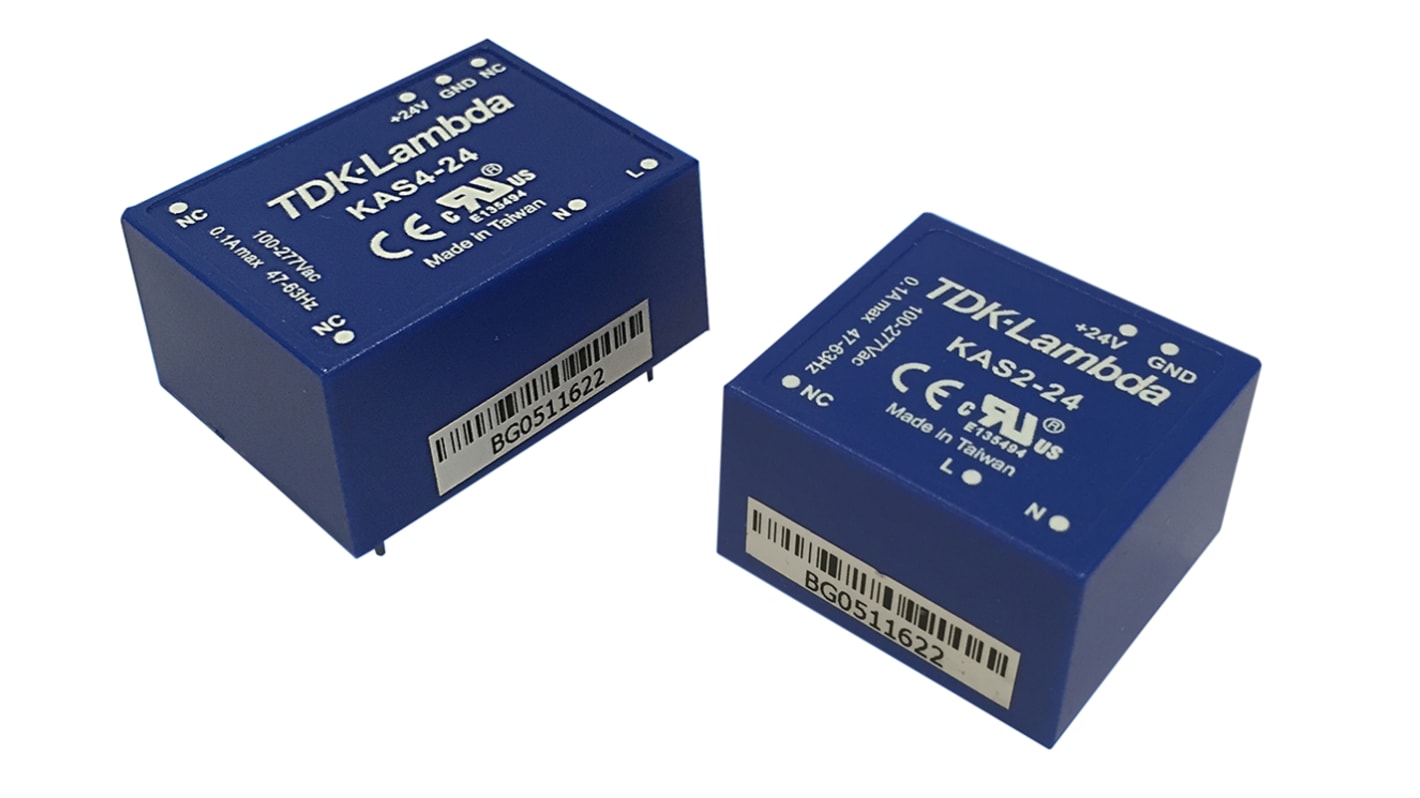

Designed to meet the household requirements of 60335-1 the KAS series with its wide operating temperature range up to 80°C, and start-up temperature of -40°C, is suitable for both domestic and industrial applications. The encapsulated board mounted power supplies do not need a ground connection and are available in 2W or 4W power levels. The KAS series provide an off-load power consumption less than 0.3W and Class B EMC performance.

90 - 305VAC Input Voltage.
Global Use
Class II (No ground needed)
Easy Rapid On-Board Integration
Wide Temperature Range (-40 to +80°C)
Use in a Range of Professional Industrial Applications
Low off-load Power Consumption.
Friendly Environmental Footprint

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Units	Per unit
1 - 9	SGD32.46
10 - 49	SGD31.17
50 +	SGD29.88

Select all	Attribute	Value
	Manufacturer	TDK-Lambda
	Output Voltage	12V dc
	Output Current	330mA
	Power Rating	4W
	Number of Outputs	1
	Input Voltage	120 → 430 V dc, 90 → 305 V ac
	Mounting Type	PCB Mount
	Package Type	Enclosed
	Length	37mm
	Width	27.5mm
	Depth	17.5mm
	Efficiency	76%
	Minimum Temperature	-40°C
	Maximum Temperature	+70°C
	Weight	26g
	Energy Efficiency Level	II

	Select all
	Manufacturer TDK-Lambda
	Output Voltage 12V dc
	Output Current 330mA
	Power Rating 4W
	Number of Outputs 1
	Input Voltage 120 → 430 V dc, 90 → 305 V ac
	Mounting Type PCB Mount
	Package Type Enclosed
	Length 37mm
	Width 27.5mm
	Depth 17.5mm
	Efficiency 76%
	Minimum Temperature -40°C
	Maximum Temperature +70°C
	Weight 26g
	Energy Efficiency Level II

TDK-Lambda Switching Power Supply, KAS4-12, 12V dc, 330mA, 4W, 1 Output, 120 → 430 V dc, 90 → 305 V ac
