Recom Switching Power Supply, RAC04-24SGB, 24V dc, 170mA, 4W, 1 Output, 305 V ac, 430 V dc Input Voltage

The concept of distributed power architecture the combination of a centralized switching power supply with many local “on board” converter modules enables developers to come up with much more flexible and efficient designs. Today, “off-the-shelf” modules are available for virtually any application in the industrial controls, power generation, medical, aerospace, and transport markets.

1 to 60 Watts
Regulated outputs
Single, dual and multiple outputs
Low output ripple & noise
Short circuit protection
Built-in Class B filter
Ultra compact size
Optional flying wires (/W)
RoHS compliant
ErP compliant (<0.5W in standby)
CE marked
Warranty up to 5 years

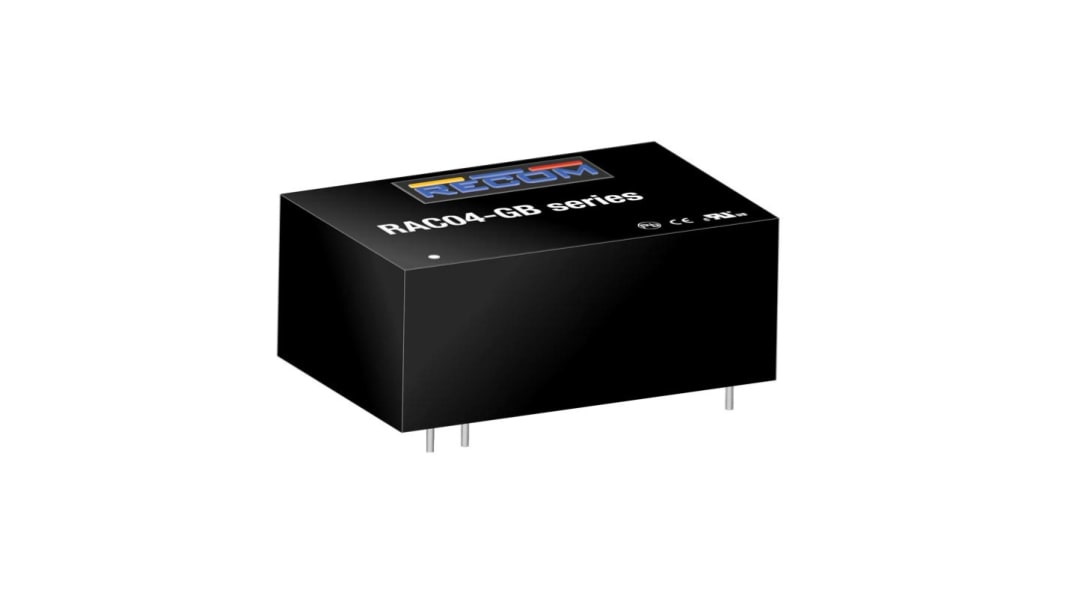

The RAC04-GB series are low cost AC/DC power supplies, ideal for PCB mounted, compact, board level industrial applications. They feature universal AC input voltage range, regulated and short-circuit-proof isolated DC outputs, low standby power consumption and -40°C to +70°C operating temperature range. The RAC04-GB have a built-in Class B / FCC Part 15 EMC filter, are certified to EN60950 and EN62368 safety standards and come with a three year warranty.

Universal Input 85-305VAC
4W PCB Mount Package
<75mW No Load Power Consumption
Ultra Low Profile, Compact Size
-40°C to +70°C Operating Temperature
Continuous SCP, OCP, OVP
EN60950, UL60950 & CE Certified, EN55032 Class B
