Recom Switching Power Supply, RAC05-05SK, 5V dc, 1A, 5W, 1 Output, 115 → 370 V dc, 80 → 264 V ac Input

The concept of distributed power architecture the combination of a centralized switching power supply with many local “on board” converter modules enables developers to come up with much more flexible and efficient designs. Today, “off-the-shelf” modules are available for virtually any application in the industrial controls, power generation, medical, aerospace, and transport markets.

1 to 60 Watts
Regulated outputs
Single, dual and multiple outputs
Low output ripple & noise
Short circuit protection
Built-in Class B filter
Ultra compact size
Optional flying wires (/W)
RoHS compliant
ErP compliant (<0.5W in standby)
CE marked
Warranty up to 5 years

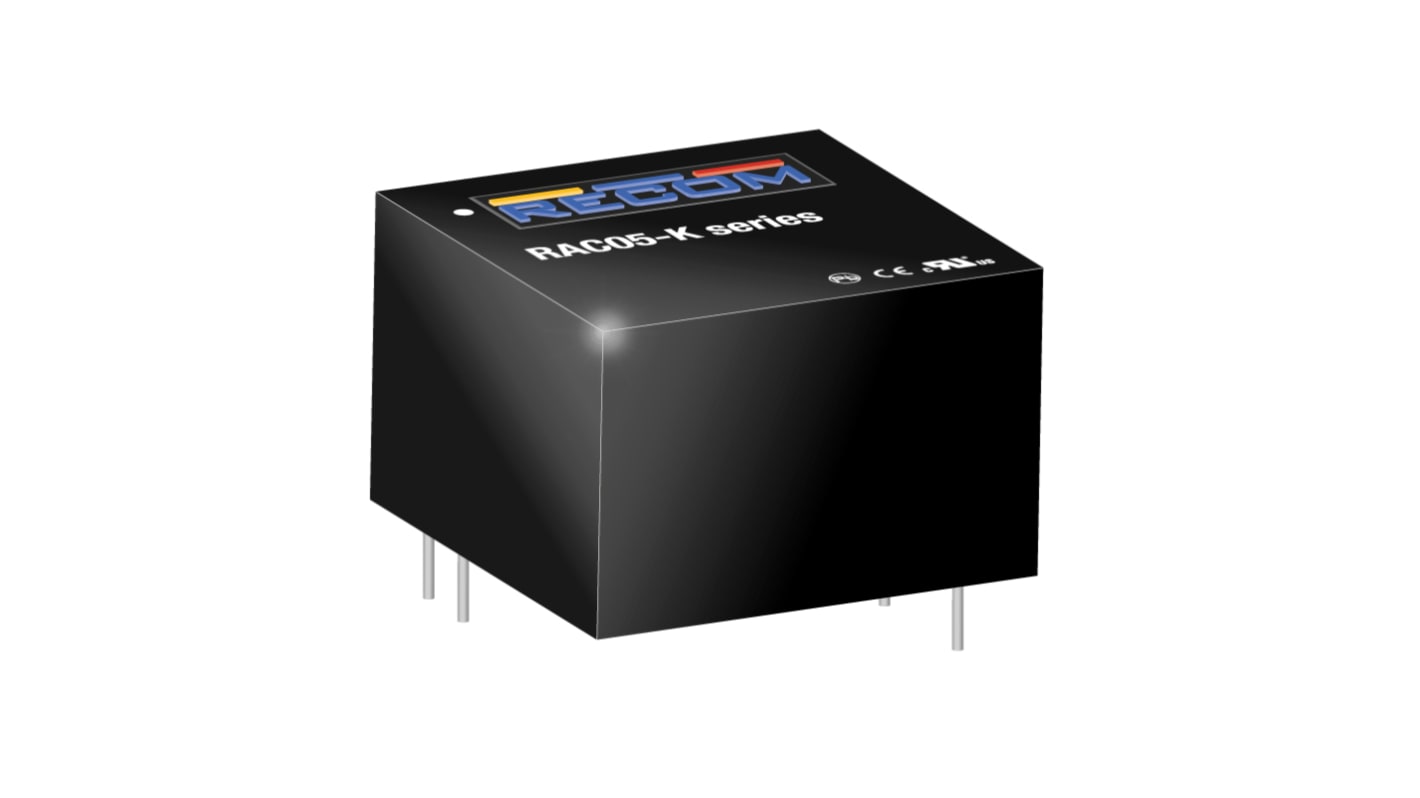

The RAC05-K series comprises ultra compact AC/DC power supply modules in lightweight fully encapsulated plastic casing for PCB mount. Beside the safety approvals for industrial and IT solutions, they are also certified to UL60950-1 and UL62368-1.

5W In Compact 1" x 1" Package (High Power Density)
Internal EMC Class B Filter
UL/IEC/EN60950-1 certified
UL/IEC/EN62368-1 certified
Electrical Protection
Operating Temperature Range: -25°C to +50°C @ Full Load
