XP Power, GCS350PS15 Switching Power Supply 15V dc, 350 W 264V ac
- RS Stock No.:
- 122-7642
- Mfr. Part No.:
- GCS350PS15
- Manufacturer:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 122-7642
- Mfr. Part No.:
- GCS350PS15
- Manufacturer:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 15V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 350W | |
| SMPS Output Current | 23.4A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 127mm | |
| Depth | 36.3mm | |
| Standards/Approvals | UL 60950-1 (2007), RoHS, LVD, IEC 60950-1:2005 Ed 2, IEC 60601-1 Ed 3, EN 60950-1, EN 60601-1/A12, CSA 22.2 No.60950-1-1:08, ANSI/AAMI ES 60601-1:2005 & CSA C22.2 | |
| Width | 76.2mm | |
| Weight | 290g | |
| Series | GCS | |
| Efficiency | 93% | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 23.4A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 15V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 350W | ||
SMPS Output Current 23.4A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 127mm | ||
Depth 36.3mm | ||
Standards/Approvals UL 60950-1 (2007), RoHS, LVD, IEC 60950-1:2005 Ed 2, IEC 60601-1 Ed 3, EN 60950-1, EN 60601-1/A12, CSA 22.2 No.60950-1-1:08, ANSI/AAMI ES 60601-1:2005 & CSA C22.2 | ||
Width 76.2mm | ||
Weight 290g | ||
Series GCS | ||
Efficiency 93% | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Output Current 23.4A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN

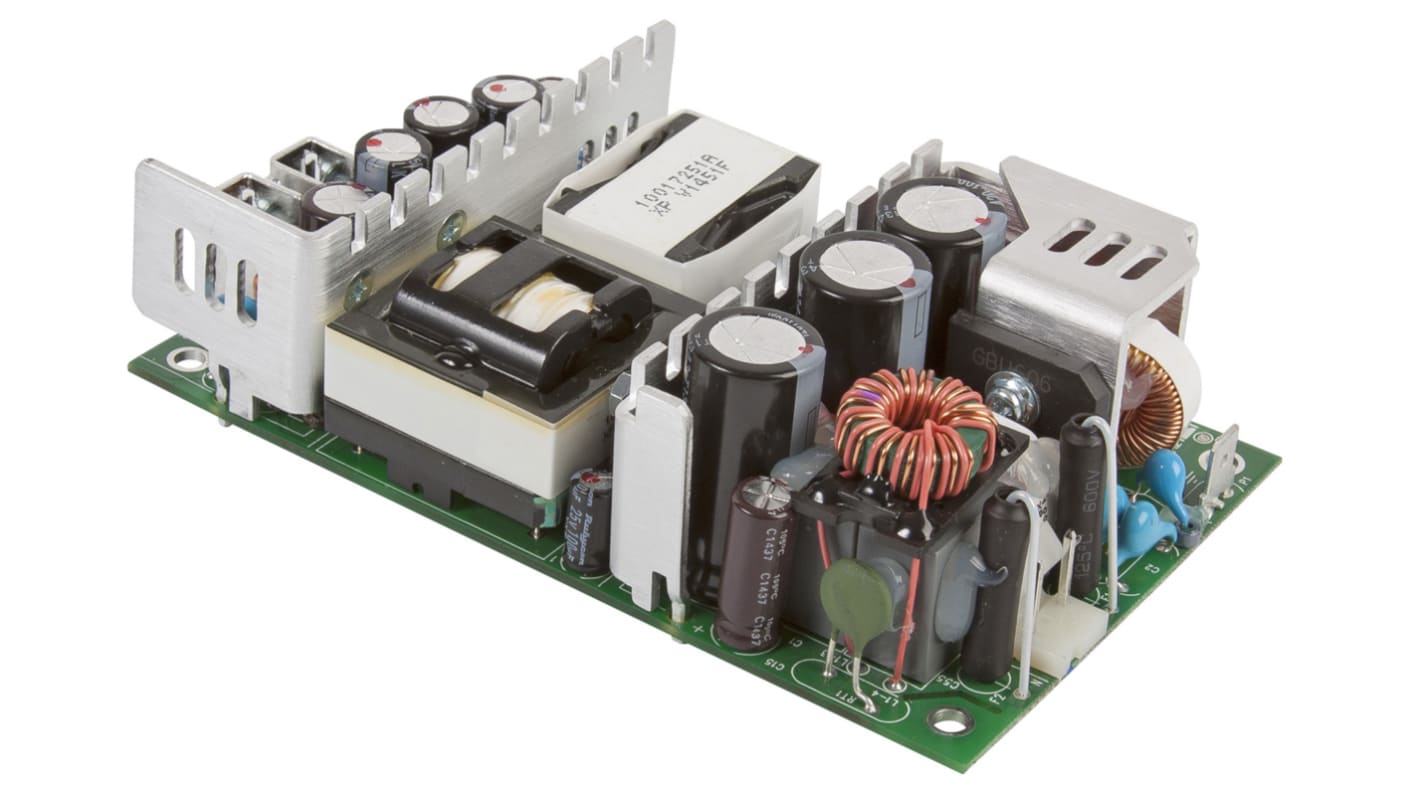

XP Power - GCS Series Switch Mode Power Supply
XP Power GCS series of switch mode power supplies provides the user with a unit designed to minimise no load power consumption and maximise efficiency. The result of this design, is to ensure equipment installations adhere to latest environmental legislation. This range of single output AC-DC power supplies are packaged in an industry standard 3 x 5 x 1.42" package, and achieves EN55011/22 level B emissions compliance.
The GCS series has been designed with 1U and other industrial, IT & medical applications.
Features and Benefits
Convection / force-cooled ratings.
Class I & II IT & medical safety approvals.
Remote on/off functionality.
Class B emissions.
