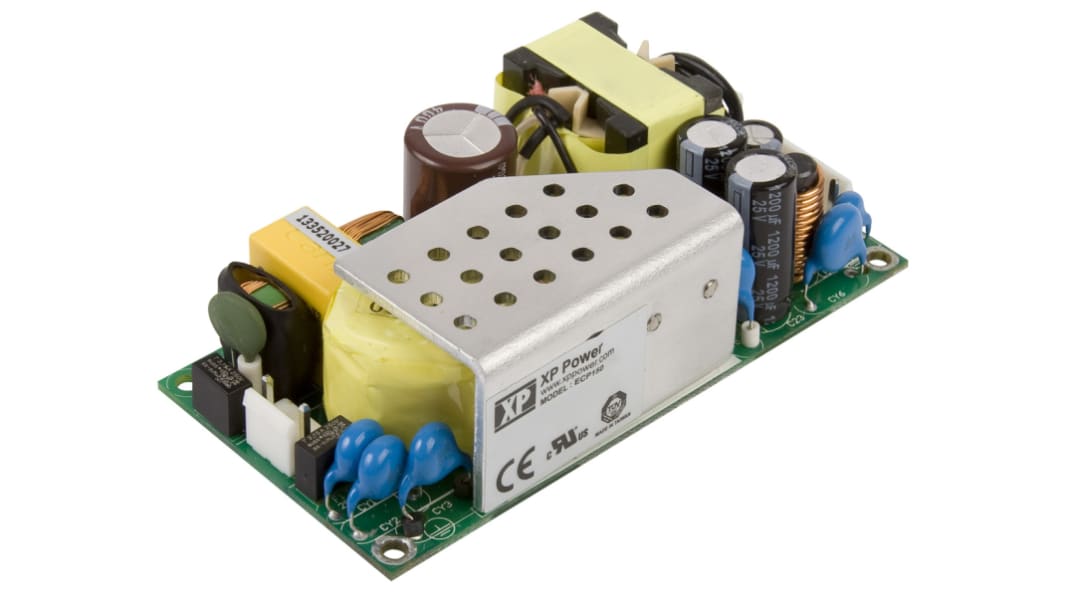

Name: XP Power Switching Power Supply, ECP150PS28, 28V dc, 5.4A, 150W, 1 Output, 120 → 370 V dc, 90 → 264 V ac
Brand: XP Power
SKU: 122-7594
Price: 153.12 SGD
Availability: InStock

XP Power - ECP150 Series Switch Mode Power Supply

XP Power ECP150 series of 150 W power supply provides the user with a low cost PCB mount power solution to a wide variety of applications. The ECP150 series offers an output voltage of 5 to 15 V, with a very low load input power of <0.3 W. The series has been designed to adhere to the latest environmental legislation.

The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.

Features and Benefits

2" x 4" footprint.
100 W convection cooled, 150 W forced cooled.
<0.5 W no load input power.
12 V to 48 V single output.
Integral fan supply.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Switch Mode - XP Power

Units	Per unit
1 - 9	SGD140.48
10 - 49	SGD137.54
50 +	SGD133.41

Select all	Attribute	Value
	Brand	XP Power
	Output Voltage	28V dc
	Output Current	5.4A
	Power Rating	150W
	Number of Outputs	1
	Input Voltage	120 → 370 V dc, 90 → 264 V ac
	Mounting Type	Chassis Mount
	Package Type	Open Frame
	Length	101.6mm
	Width	50.8mm
	Medical Approved	Yes
	Depth	29.5mm
	Maximum Temperature	+70°C
	Weight	190g
	Minimum Temperature	-20°C

	Select all
	Brand XP Power
	Output Voltage 28V dc
	Output Current 5.4A
	Power Rating 150W
	Number of Outputs 1
	Input Voltage 120 → 370 V dc, 90 → 264 V ac
	Mounting Type Chassis Mount
	Package Type Open Frame
	Length 101.6mm
	Width 50.8mm
	Medical Approved Yes
	Depth 29.5mm
	Maximum Temperature +70°C
	Weight 190g
	Minimum Temperature -20°C

XP Power Switching Power Supply, ECP150PS28, 28V dc, 5.4A, 150W, 1 Output, 120 → 370 V dc, 90 → 264 V ac
