SMC Solenoid Valve VX3114-01F-3DR1, 3 port(s) , Common, 110 V ac, 1/8in
- RS Stock No.:
- 168-187
- Mfr. Part No.:
- VX3114-01F-3DR1
- Manufacturer:
- SMC
Temporarily out of stock - back order for despatch 20/08/2024, delivery within 5 working days from despatch date
Price Each
SGD92.63
(exc. GST)
SGD100.97
(inc. GST)
| Units | Per unit |
| 1 - 5 | SGD92.63 |
| 6 + | SGD90.69 |
- RS Stock No.:
- 168-187
- Mfr. Part No.:
- VX3114-01F-3DR1
- Manufacturer:
- SMC
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- FR
Product Details

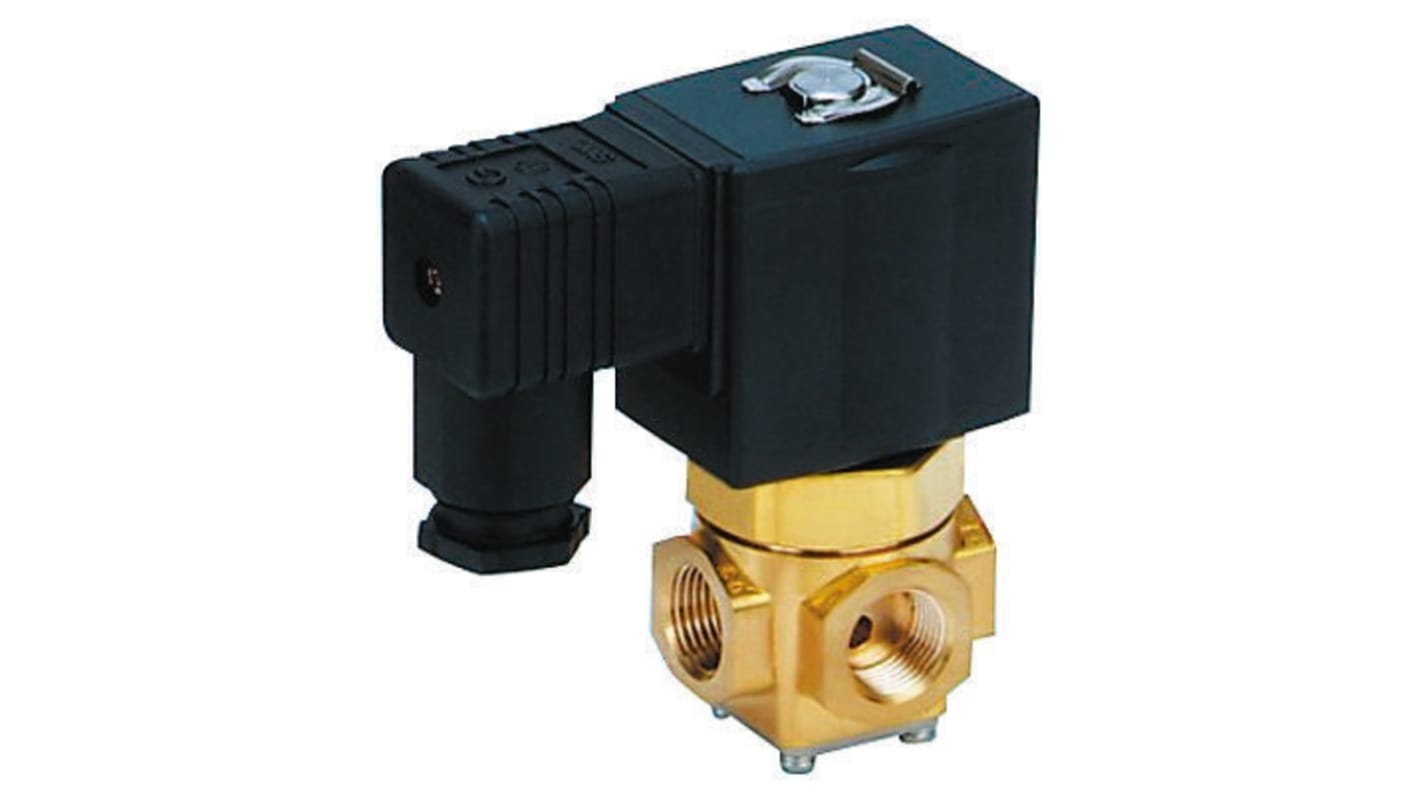

VX3 Direct Acting Three Port Solenoid Valve
The SMC VX3000 series is a direct acting, 3 port solenoid valve. Suited to various applications such as air, oil, water and steam. Valves are easily replaced without changing existing piping.
DIN electrical connection
Class B & Class H coil available
Compact & lightweight
Long life
IP65 coil cnclosure
Can be fitted with NBR, FKM or EPDM seals
Class B & Class H coil available
Compact & lightweight
Long life
IP65 coil cnclosure
Can be fitted with NBR, FKM or EPDM seals
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 110 V ac |
| Number of Ports | 3 |
| Connection Size | 1/8in |
| Connection | 1/8 in G Female |
| Operation | Direct |
| Default Valve Position | Common |
| Suitable Applications | Water |
| Type | 3/2 |
| Orifice Diameter | 1.5mm |
| Body Material | Brass |
| Series | VX31 |
| Maximum Working Pressure | 1 MPa |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Connection Gender | Female |
| Minimum Operating Temperature | -20°C |
| Thread Standard or Connection Type | G |
