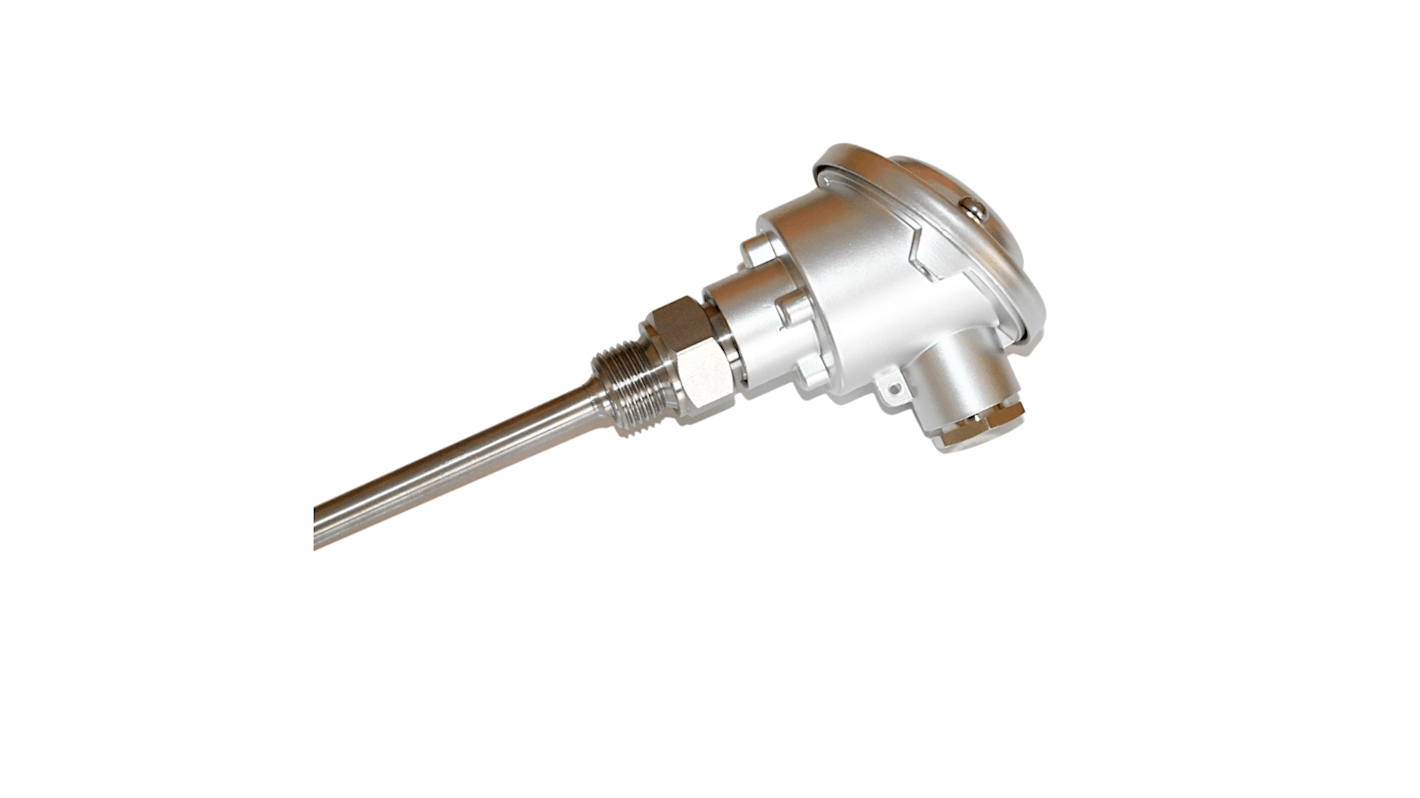

Electrotherm PT100 RTD Sensor 9 mm Dia, 150 mm Long, 3 Wire, F0.3 200 °C Max IP54
- RS Stock No.:
- 274-0201
- Mfr. Part No.:
- 372-0/10-E-3LS-150-G1/2-2
- Manufacturer:
- Electrotherm
Subtotal (1 unit)*
SGD319.87
(exc. GST)
SGD348.66
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Stocked by manufacturer
- Ready to ship from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD319.87 |
*price indicative
- RS Stock No.:
- 274-0201
- Mfr. Part No.:
- 372-0/10-E-3LS-150-G1/2-2
- Manufacturer:
- Electrotherm
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electrotherm | |
| Sensor Type | PT100 | |
| Product Type | RTD Sensor | |
| Probe Length | 150mm | |
| Probe Diameter | 9mm | |
| Minimum Temperature Sensed | 0°C | |
| Maximum Temperature Sensed | 200°C | |
| Termination Type | G 1/2 A | |
| Probe Material | 316Ti Stainless Steel | |
| Hazardous Area Certification | IP54 | |
| Number of Wires | 3 | |
| Accuracy | F0.3 | |
| Select all | ||
|---|---|---|
Brand Electrotherm | ||
Sensor Type PT100 | ||
Product Type RTD Sensor | ||
Probe Length 150mm | ||
Probe Diameter 9mm | ||
Minimum Temperature Sensed 0°C | ||
Maximum Temperature Sensed 200°C | ||
Termination Type G 1/2 A | ||
Probe Material 316Ti Stainless Steel | ||
Hazardous Area Certification IP54 | ||
Number of Wires 3 | ||
Accuracy F0.3 | ||
- COO (Country of Origin):
- DE
Fluke RTD Sensor, F0.3 Accuracy, 150mm Probe Length - 372-0/10-E-3LS-150-G1/2-2
This RTD sensor is a screw-in resistance thermometer designed for process measurement in pipes and vessels, combining a PT100 sensing element with an integrated transmitter to deliver analogue outputs for control systems. It operates within a 0–200°C measuring span and is suitable for industrial environments requiring a protected, exchangeable sensing insert.
Features & Benefits
• F0.3 accuracy provides precise temperature readings for instrumentation
• 3-wire connection reduces lead-resistance errors in measurements
• Calibrated transmitter ensures traceable output for control loops
• IP54 enclosure rating protects electronics against dust and splash
• 316Ti stainless-steel sheath resists corrosion in process media
• G1/2A threaded termination allows straightforward screw-in mounting
• 3-wire connection reduces lead-resistance errors in measurements
• Calibrated transmitter ensures traceable output for control loops
• IP54 enclosure rating protects electronics against dust and splash
• 316Ti stainless-steel sheath resists corrosion in process media
• G1/2A threaded termination allows straightforward screw-in mounting
**Applications**
• Suitable for pipeline temperature monitoring in process plants
• Ideal for integration with PLCs and DCS via 4–20 mA or 0–10V outputs
• Used for Vessel level and temperature control in chemical processing
• Can be used for temperature feedback in heating systems and exchangers
• Ideal for integration with PLCs and DCS via 4–20 mA or 0–10V outputs
• Used for Vessel level and temperature control in chemical processing
• Can be used for temperature feedback in heating systems and exchangers
What output signals are available for connection to control equipment?
The built-in transmitter provides selectable analogue outputs of 4–20 mA or 0–10V to Interface with standard automation inputs.
How is the sensing element configured electrically?
The sensing element is a single Pt100 arranged for three-wire connection to compensate for lead resistance during measurement.
What sheath material suits corrosive environments?
The probe uses a 316Ti stainless-steel protective tube chosen for improved resistance in many process media.
How does the product accommodate different installation depths?
The design uses an exchangeable measuring insert, allowing the probe to be replaced or serviced without removing the mounting thread.
What probe form factor should be expected for Compact installations?
The sensing probe presents a 9mm diameter profile, enabling insertion into confined ports and thermowells.
