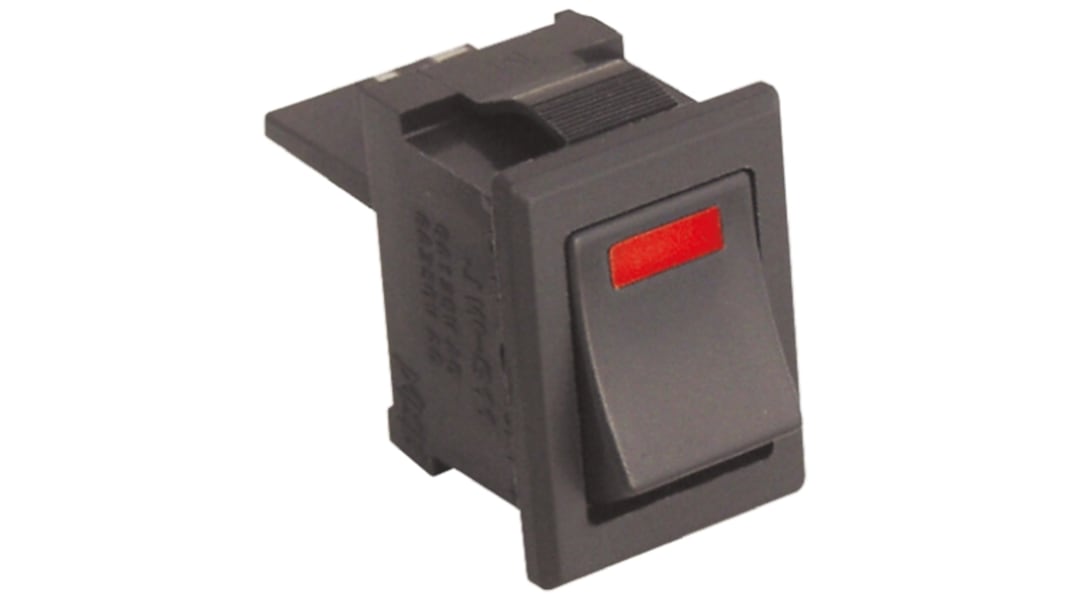

NKK Switches Illuminated Single Pole Single Throw (SPST), On-None-Off Rocker Switch Panel Mount

  • RS Stock No. 428-9156
  • Mfr. Part No. JW-S11RKKR
  • Manufacturer NKK Switches
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Rocker switch JW series
(low capacity)

15 x 21 mm compact size (switch top face)
One-touch snap-in installation
Moulded material is UL 94V-0 certified with excellent self-extinguishing characteristics
Terminal insert moulding prevents flux penetration and loosening of terminals
Contact distance of at least 3 mm has excellent insulation / withstand voltage characteristics
Two types: partially illuminated and non-illuminated

Standards

UL CSA C-UL VDE

//media.rs-online.com/t_line/LJ428914-01.gif
//media.rs-online.com/t_line/LJ453773-02.gif

Nihon Kaiheiki Ind. Co. Range

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation On-None-Off
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.2mm
Contact Current Rating 10 A
Illuminated Yes
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect, Solder
Actuator Shape Rectangular
Minimum Operating Temperature -25°C
Contact Resistance 10mΩ
Panel Cut Out Size 19.2 x 12.9mm
Contact Material Silver
AC Voltage Rating 125 V, 250 V
Case Material Polyamide
Operating Temperature Range -25 → +50°C
Mechanical Life 30000Operations
Maximum Operating Temperature +50°C
81 In stock for delivery within 3 working days
Price Each
SGD 8.48
(exc. GST)
SGD 9.07
(inc. GST)
units
Per unit
1 - 49
SGD8.48
50 - 99
SGD7.64
100 - 249
SGD6.95
250 - 499
SGD6.43
500 +
SGD6.17
