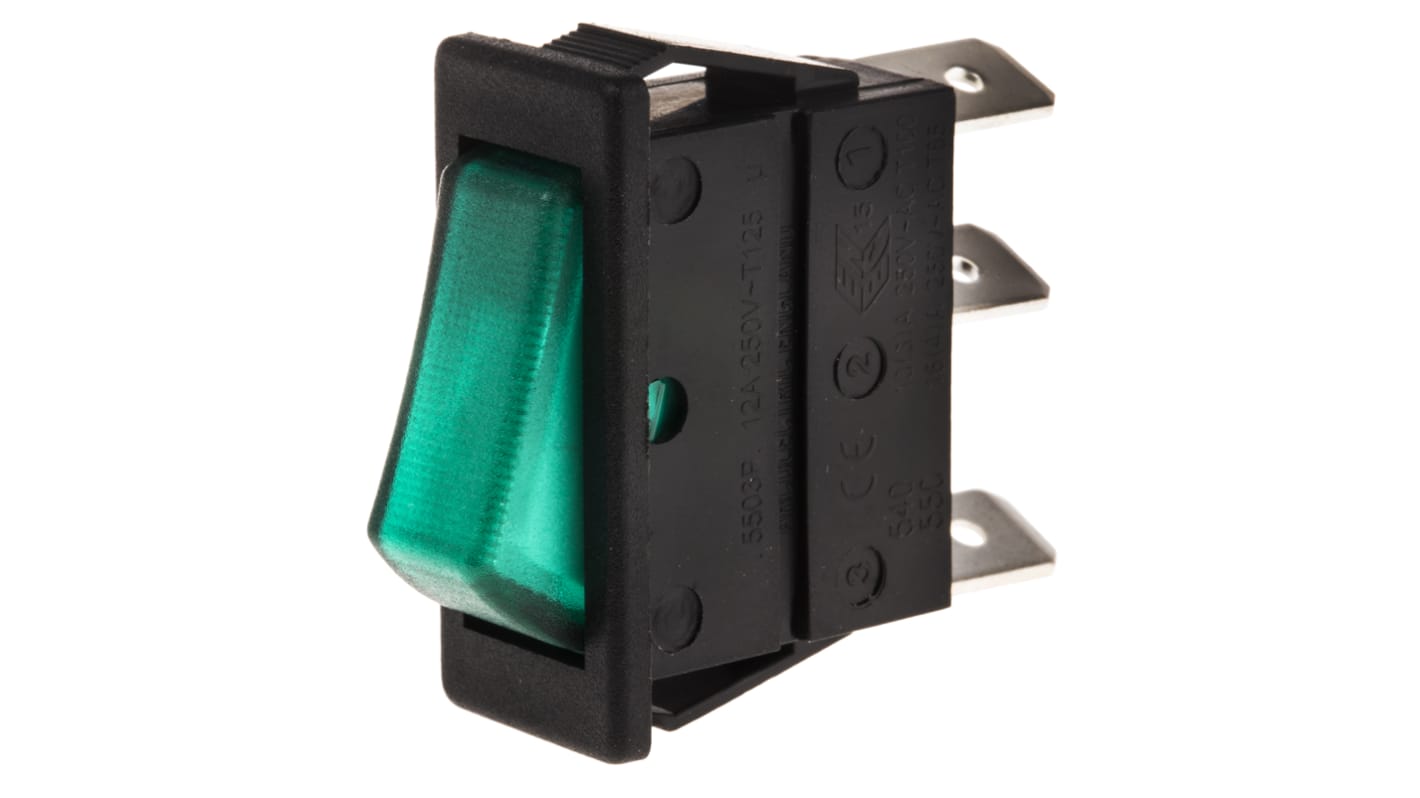

Arcolectric (Bulgin) Ltd Illuminated SPST, On-Off On-None-On Rocker Switch Panel
- RS Stock No.:
- 287-7278
- Distrelec Article No.:
- 303-90-551
- Mfr. Part No.:
- C5503ALNAK
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
SGD4.60
(exc. GST)
SGD5.01
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 66 unit(s) shipping from 20 July 2026
- Plus 600 unit(s) shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | SGD4.60 |
| 50 - 99 | SGD4.49 |
| 100 - 249 | SGD4.38 |
| 250 - 499 | SGD4.32 |
| 500 + | SGD4.25 |
*price indicative
- RS Stock No.:
- 287-7278
- Distrelec Article No.:
- 303-90-551
- Mfr. Part No.:
- C5503ALNAK
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcolectric (Bulgin) Ltd | |
| Product Type | Rocker Switch | |
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Housing Material | Aluminium | |
| Panel Cutout Size | 30 x 11 mm | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mount Type | Panel | |
| Terminal Type | Quick Connect | |
| IP Rating | IP54, IP67 | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 28V dc | |
| Actuator Style | Rectangular | |
| Maximum Operating Temperature | 150°C | |
| Switch Configuration | On-None-On | |
| Standards/Approvals | BS, CE, CSA, RoHS, UL, VDE | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand Arcolectric (Bulgin) Ltd | ||
Product Type Rocker Switch | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Housing Material Aluminium | ||
Panel Cutout Size 30 x 11 mm | ||
Illuminated Yes | ||
Actuator Colour Green | ||
Mount Type Panel | ||
Terminal Type Quick Connect | ||
IP Rating IP54, IP67 | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 28V dc | ||
Actuator Style Rectangular | ||
Maximum Operating Temperature 150°C | ||
Switch Configuration On-None-On | ||
Standards/Approvals BS, CE, CSA, RoHS, UL, VDE | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- TN
Euro Cut Out
A range of panel mount rocker switches designed for 30 x 22.1 and 30 x 11 Euro cut-outs. With a choice of red or green illumination or standard non-illuminated black actuators, the Euro cut-out rocker switches are suitable for a wide range of applications. The snap-in switches are available with latching or momentary operation and can be single or double pole configured, depending on the application. The robust rocker switches are ideal for repair and new design work.
Features and Benefits
• Red or green illumination
• High Inrush option (C1353)
• SPST, SPDT, DPST and DPDT switch configurations
• Snap-in plastic prongs on the switch sides for secure panel retention
• Connection via quick connect 0.250” (6.35 mm) faston terminals
• Easy to operate the smooth rocker actuator
• Silver alloy contacts
Typical applications for rocker switches
Rockers, due to their simple design are one of the most frequently used electrical switches used in the market today. Easy to use, rockers switches are found in all areas of domestic and industrial environments. Some of the most common are:
• Medical and laboratory equipment
• Domestic appliances
• Audio and video equipment
• Power supplies
• Computers and peripherals
FAQ
• Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
Note
Supply voltage for illuminated switches is 230Vac
Approvals
ENEC; UL; CSA
