TSX712IYDT STMicroelectronics, Precision, Op Amp, RRIO, 2.7MHz, 8-Pin SOIC

RS Stock No.:: 166-0989
Mfr. Part No.:: TSX712IYDT
Manufacturer:: STMicroelectronics

TSX712IYDT STMicroelectronics, Precision, Op Amp, RRIO, 2.7MHz, 8-Pin SOIC

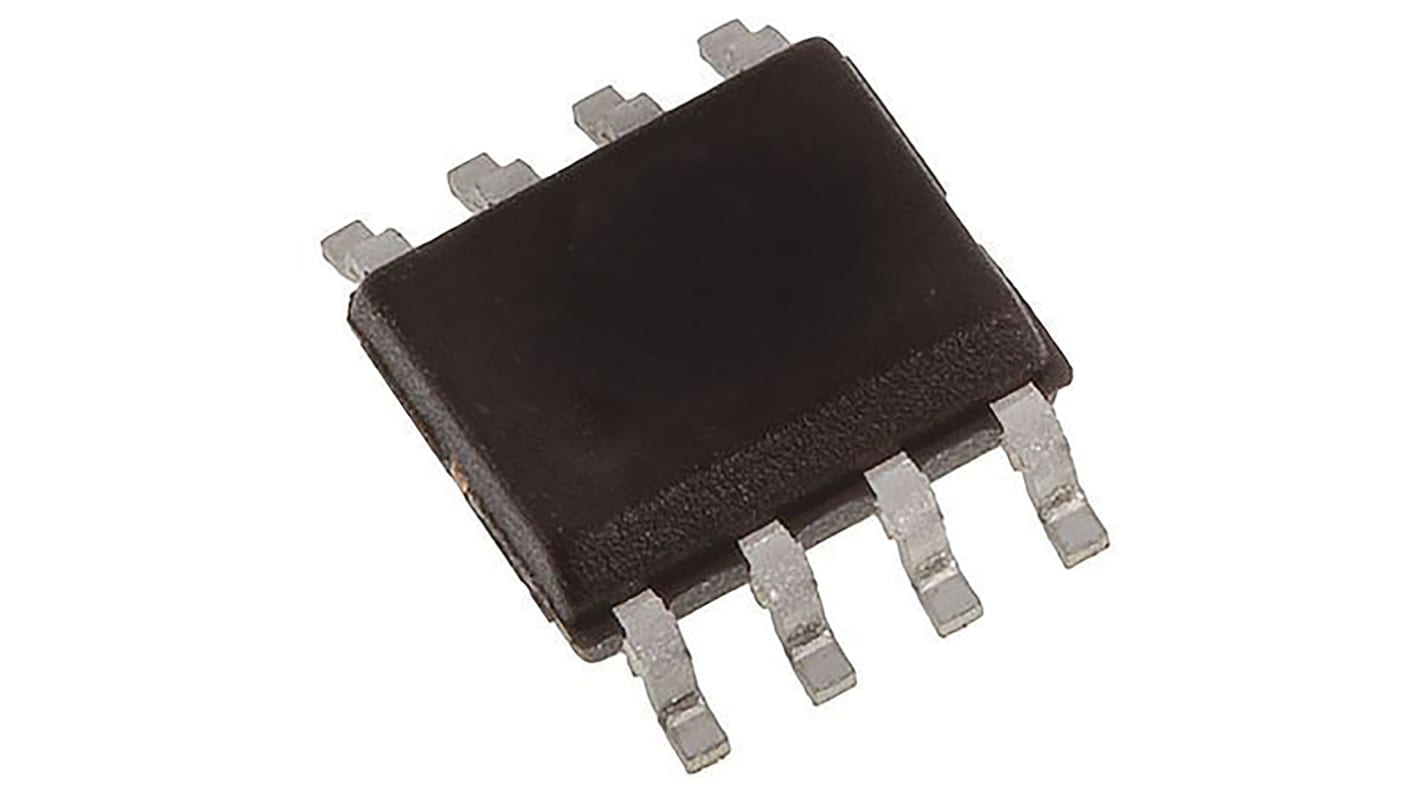

This image is representative of the product range

2355 In stock for delivery within 4 working days

Price Each (On a Reel of 2500)

SGD2.805

(exc. GST)

SGD3.057

(inc. GST)

Units	Per unit	Per Reel*
2500 +	SGD2.805	SGD7,012.50

*price indicative

RS Stock No.:: 166-0989
Mfr. Part No.:: TSX712IYDT
Manufacturer:: STMicroelectronics

TSX712, Low-Power, Precision, Rail-to-Rail, 2.7 MHz, 16 V Operational Amplifier
ESD Control Selection Guide V1

Attribute	Value
Amplifier Type	Precision
Mounting Type	Surface Mount
Package Type	SOIC
Power Supply Type	Single
Number of Channels per Chip	2
Pin Count	8
Typical Gain Bandwidth Product	2.7MHz
Typical Slew Rate	1.4V/µs
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	16 V
Rail to Rail	Rail to Rail Input/Output
Offset Voltage	450µV
Typical Voltage Gain	149 dB
Output Current	40 (Sink) mA, 69 (Source) mA
Width	4mm
Input Voltage Range	2.7 → 16 V
Input Offset Current	200pA
Height	1.5mm
Typical Input Voltage Noise Density	22nV/√Hz
Minimum Input Voltage	2.7 V
Dimensions	5 x 4 x 1.5mm
Length	5mm

TSX712IYDT STMicroelectronics, Precision, Op Amp, RRIO, 2.7MHz, 8-Pin SOIC

TSX711, TSX712, Precision, Rail-to-Rail I/O, 16 V CMOS Operational Amplifiers
