Aim-TTi, Model BS407 Ohm Meter, Maximum Resistance Measurement 20 kΩ, Resistance Measurement Resolution 1μΩ

  • RS Stock No. 424-4383
  • Mfr. Part No. BS407
  • Manufacturer Aim-TTi
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

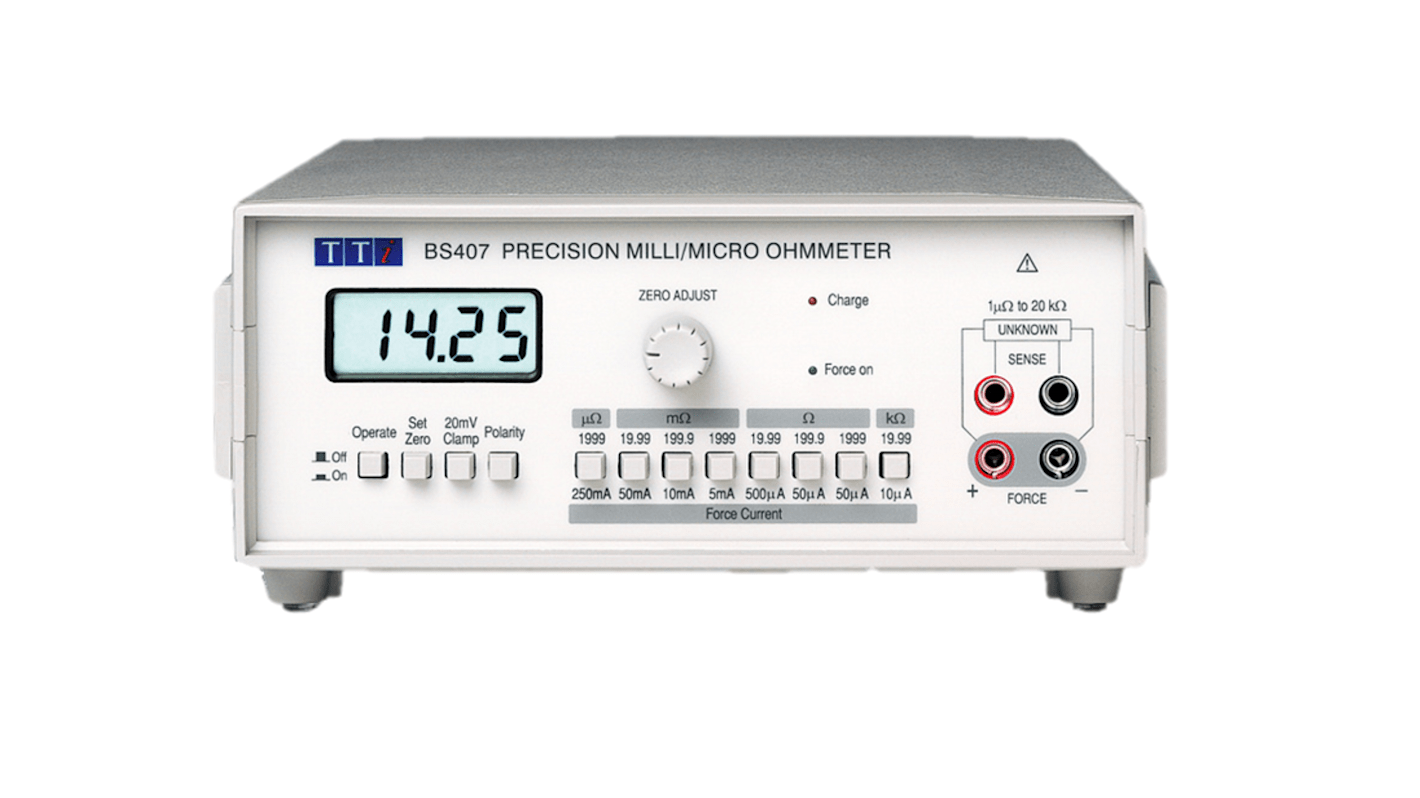

Milli/Micro Ohm BS407

Portable instrument (98 x 219 x 240mm, 1.5kg) capable of measuring very low resistance to high accuracy. Unusually wide measuring range combined with features such as a 20mV clamp makes for wide range of applications.

Wide measurement range of 1mΩ to 20kΩ
Four terminal measurement using Kelvin lead set
High basic accuracy of 0.1%
Current reversal switch for thermal EMF detection
Current diversion switch for easy zero setting
Battery operation (Ni-MH) with built-in charger
Minimal warm-up time
Switchable 20mV clamp for 'dry circuit' testing

Supplied with

Kelvin test lead set, operating manual, mains lead.

Specifications
Attribute Value
Maximum Resistance Measurement 20 kΩ
Resistance Measurement Resolution 1µΩ
Measurement Type 4 Wire
Battery Life 150 h
Battery Type Rechargeable NiMH
Power Source Battery, Mains
Dimensions 230 x 220 x 82mm
Weight 1.3kg
Height 82mm
Length 230mm
Maximum Accuracy +0.1 %
Maximum Operating Temperature +40°C
Minimum Accuracy ±0.1 %
Plug Type Type C - European Plug, Type G - British 3-pin
Model Number p BS407
Width 220mm
Minimum Operating Temperature +5°C
Temporarily out of stock - back order for despatch 10/01/2020, delivery within 3 working days from despatch date
Price Each
SGD 1,283.30
(exc. GST)
SGD 1,373.13
(inc. GST)
units
Per unit
1 +
SGD1,283.30
