Siretta DELTA5A/x/SMAM/S/S/17 Whip Multiband Antenna with SMA Connector, ISM Band
- RS Stock No.:
- 124-8679
- Mfr. Part No.:
- DELTA5A/x/SMAM/S/S/17
- Manufacturer:
- Siretta
Bulk discount available
Subtotal (1 unit)*
SGD13.35
(exc. GST)
SGD14.55
(inc. GST)
FREE delivery for orders over $150.00
In Stock
- 66 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | SGD13.35 |
| 10 - 49 | SGD13.07 |
| 50 + | SGD11.75 |
*price indicative
- RS Stock No.:
- 124-8679
- Mfr. Part No.:
- DELTA5A/x/SMAM/S/S/17
- Manufacturer:
- Siretta
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siretta | |
| RF Protocols | ISM Band | |
| Frequency Range | 868 MHz | |
| Connector Type | SMA | |
| Gain | 3dBi | |
| Internal/External | Internal | |
| Antenna Physical Form | Whip | |
| Antenna Mounting Type | Direct | |
| Series | Delta 5A | |
| Antenna Directivity | Omnidirectional | |
| Antenna Internal Construction | Helical | |
| Connector Gender | Male | |
| Select all | ||
|---|---|---|
Brand Siretta | ||
RF Protocols ISM Band | ||
Frequency Range 868 MHz | ||
Connector Type SMA | ||
Gain 3dBi | ||
Internal/External Internal | ||
Antenna Physical Form Whip | ||
Antenna Mounting Type Direct | ||
Series Delta 5A | ||
Antenna Directivity Omnidirectional | ||
Antenna Internal Construction Helical | ||
Connector Gender Male | ||

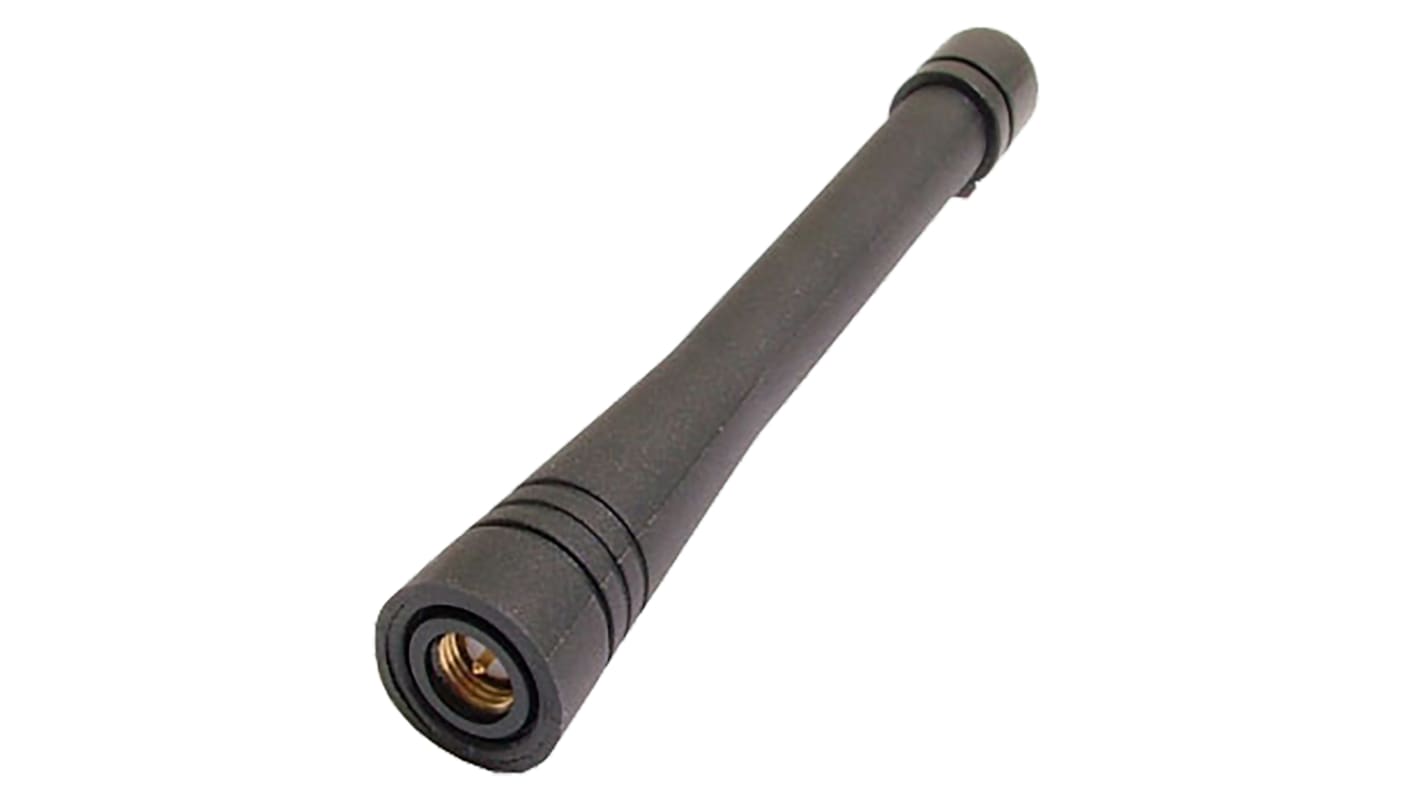

DELTA 5A - 868 MHz Flexi Direct Connect Antenna, Siretta
The Delta 5A is a wave, helically wound, omni-directional, direct connect stubby antenna tuned to a centre frequency of 868 MHz. Although highly focused and limited to the ISM band it provides superior performance than wide band antennas. The bottom of the antenna and connector are “flush” with one another so there is no over-hang so it can sit flush with the mounting surface.
The Delta 5A is supplied an SMA male connector.
The Delta 5A is supplied an SMA male connector.
Operating Temperature: -30 to +75C
Impedance: 50 Ω
Gain: 3 dBi
VSWR: <2.1
Polarisation: Vertical
Radiating element: 1/4 wave coil
Operating Frequencies
ISM: 868 MHz
Dimensions
Length: 100 mm
Impedance: 50 Ω
Gain: 3 dBi
VSWR: <2.1
Polarisation: Vertical
Radiating element: 1/4 wave coil
Operating Frequencies
ISM: 868 MHz
Dimensions
Length: 100 mm
868MHz Antenna
