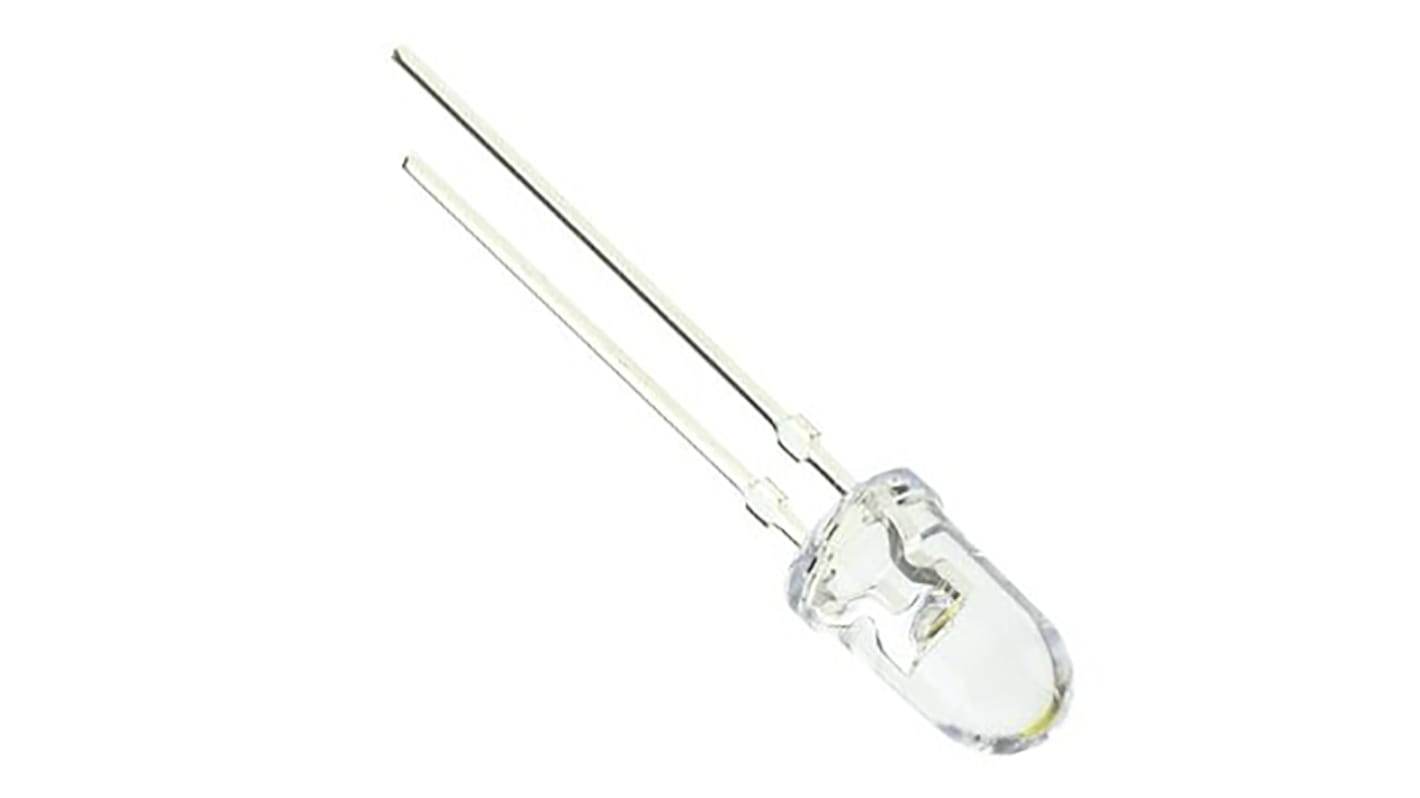

Broadcom HLMP-CE34-Y1CDD, 505 nm Cyan LED, 5mm (T-1 3/4) Round Through Hole package

  • RS Stock No. 178-1542
  • Mfr. Part No. HLMP-CE34-Y1CDD
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Avago HLMP-CExx Series LEDs

The HLMP-CExx series, from Avago Technologies, are T-1 3/4 (5mm) extra bright, cyan LEDs. They use efficient InGaN material technology to offer a high intensity light output. With a typical dominant wavelength of 505nm, the HLMP-CExx family are ideal for traffic signal applications.
The HLMP-CExx LEDs are un-tinted, non-diffused lamps in in the standard T-1 3/4 package. They incorporate second generation optics which produce well defined spatial radiation patterns at specific viewing cone angles. The HLMP-CExx devices offer temperature and moisture resistance and are therefore ideal for outdoor sign and signal applications.

Features of the HLMP-CExx:
- Viewing angle: 15°, 23° and 30°
- High brightness material
- Moisture resistant
- Un-tinted and non-diffused

Visible Light LEDs, Avago Technologies

Specifications
Attribute Value
LED Colours Cyan
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 3.2 V
Luminous Intensity 21 cd
Number of Pins 2
Viewing Angle 30 °
Luminous Flux 2.1 lm
Lens Shape Round
Dominant Wavelength 505 nm
Dimensions 5 x 8.65mm
Lens Colour Clear
6000 In stock for delivery within 3 working days
Price Each (In a Bag of 2000)
SGD 0.438
(exc. GST)
SGD 0.469
(inc. GST)
units
Per unit
Per Bag*
2000 +
SGD0.438
SGD876.00
*price indicative
