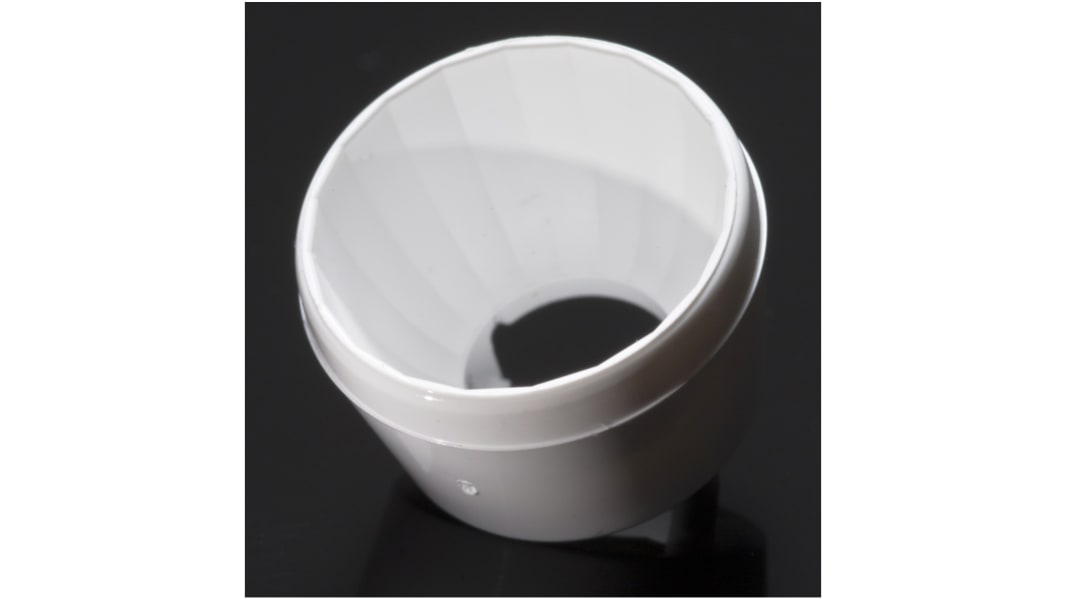

    Ledil C13253_TINA2-R-CLIP16, Tina2 Series LED Reflector

    RS Stock No.:
    891-0526
    Mfr. Part No.:
    C13253_TINA2-R-CLIP16
    Manufacturer:
    Ledil
    Ledil
    View all LED Lenses & Reflectors
    15 In stock for delivery within 4 working days
    Add to Basket
    units

    Added

    Price Each (In a Pack of 5)

    SGD4.022

    (exc. GST)

    SGD4.304

    (inc. GST)

    unitsPer unitPer Pack*
    5 - 20SGD4.022SGD20.11
    25 - 95SGD3.938SGD19.69
    100 +SGD3.82SGD19.10
    *price indicative
    RS Stock No.:
    891-0526
    Mfr. Part No.:
    C13253_TINA2-R-CLIP16
    Manufacturer:
    Ledil
    COO (Country of Origin):
    CN

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

    LEDiL TINA2 Series LED Lenses


    The TINA2 series from LEDil, are a family of round LED lenses with 16 mm diameter. There are two types of lens within the TINA2 family, one with a black PC holder and one with a white PC holder. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of beam angles from a spot to extra wide, and even an oval beam option. TINA2 lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
    Made using an optical grade PMMA, the TINA2 lenses offer a high UV and temperature resistance. They are fastened using an adhesive tape. TINA2 lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.


    The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.



    LEDiL Single LED Lenses


    Specifications

    AttributeValue
    SeriesTina2
    For Use WithCree XB-D, Cree XB-H, Cree XM-L, Cree XM-L2, Cree XP-E, Cree XP-E2, Cree XP-G, Cree XP-G2, Cree XT-E, Lumileds LUXEON A, Lumileds LUXEON R, Lumileds LUXEON Rebel, Lumileds LUXEON Rebel ES, Lumileds LUXEON T, Lumileds LUXEON TX, Nichia NCSxx19A, Nichia NF2x757A, Nichia NVSxx19A, Nichia NVSxx19B/NVSxx19C, OSRAM DURIS S5, OSRAM OSLON Square, OSRAM OSLON SSL 150, OSRAM OSLON SSL 80
    Dimensions16.1 x 10.1mm
    Diameter16.1mm
    Height10.1mm
    Beam Angle71 (Oslon SSL 80 - Osram) °, 71 (XT-E - Cree) °, 72 (LUXEON Rebel - Philips Lumileds) °, 72 (NCSxx19A - Nichia) °, 72 (NF2x757A - Nichia) °, 73 (XB-D - Cree) °, 74 (LUXEON Rebel ES - Philips Lumileds) °, 74 (NVSxx19A - Nichia) °, 74 (NVSxx19B/NVSxx19C - Nichia) °, 74 (XP-E - Cree) °, 74 (XP-E2 - Cree) °, 75 (LUXEON A - Philips Lumileds) °, 75 (LUXEON R - Philips Lumileds) °, 75 (LUXEON T - Philips Lumileds) °, 75 (Oslon Square EC - Osram) °, 75 (Oslon SSL 150 - Osram) °, 75 (XP-G2 - Cree) °, 76 (Duris S5 (2 chip) - Osram) °, 77 (XP-G - Cree) °, 78 (XM-L - Cree) °, 78 (XM-L2 - Cree) °, 81 (LUXEON TX - Philips Lumileds) °, 81 (XB-H - Cree) °
