Vent-Axia Lo-Carbon TX12WL T-Series Rectangular Wall Mounted Wall Fan, Intake, 1355 (Medium) m³/h, 1650 (High) m³/h,
- RS Stock No.:
- 136-9959
- Mfr. Part No.:
- Lo-Carbon TX12WL
- Manufacturer:
- Vent-Axia
Temporarily out of stock - back order for despatch 21/05/2024, delivery within 4 working days from despatch date
Added
Price Each
SGD2,589.89
(exc. GST)
SGD2,822.98
(inc. GST)
| Units | Per unit |
| 1 + | SGD2,589.89 |
- RS Stock No.:
- 136-9959
- Mfr. Part No.:
- Lo-Carbon TX12WL
- Manufacturer:
- Vent-Axia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

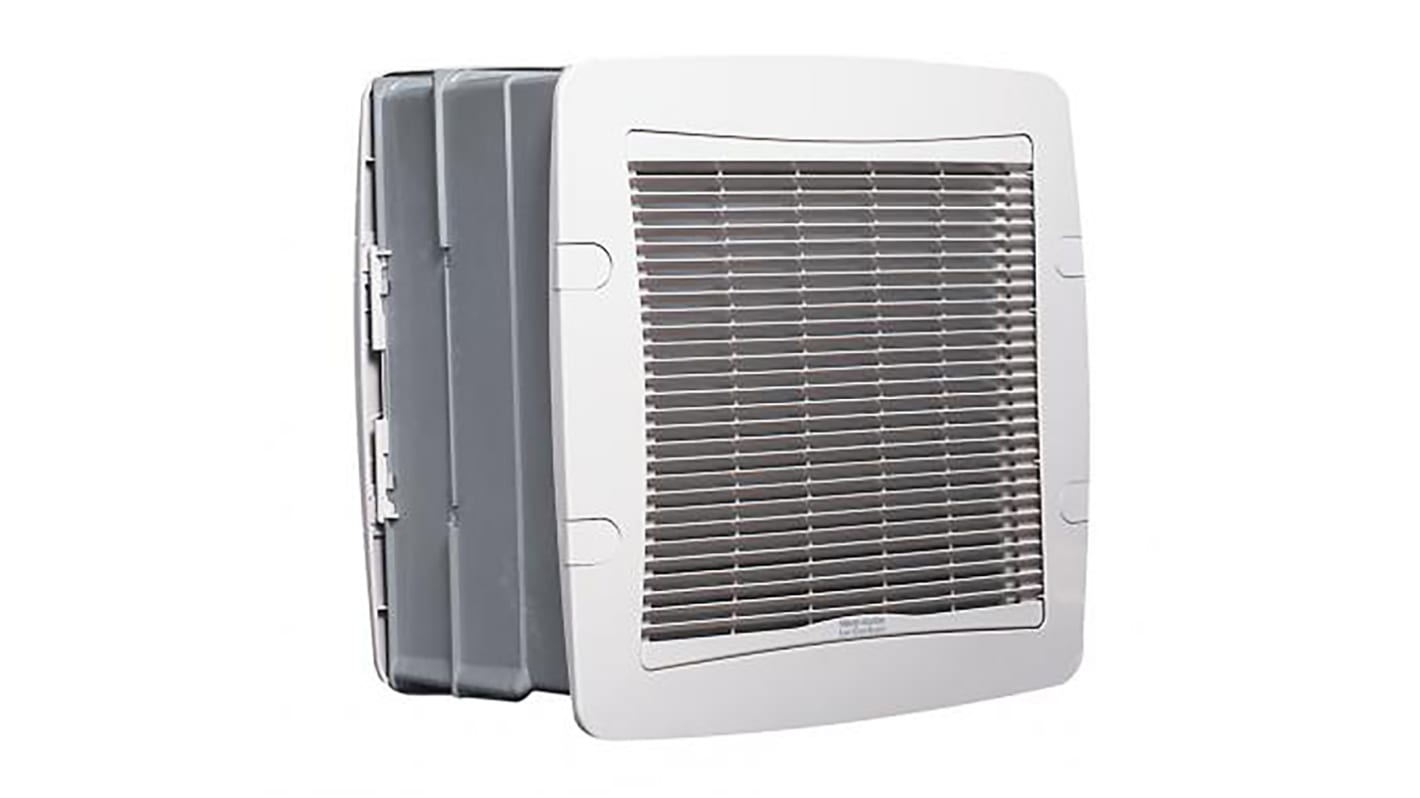

Vent-Axia Lo-Carbon T-Series Wired Wall Fan
This wired wall fan from Vent-Axia is part of the Lo-Carbon T-Series Fan range. It utilises a newly designed grille combined with a high performance extract/intake ventilating unit. This unit can be fitted through most wall thicknesses as it comes supplied with a telescopic liner.
The T-Series fan is descreet, in terms of looks and noise. On full power it's comparable to the noise generated by a standard 4 inch domestic fan (32 dB).
The shutter is electronically controlled by an actuator with a damped action giving it a quiet operation during the instant opening and closing.
When used with the LoWatt T-Series controller, the shutter can be set to open with the fan motor switched OFF to provide natural ventilation.
Features and Benefits
Quiet ventilating fan
Fitted to most walls
Electronically controlled shutter
Intake and Extract functionality
Wireless controlled version available
Wall / Ceiling Extractor Fans
Specifications
Attribute | Value |
|---|---|
| Fan Type | Extractor |
| Function | Extraction, Intake |
| Air Flow | 1355 (Medium) m³/h, 1650 (High) m³/h, 660 (Low) m³/h |
| Noise Level | 48dB |
| Mounting | Wall Mounted |
| Face Dimensions | 467 x 470mm |
| Depth | 240 → 315mm |
| Face Height | 467mm |
| Face Width | 470mm |
| Duct Size | 315mm |
| Supply Voltage | 230 V ac |
| Special Features | Easy Fit Connector Top Socket Standard on all Models, Long Life Lo-Carbon Motor Lasts Twice as Long as Conventional Motors, Reduces Your Carbon Footprint, Up to 70% Energy Saving, Wired or Wireless Fan Models Available |
| Series | T-Series |
| Configuration | Rectangular |
| Termination Type | Screw |
