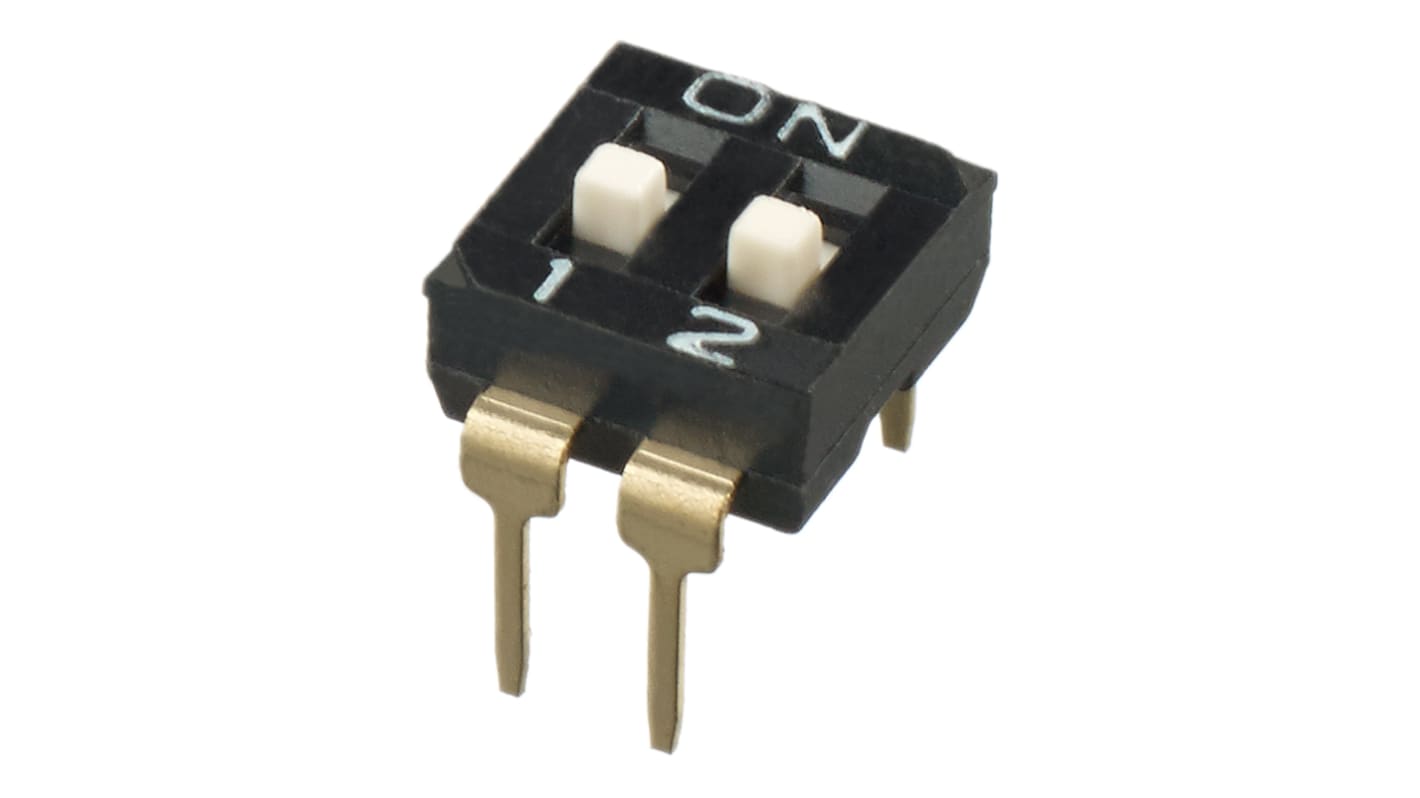

APEM 2 Way Through Hole DIP Switch SPST, Raised Actuator Slide Actuator
- RS Stock No.:
- 877-2160
- Mfr. Part No.:
- IKD0200101
- Manufacturer:
- APEM
Stock check temporarily unavailable - call for stock availability
Price Each (In a Tube of 76)
SGD1.478
(exc. GST)
SGD1.611
(inc. GST)
Units | Per unit | Per Tube* |
|---|---|---|
| 76 - 28804 | SGD1.478 | SGD112.328 |
| 28880 - 57684 | SGD1.458 | SGD110.808 |
| 57760 - 115444 | SGD1.419 | SGD107.844 |
| 115520 - 230964 | SGD1.344 | SGD102.144 |
| 231040 + | SGD1.20 | SGD91.20 |
*price indicative
- RS Stock No.:
- 877-2160
- Mfr. Part No.:
- IKD0200101
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem DIP Switch - IKD Series
The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting
Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Mounting Type | Through Hole |
| Contact Material | Phosphor Bronze (Moving Contact) |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Raised Actuator Slide |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24 V dc, 50V dc |
| Dielectric Strength | 500V ac |
