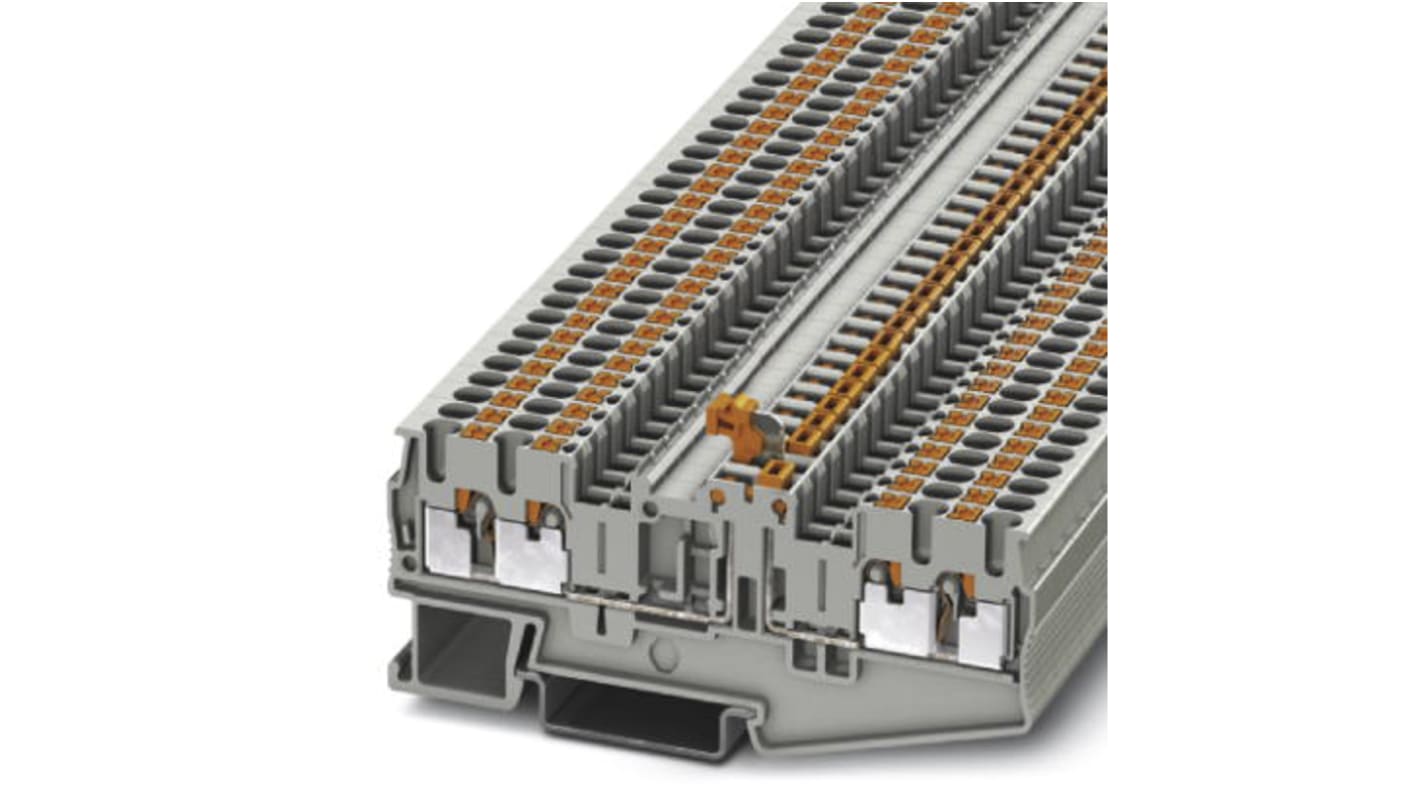

Phoenix Contact 3210184 PT 2.5-QUATTRO-MTB Series Grey, 2.5mm², Single-Level, Push In Termination

This knife-disconnect terminal block from Phoenix Contact is designed to let you access circuits without disturbing the wires. It has a single level that accommodates up to four wires ranging from 26 to 12AWG (American Wire Gauge), so it's versatile. A front-facing push-in termination design means it's easy to directly connect the wires without complex tools. At 92.2mm long, this terminal block is compact and suitable for small panels.
An operating voltage of 400V makes the unit suitable for heavy-duty applications. It has a rated surge voltage of 6kV, which protects it from current overload and, for added safety, robust PA (polyamide) insulation keeps the operator safe from electric shock when handling it. You can use blocks like this one to set up the wiring for your railway control panels and plant machinery.

• Current rating of 16A for use in high-power equipment
• Flammability rating of UL 94 V2 to stop the spread of fire
• Wide operating temperature range between -60°C and +105°C for use in harsh industrial conditions
• Shock-resistant to withstand demanding environments

PT Series
