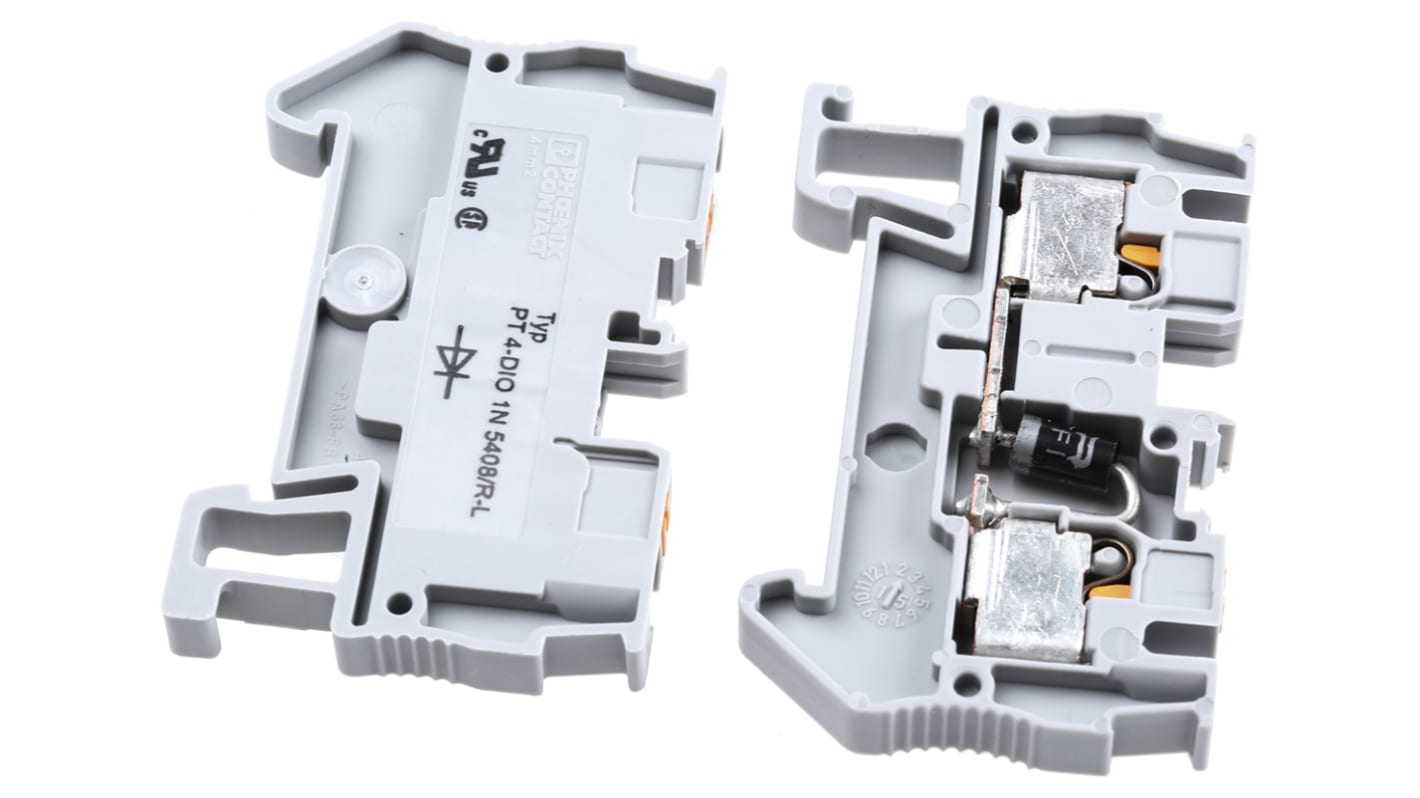

Phoenix Contact3212125 PT 4-DIO 1N 5408/R-L Series Component Terminal Block, 0.2 → 6mm², Single-Level, Push In

Compact design
Can be used for a wide range of switching tasks
Versions with diode conducting direction from left to right or visa versa
Can be double bridged

Use this component terminal block from Phoenix Contact for your circuit switching tasks. The unit is housed in grey polyamide and its diode functions as a safety device, guarding against reverse voltage up to 1000V. A compact size (56mm long) makes this terminal block ideal for use when space is restricted
Thanks to a CLIPLINE push-in connection system, you can insert and remove conductors easily without using tools. By reducing the force required for plugging in ferrules and solid connectors, this feature ensures a longer service life. The terminal block can also be double-bridged to establish another contact level, for greater circuit flexibility.
With a voltage rating of 800V and a current rating of 1.5A, this rigorously tested terminal block is suited to heavy-duty industrial applications such as construction and manufacturing. A broad operating temperature range of -60°C to +105°C means you can use it in extreme environments.

• Compact dimensions of 56 (length) x 6.2mm (width)
• Wire size of 24 to 10AWG (American Wire Gauge)
• Overvoltage category III for safety
• Flame retardant with an Underwriters Laboratories (UL) 94 flammability rating V-0, meaning flame extinguishes after 10 seconds

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
