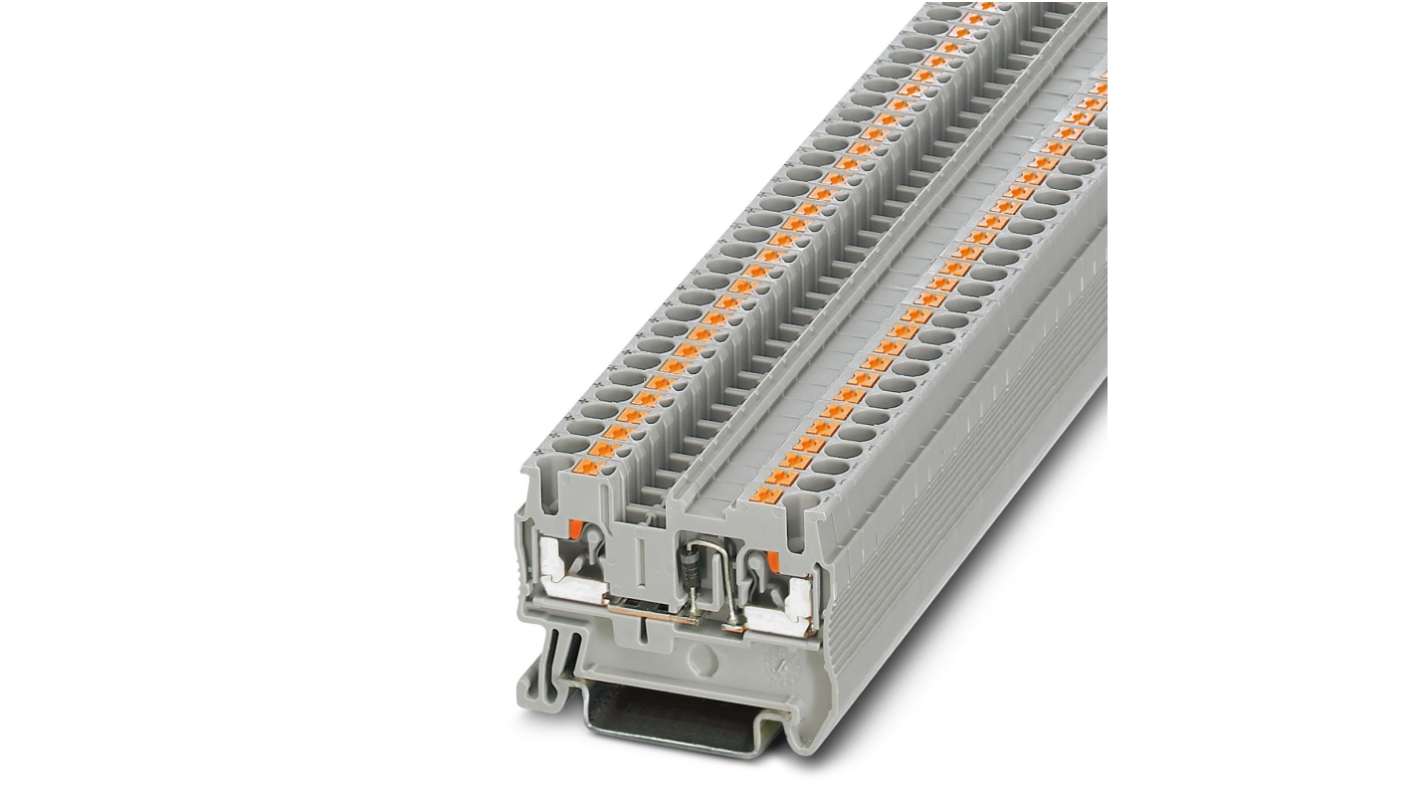

Phoenix Contact3210224 PT 2.5-DIO/L-R Series Multi Level Terminal Block, 0.14 → 4mm², Single-Level, Push In

Using the diode terminal blocks of the PT push-in connection terminal blocks makes it possible to solve a variety of switching tasks. The diode is integrated either from left to right or vice versa in the terminal housings. Three and four-conductor terminal blocks are also available for multi-conductor connections.

Integrated diodes (1N 4007) and lamps on certain parts
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits

This multi-level terminal block provides secure electrical connections with ease. Its push-in termination method simplifies installation, making it suitable for various applications in the automation, electronics, and electrical sectors. Rated for high voltage applications, it ensures effective performance in modern electrical solutions while guaranteeing dependable operation across diverse environments.

• Current rating of 500mA for effective operation
• Push-in termination for straightforward installation
• Operates efficiently within -60 to 110°C temperature range
• Complies with CSA standards for enhanced reliability

• Utilised in electrical panels for streamlined wiring
• Suitable for automation systems requiring stable connections
• Useful in various machinery and equipment assemblies

Ensure that the wiring is stripped to the appropriate length as specified by the manufacturer, and that the wires are securely pushed into the terminal for a solid connection.

Regularly inspect connections for signs of wear or corrosion, ensuring that they remain tight and secure over time.

It is designed for wires ranging from 26AWG to 12AWG, limiting compatibility with larger gauge wires.

It is particularly useful in high voltage environments and automation systems, where secure electrical connections are essential.

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
