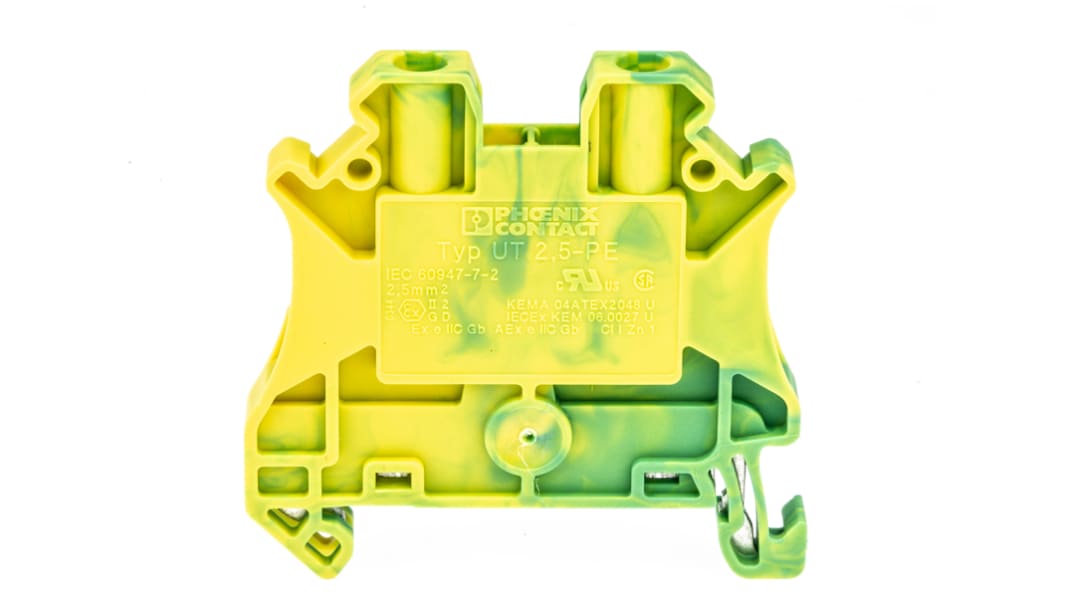

Phoenix Contact UT 2.5-PE Series Green/Yellow Earth Terminal Block, 0.14 → 4mm², Single-Level, Screw
- RS Stock No.:
- 627-3743
- Mfr. Part No.:
- 3044092
- Manufacturer:
- Phoenix Contact
1440 In SG stock for delivery within 1 working day(s) when ordered before 3.30 pm.
1070 In Global stock for delivery within 4 working day(s)
Added
Price Each (In a Pack of 10)
SGD8.285
(exc. GST)
SGD9.031
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 40 | SGD8.285 | SGD82.85 |
| 50 + | SGD6.82 | SGD68.20 |
| *price indicative | ||
- RS Stock No.:
- 627-3743
- Mfr. Part No.:
- 3044092
- Manufacturer:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Earth Terminal Block, 2 Connections, 26 to 12AWG - UT 2,5-PE - 3044092
Keep your electrical system firmly grounded with this earth terminal block from Phoenix Contact. The single-level unit features two connections, so it pulls double-duty in safely directing excess current to the floor. As it accepts 26 to 12AWG wire sizes, this is a versatile part.
As it comes in industry-standard yellow and green housing, the block's purpose is clearly indicated to users and is easy to spot in a busy system. Its robust PA body delivers insulation protection, so rest assured that you're in safe hands when touching it. You can mount it in a snap by simply clipping it onto your DIN rail. Earth terminal blocks like this one are frequently used in the railway industry, machine building and plant engineering.
As it comes in industry-standard yellow and green housing, the block's purpose is clearly indicated to users and is easy to spot in a busy system. Its robust PA body delivers insulation protection, so rest assured that you're in safe hands when touching it. You can mount it in a snap by simply clipping it onto your DIN rail. Earth terminal blocks like this one are frequently used in the railway industry, machine building and plant engineering.
Features & Benefits
• Flammability rating of UL 94-V0 indicates burning stops in 10 seconds to prevent the spread of fire
• Shock duration of 30ms to withstand demanding operations
• ATEX certified for safe use in potentially explosive atmospheres
• Suitable for harsh industrial settings thanks to a wide operating temperature range between -50°C and +110°C
• Shock duration of 30ms to withstand demanding operations
• ATEX certified for safe use in potentially explosive atmospheres
• Suitable for harsh industrial settings thanks to a wide operating temperature range between -50°C and +110°C
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
|---|---|
| Colour | Green/Yellow |
| Number of Levels | Single |
| American Wire Gauge | 26 → 12AWG |
| Series | UT 2.5-PE |
| Termination Method | Screw |
| Cable CSA | 0.14 → 4mm² |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +110°C |
| Hazardous Area Certification | ATEX |
| Standards Met | ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL |
| Model Number | UT 2,5-PE |
