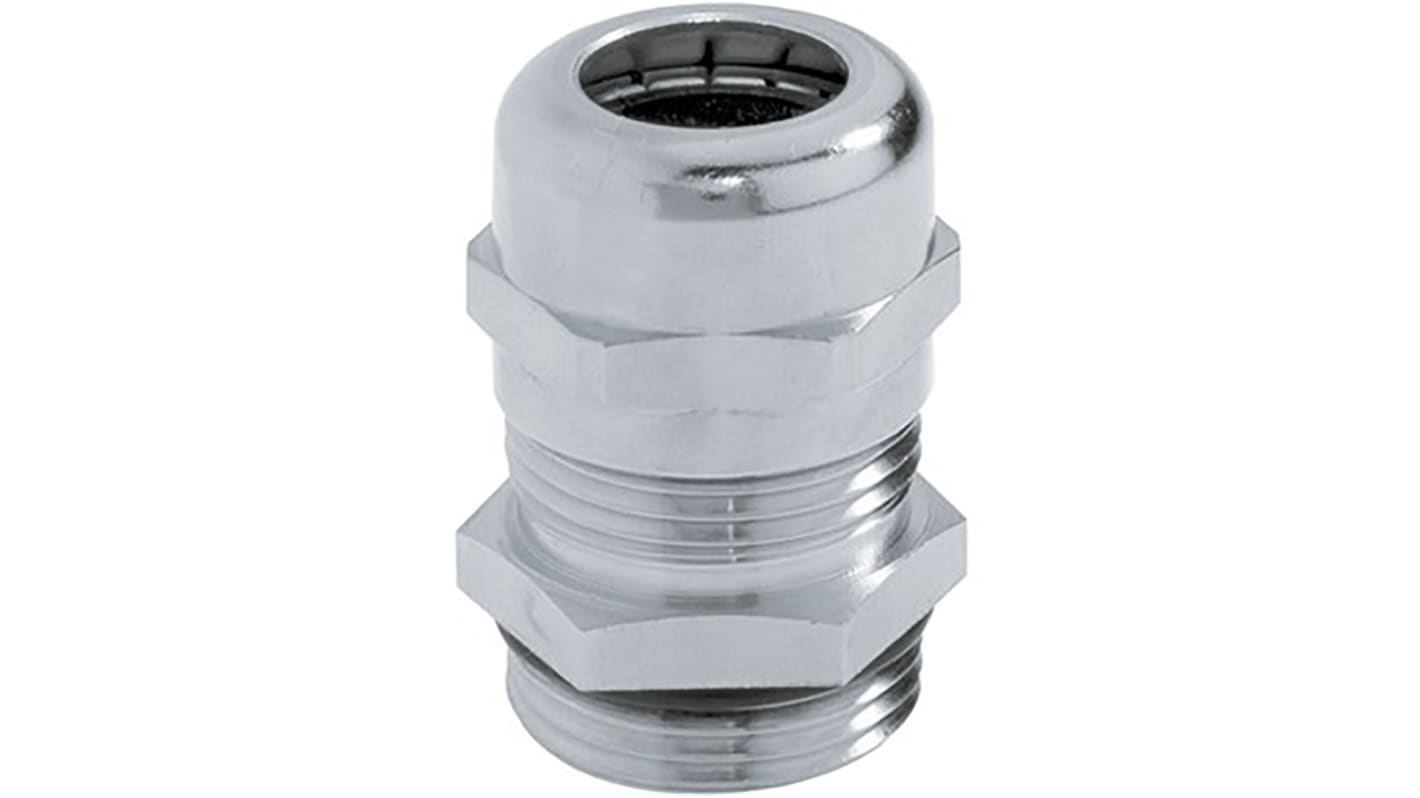

Lapp Skintop PG13.5 Cable Gland With Locknut, Nickel Plated Brass, IP68

  • RS Stock No. 243-8889
  • Mfr. Part No. 52003520+52015800
  • Manufacturer Lapp
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Lapp IP68 PG Round Top Cable Gland

The Lapp liquid-tight, nickel plated, brass cable glands, even cable clamping action prevents conductor damage and gives a protection rating of IP68, up to 5 bar.

Features and Benefits

•Corrosion resistant •Chemical resistant
•Temperature resistant
•Available with a wide selection of clamping ranges
•Tough and Reliable

Applications

Suitable for a broad range of applications and industries including

•Chemical industry •Measurement and control
•Machine and equipment manufacture
•Plant Engineering
•Control cabinets

Supplied with

Lock nut

Specifications
Attribute Value
Thread Size PG13.5
Material Nickel Plated Brass
Maximum Cable Diameter 9mm
Minimum Cable Diameter 4mm
Colour Metallic
IP Rating IP68
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
Locknut Included Yes
Series Skintop
285 In stock for delivery within 4 working days
Price Each (In a Pack of 5)
SGD 9.086
(exc. GST)
SGD 9.722
(inc. GST)
units
Per unit
Per Pack*
5 - 20
SGD9.086
SGD45.43
25 - 45
SGD8.856
SGD44.28
50 +
SGD8.634
SGD43.17
*price indicative
