SIB SIB-TEC Series Metallic Nickel Plated Brass Cable Gland, PG9 Thread, 4mm Min, 9.5mm Max, IP68
- RS Stock No.:
- 531-113
- Mfr. Part No.:
- C5009000R
- Manufacturer:
- SIB
16 In Global stock for delivery within 4 working day(s)
251 In Global stock for delivery within 5 working day(s)
Added
Price 1 Box of 5
SGD25.86
(exc. GST)
SGD28.19
(inc. GST)
| Box(es) | Per Box | Per unit* |
| 1 - 4 | SGD25.86 | SGD5.172 |
| 5 - 9 | SGD25.33 | SGD5.066 |
| 10 + | SGD24.56 | SGD4.912 |
| *price indicative | ||
- RS Stock No.:
- 531-113
- Mfr. Part No.:
- C5009000R
- Manufacturer:
- SIB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

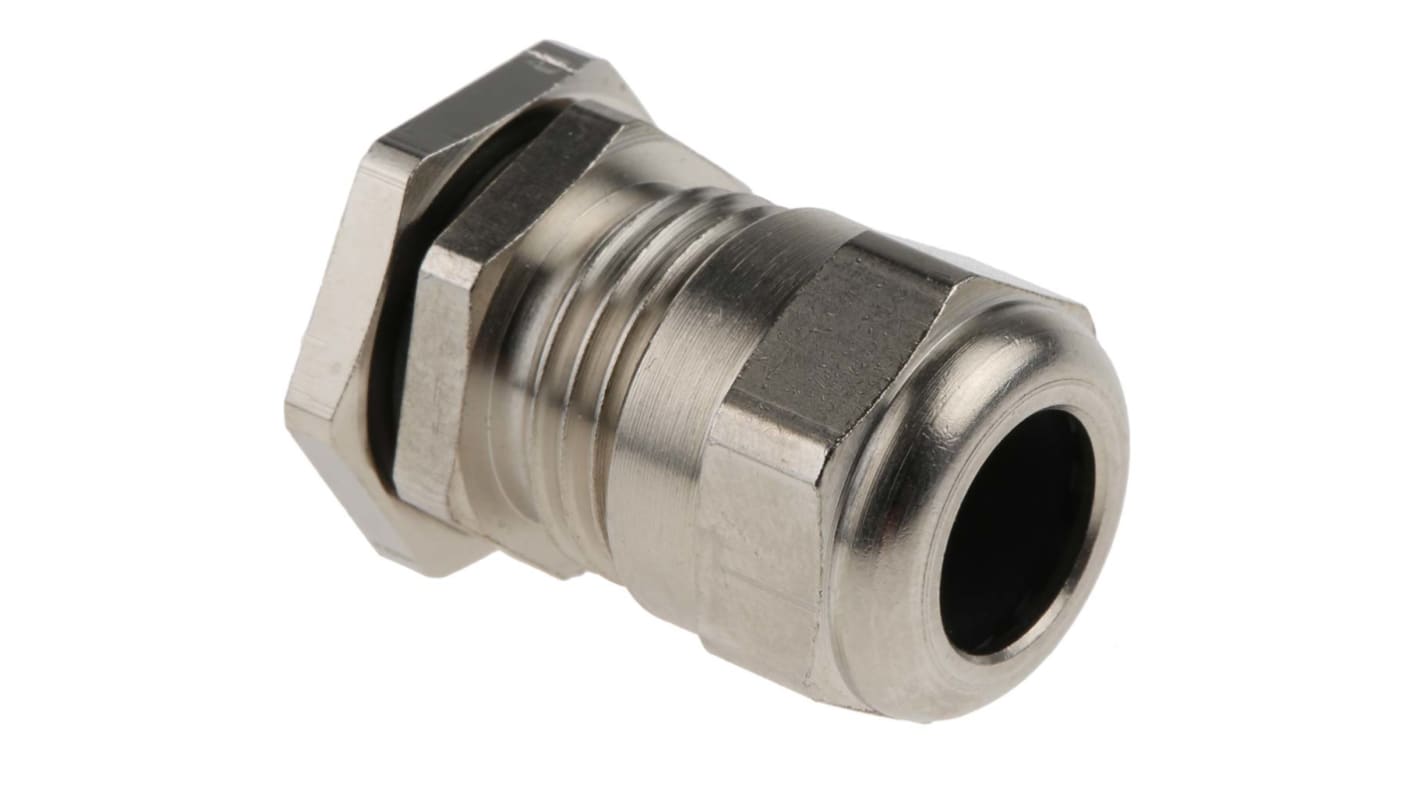

SIB Sib-tec Cable Gland
The SIB Sib-tec cable gland is a robust tool with a PG09 thread size made from nickel-plated brass material. It features a neoprene seal. It is ideal for applications in machines and devices.
Inclusions:
Locknut and nitrile 70 Sh A gasket.
Inclusions:
Locknut and nitrile 70 Sh A gasket.
Features and Benefits
Clamping diameter ranges between 4mm and 9.5mm
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range
Specifications
Attribute | Value |
|---|---|
| Thread Size | PG9 |
| Maximum Cable Diameter | 9.5mm |
| Minimum Cable Diameter | 4mm |
| Material | Nickel Plated Brass |
| Colour | Metallic |
| Series | SIB-TEC |
| IP Rating | IP68 |
| Locknut Included | Yes |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -40°C |
| Standards Met | RoHS Compliant |
| Operating Temperature Range | -40 → +100 °C |
