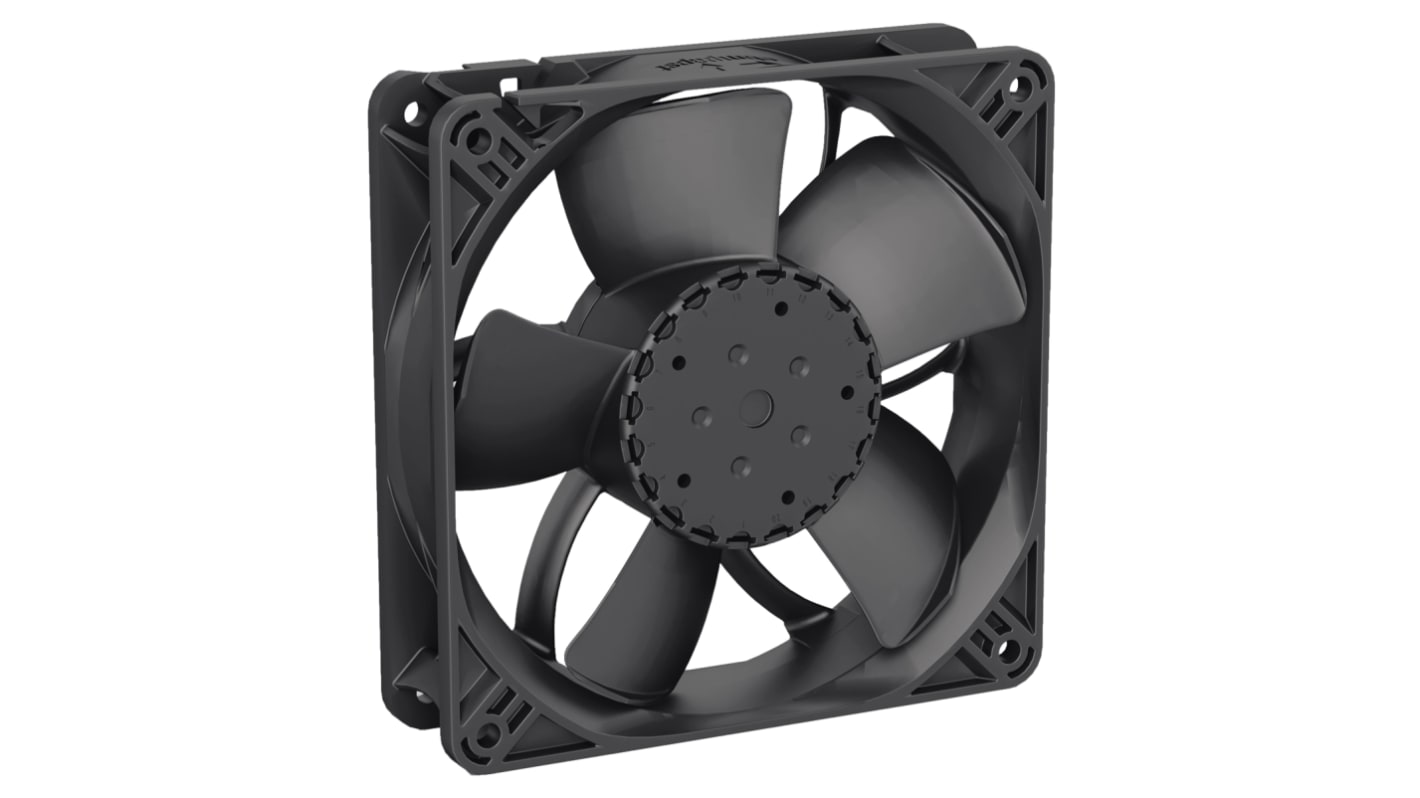

ebm-papst 4300 N - S-Panther Series Axial Fan, 24V dc, 285 m³/h, 6 W, 0.12 A Max, IP68 119 mm 32mm 32 mm
- RS Stock No.:
- 136-0672
- Distrelec Article No.:
- 301-48-275
- Mfr. Part No.:
- 4314N/2H3PU
- Manufacturer:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
SGD102.76
(exc. GST)
SGD112.01
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 38 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | SGD102.76 |
| 5 - 11 | SGD100.19 |
| 12 - 24 | SGD97.68 |
| 25 - 49 | SGD95.25 |
| 50 + | SGD92.87 |
*price indicative
- RS Stock No.:
- 136-0672
- Distrelec Article No.:
- 301-48-275
- Mfr. Part No.:
- 4314N/2H3PU
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 6W | |
| Maximum Current | 0.12A | |
| Air Flow | 285m³/h | |
| Noise Level | 5dB | |
| Fan Speed | 2700rpm | |
| Terminal Type | Screw | |
| Direction of Curve | Forward | |
| Fan Frame Type | Square | |
| Bearing Type | Ball | |
| Depth | 32mm | |
| Height | 119mm | |
| Series | 4300 N - S-Panther | |
| Width | 32mm | |
| Standards/Approvals | RoHS | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 6W | ||
Maximum Current 0.12A | ||
Air Flow 285m³/h | ||
Noise Level 5dB | ||
Fan Speed 2700rpm | ||
Terminal Type Screw | ||
Direction of Curve Forward | ||
Fan Frame Type Square | ||
Bearing Type Ball | ||
Depth 32mm | ||
Height 119mm | ||
Series 4300 N - S-Panther | ||
Width 32mm | ||
Standards/Approvals RoHS | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- HU
IP68 Rated Axial Fan for Harsh Environments
These high performance fans are also protected from dust ingress and a high degree of moisture ingress. They are ideal for operation in harsh environments and suitable for industrial grade applications.
ebm-papst High Performance Reduced Noise DC Fans - 4300N Series
The ebm-papst high-performance fan offers reduced operating noise thanks to a new aero-acoustic design.
Fan operation is made easier with PWM and tachometer output model options.
Manufacturer part number suffix: 'U' denotes IP68 protected, "R" denotes humidity protected.
Features and Benefits
• Superior efficiency
• Lower noise levels
• Reduced power consumption
• Similar air flow running at a lower speed
