Nexperia, 6.8V Zener Diode ±5% 250 mW SMT 3-Pin TO-236
- RS Stock No.:
- 170-8024
- Mfr. Part No.:
- BZX84-C6V8,235
- Manufacturer:
- Nexperia
Temporarily out of stock - back order for despatch 12/05/2025, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 10000)
SGD0.03
(exc. GST)
SGD0.03
(inc. GST)
| Units | Per unit | Per Reel* |
| 10000 + | SGD0.03 | SGD300.00 |
| *price indicative | ||
- RS Stock No.:
- 170-8024
- Mfr. Part No.:
- BZX84-C6V8,235
- Manufacturer:
- Nexperia
Technical data sheets
Legislation and Compliance
Product Details
Zener Diodes 250mW, BZX84 Series

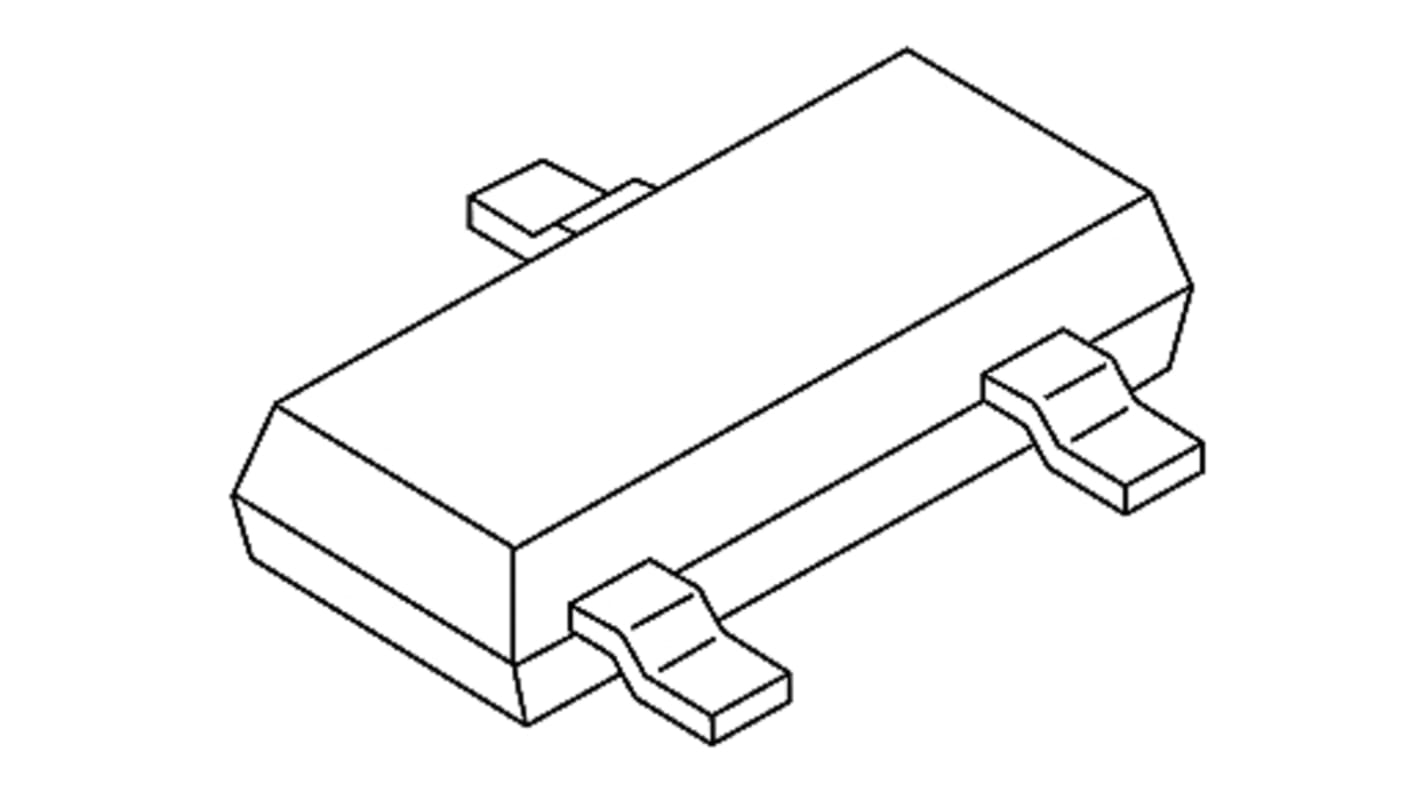

Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ±1 % (BZX84-A), ±2 % (BZX84-B) and approximately ±5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4Vto75 V.
Total power dissipation: ≤ 250 mW
Three tolerance series: ±1%, ±2% and approximately ±5%
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
Target applications
General regulation functions
Three tolerance series: ±1%, ±2% and approximately ±5%
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
Target applications
General regulation functions
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Zener Diodes, Nexperia
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 6.8V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Package Type | TO-236 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 3 |
| Test Current | 10mA |
| Maximum Reverse Leakage Current | 2µA |
| Dimensions | 3 x 1.4 x 1mm |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 0.9V |
| Typical Voltage Temperature Coefficient | 3mV/K |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Forward Current | 200mA |
