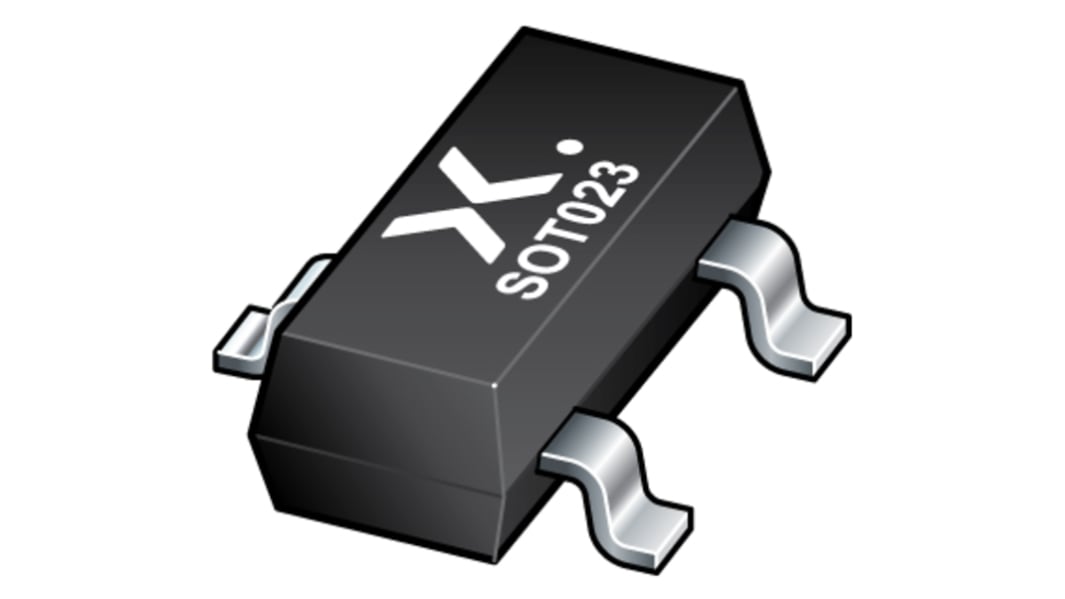

Nexperia, 6.8V Zener Diode 250 mW SMT 3-Pin SOT-23
- RS Stock No.:
- 151-3379
- Mfr. Part No.:
- PLVA668A,215
- Manufacturer:
- Nexperia
Temporarily out of stock - back order for despatch 07/05/2025, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 3000)
SGD0.102
(exc. GST)
SGD0.111
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | SGD0.102 | SGD306.00 |
| 6000 - 12000 | SGD0.10 | SGD300.00 |
| 15000 - 27000 | SGD0.097 | SGD291.00 |
| 30000 - 72000 | SGD0.094 | SGD282.00 |
| 75000 + | SGD0.091 | SGD273.00 |
| *price indicative | ||
- RS Stock No.:
- 151-3379
- Mfr. Part No.:
- PLVA668A,215
- Manufacturer:
- Nexperia
Technical data sheets
Legislation and Compliance
Product Details
Low-voltage avalanche regulator diodes, High performance voltage regulator diodes in small SOT23 plastic SMD packages. The series consists of PLVA650A to PLVA668A.
Very low dynamic impedance at low currents: approximately 1/20 of conventional series
Hard breakdown knee
Low noise: approximately 1/10 of conventional series
Total power dissipation: max. 250 mW
Small tolerances of VZ
Working voltage range: nominal 5.00 to 6.80 V
Non-repetitive peak reverse power dissipation: maximal 30 W.
AEC-Q101 qualified
Low current, low power, low noise applications
CMOS RAM back-up circuits
Voltage stabilizers
Voltage limiters
Smoke detector relays.
Hard breakdown knee
Low noise: approximately 1/10 of conventional series
Total power dissipation: max. 250 mW
Small tolerances of VZ
Working voltage range: nominal 5.00 to 6.80 V
Non-repetitive peak reverse power dissipation: maximal 30 W.
AEC-Q101 qualified
Low current, low power, low noise applications
CMOS RAM back-up circuits
Voltage stabilizers
Voltage limiters
Smoke detector relays.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 6.8V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 250 mW |
| Package Type | SOT-23 |
| Zener Type | Avalanche |
| Pin Count | 3 |
| Test Current | 1mA |
| Dimensions | 3 x 1.4 x 1mm |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | 3.4mV/K |
| Forward Voltage | 0.9V |
| Forward Current | 250mA |
| Automotive Standard | AEC-Q101 |
