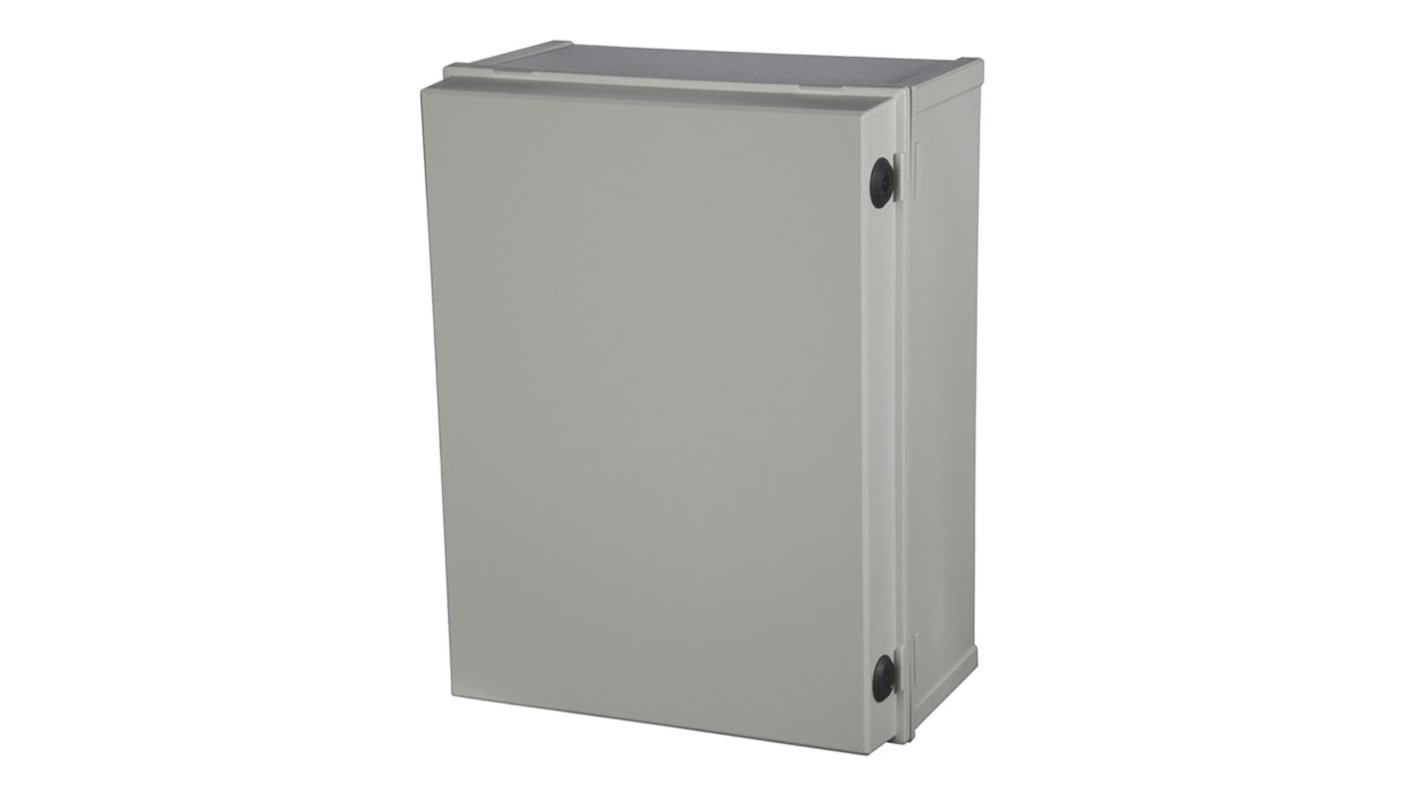

Fibox CAB PC Series Polycarbonate Wall Box, IP65, 400 mm x 300 mm x 180mm

RS Stock No.:: 289-8461
Mfr. Part No.:: CAB PC 403018 G3B CABINET
Manufacturer:: Fibox

Fibox CAB PC Series Polycarbonate Wall Box, IP65, 400 mm x 300 mm x 180mm

11 In stock for delivery within 4 working days

Added

Price Each

SGD262.58

(exc. GST)

SGD286.21

(inc. GST)

Units	Per unit
1 - 11	SGD262.58
12 - 24	SGD256.02
25 +	SGD249.62

RS Stock No.:: 289-8461
Mfr. Part No.:: CAB PC 403018 G3B CABINET
Manufacturer:: Fibox

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: FI

Product Details

Fibox CAB PC Wall Mount Enclosures

High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material used is Halogen free and is flame tested to UL94-V2 (self-extinguishing).

Features and Benefits

• Polycarbonate light grey RAL 7035
• Polyurethane gasket
• IP65 and IK08 protection
• Electrically insulated
• Halogen free
• UV resistant
• Operating temperature range: -40°C to +80°C

Accessories (ordered separately)

• Swing doors/front plates, aluminium, 1.5 mm thick
• Mounting plates, galvanised steel, 1.5 mm thick
• Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions
• Wall Brackets, 4 pieces, includes screws

Standards

EN 60529, EN 62262.

Approvals

UL; IEC 529; EEI

Specifications

Attribute	Value
External Height	400 mm
External Width	300 mm
External Depth	180mm
Body Material	Polycarbonate
Transparent Door	No
IP Rating	IP65
Chassis Plate	No
Door Lock Type	Key
Gland Plate	No
Colour	Grey
Series	CAB PC
External Mounting Type	Bracket
Internal Mounting Type	Panel
IK Rating	IK08
Fixing Kit	Yes
