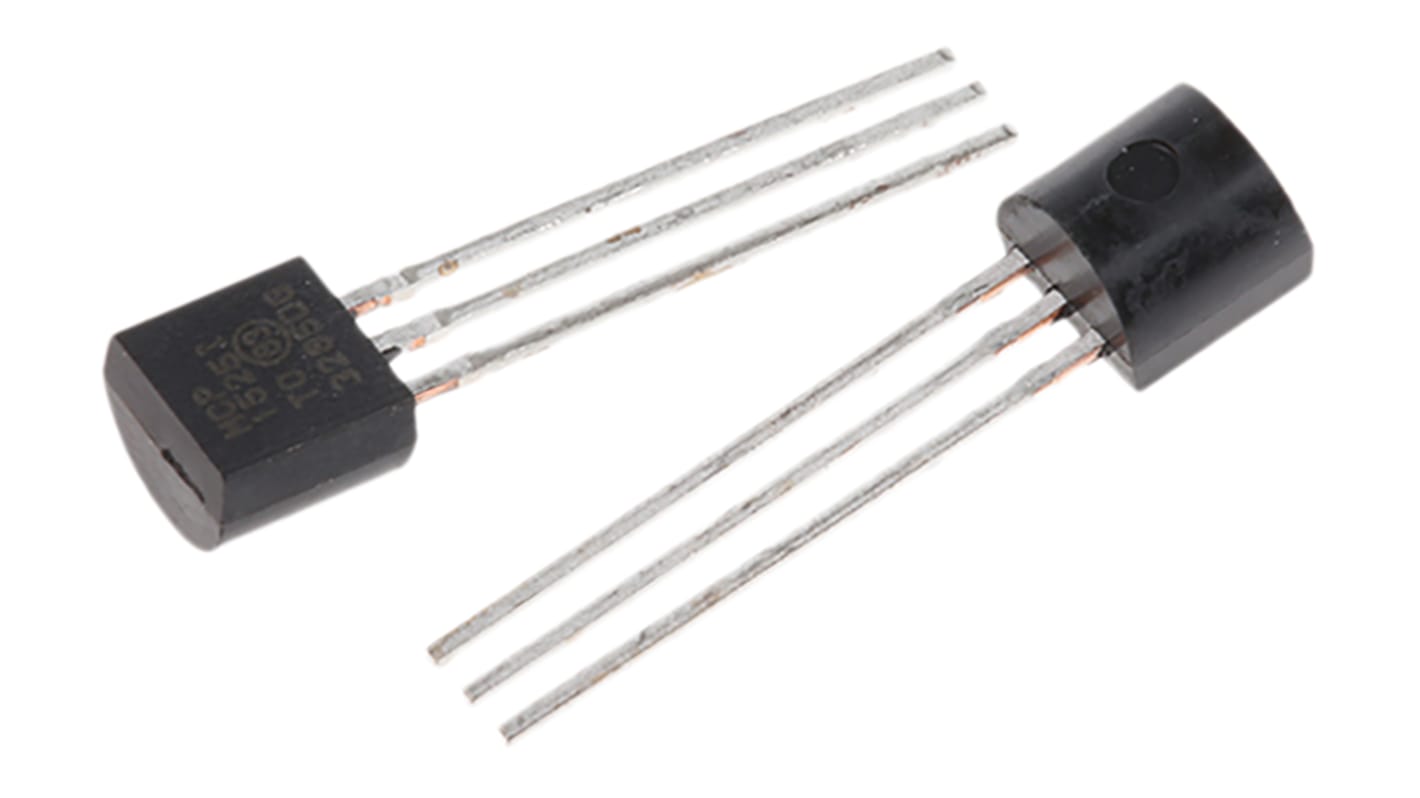

Microchip Fixed Series Voltage Reference 2.5V ±1.0 % 3-Pin TO-92, MCP1525-I/TO
- RS Stock No.:
- 738-6358
- Mfr. Part No.:
- MCP1525-I/TO
- Manufacturer:
- Microchip
125 In stock for delivery within 4 working days
Added
Price Each (In a Pack of 5)
SGD1.558
(exc. GST)
SGD1.698
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | SGD1.558 | SGD7.79 |
| 25 - 95 | SGD1.316 | SGD6.58 |
| 100 - 495 | SGD1.254 | SGD6.27 |
| 500 - 995 | SGD1.244 | SGD6.22 |
| 1000 + | SGD1.238 | SGD6.19 |
| *price indicative | ||
- RS Stock No.:
- 738-6358
- Mfr. Part No.:
- MCP1525-I/TO
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
MCP1525/1541 Voltage References
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Voltage References, Microchip
Specifications
Attribute | Value |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | TO-92 |
| Reference Type | Fixed |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 20mA |
| Maximum Input Voltage | 7 V |
| Pin Count | 3 |
| Line Regulation | 350 μV/V |
| Load Regulation | 1.3 mV/mA |
| Dimensions | 4.71 x 3.62 x 4.62mm |
| Height | 4.62mm |
| Width | 3.62mm |
| Length | 4.71mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
