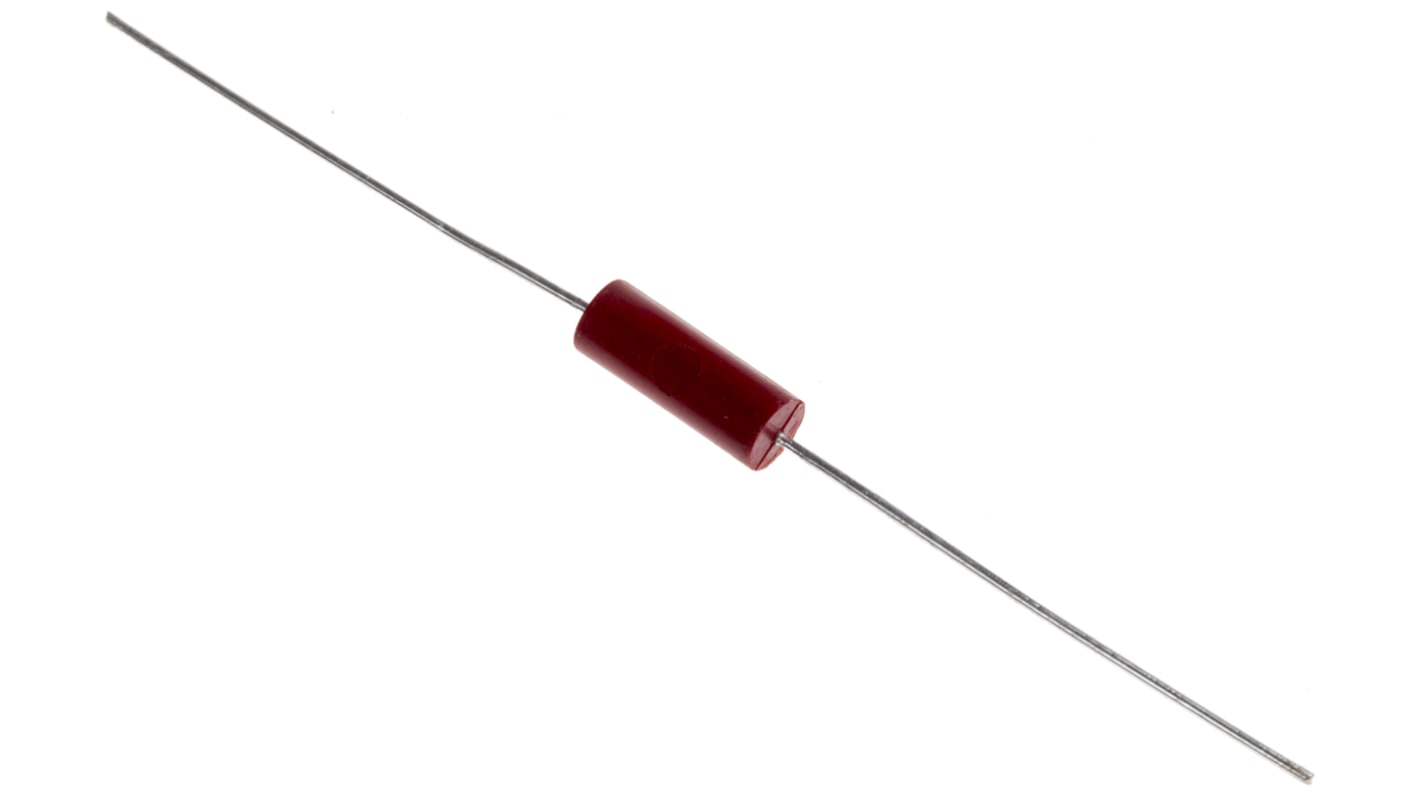

RS PRO 50 mΩ Silicone Resistor 3 W 1 %
- RS Stock No.:
- 146-9510
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
SGD42.68
(exc. GST)
SGD46.52
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Last RS stock
- Plus 1,320 unit(s) shipping from 10 August 2026
- Final 2,775 unit(s) shipping from 17 August 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | SGD8.536 | SGD42.68 |
| 50 - 120 | SGD8.466 | SGD42.33 |
| 125 - 245 | SGD8.286 | SGD41.43 |
| 250 - 745 | SGD7.936 | SGD39.68 |
| 750 + | SGD6.924 | SGD34.62 |
*price indicative
Sponsored
- RS Stock No.:
- 146-9510
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 50mΩ | |
| Product Type | Resistor | |
| Power Rating | 3W | |
| Tolerance ± | 1% | |
| Axial/Radial | Axial | |
| Voltage | 1000V | |
| Technology | Silicone | |
| Series | RSACS | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 275°C | |
| Height | 2.4mm | |
| Length | 10.6mm | |
| Diameter | 2.4mm | |
| Standards/Approvals | RoHS | |
| Width | 2.4mm | |
| Temperature Coefficient | +100 ppm/°C | |
| Lead Diameter | 0.81mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 50mΩ | ||
Product Type Resistor | ||
Power Rating 3W | ||
Tolerance ± 1% | ||
Axial/Radial Axial | ||
Voltage 1000V | ||
Technology Silicone | ||
Series RSACS | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 275°C | ||
Height 2.4mm | ||
Length 10.6mm | ||
Diameter 2.4mm | ||
Standards/Approvals RoHS | ||
Width 2.4mm | ||
Temperature Coefficient +100 ppm/°C | ||
Lead Diameter 0.81mm | ||
- COO (Country of Origin):
- MX
The RS PRO RSACS series resistors are ideal for current sense applications. These low value axial leaded resistors offer 1% tolerance standard across a wide range of resistance values. The RSACS series is designed with low inductance and is non-inductive below 0.25 ohms. The moulded design provides great protection for the resistance element and a consistent form in all sizes.
Resistance 50mΩ
Power Rating 3W
Tolerance ±1%
Axial/Radial Axial
