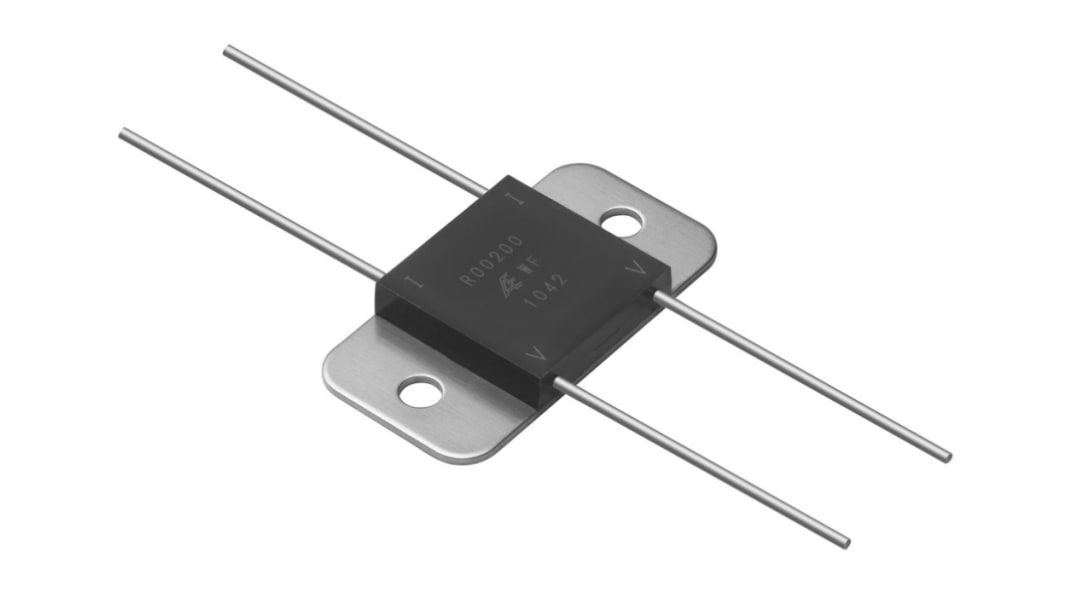

Alpha 5Ω Power Film Resistor 2W ±0.1% PCY5R0000B
- RS Stock No.:
- 335-236
- Mfr. Part No.:
- PCY5R0000B
- Manufacturer:
- Alpha
7 In stock for delivery within 3 working days
Added
Price Each
SGD155.16
(exc. GST)
SGD169.12
(inc. GST)
| Units | Per unit |
| 1 - 4 | SGD155.16 |
| 5 - 9 | SGD148.77 |
| 10 + | SGD144.79 |
- RS Stock No.:
- 335-236
- Mfr. Part No.:
- PCY5R0000B
- Manufacturer:
- Alpha
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
High-Precision Power Resistor, PC Series
The high preceision PC series of resistors from Alpha with heat sink can be used up to a rated power of 10W.
Note
Note 1: Resistance figures for type PB are guaranteed at a point 12.7 ±3.2 mm away from the resistor
However, where the resistance value is less than 10 Ω, it is guaranteed at a point 5.08 ±0.6 mm away
Note 2: Heat sink: aluminium chassis 152.4 mm (L) ´ 101.6 mm (W) ´ 50.8 mm (H) ´ 1.0 mm (T)
However, where the resistance value is less than 10 Ω, it is guaranteed at a point 5.08 ±0.6 mm away
Note 2: Heat sink: aluminium chassis 152.4 mm (L) ´ 101.6 mm (W) ´ 50.8 mm (H) ´ 1.0 mm (T)
Specifications
Attribute | Value |
|---|---|
| Resistance | 5Ω |
| Power Rating | 2W |
| Tolerance | ±0.1% |
| Technology | Power Film |
| Series | PCY |
| Temperature Coefficient | ±2.5ppm/°C |
| Maximum Operating Temperature | +155°C |
| Minimum Operating Temperature | -55°C |
