Valsteam ADCA 4.5 bar SG Iron Float & Thermostatic Steam Trap, 3/4 in
- RS Stock No.:
- 799-8897
- Mfr. Part No.:
- 29001
- Manufacturer:
- Valsteam ADCA
Temporarily out of stock - back order for despatch 28/05/2024, delivery within 4 working days from despatch date
Added
Price Each
SGD337.48
(exc. GST)
SGD367.85
(inc. GST)
| Units | Per unit |
| 1 + | SGD337.48 |
- RS Stock No.:
- 799-8897
- Mfr. Part No.:
- 29001
- Manufacturer:
- Valsteam ADCA
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PT
Product Details

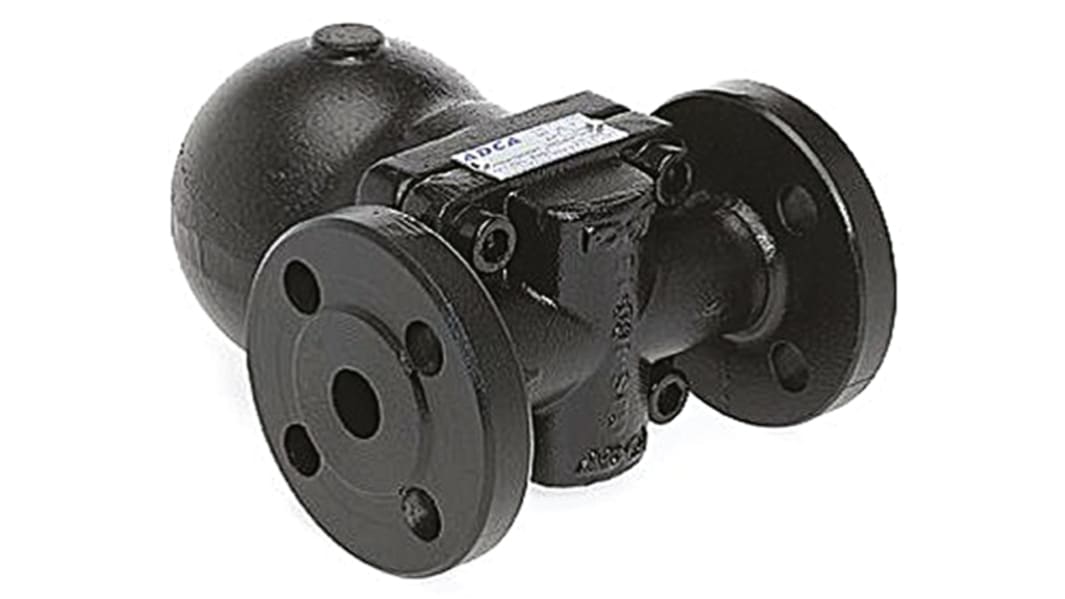

Float and Thermostatic Steam Traps
The FLT17LC float and thermostatic (integral air vent) steam traps series are designed for all types of low and high pressure steam heating and process equipment.
Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential
Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential
Modulating discharge
Discharges condensate at steam temperature
Unaffected by sudden or wide load and pressure changes
Excellent air discharge (by thermostatic air vent)
GJS-400 SG-Iron body construction
AISI-304 Stainless steel internals
C/W inbuilt thermostatic air vent
Discharges condensate at steam temperature
Unaffected by sudden or wide load and pressure changes
Excellent air discharge (by thermostatic air vent)
GJS-400 SG-Iron body construction
AISI-304 Stainless steel internals
C/W inbuilt thermostatic air vent
Note
Connections are female screwed or flanged for horizontal or vertical installation
Specifications
Attribute | Value |
|---|---|
| Trap Type | Float & Thermostatic |
| Connection | 3/4 in |
| Orientation | Horizontal, Vertical |
| Maximum Working Pressure | 4.5 bar |
| Maximum Temperature | +198°C |
| Body Material | SG Iron |
| Gasket Material | Graphite, Stainless Steel |
| Connection Size | 3/4in |
| Thread Standard or Connection Type | BSP |
