Maxim DS1216D, Real Time Clock, 32768B RAM Parallel, Phantom Clock, 32-Pin PDIP W

RS Stock No.:: 732-7276
Mfr. Part No.:: DS1216D
Manufacturer:: Maxim

Maxim DS1216D, Real Time Clock, 32768B RAM Parallel, Phantom Clock, 32-Pin PDIP W

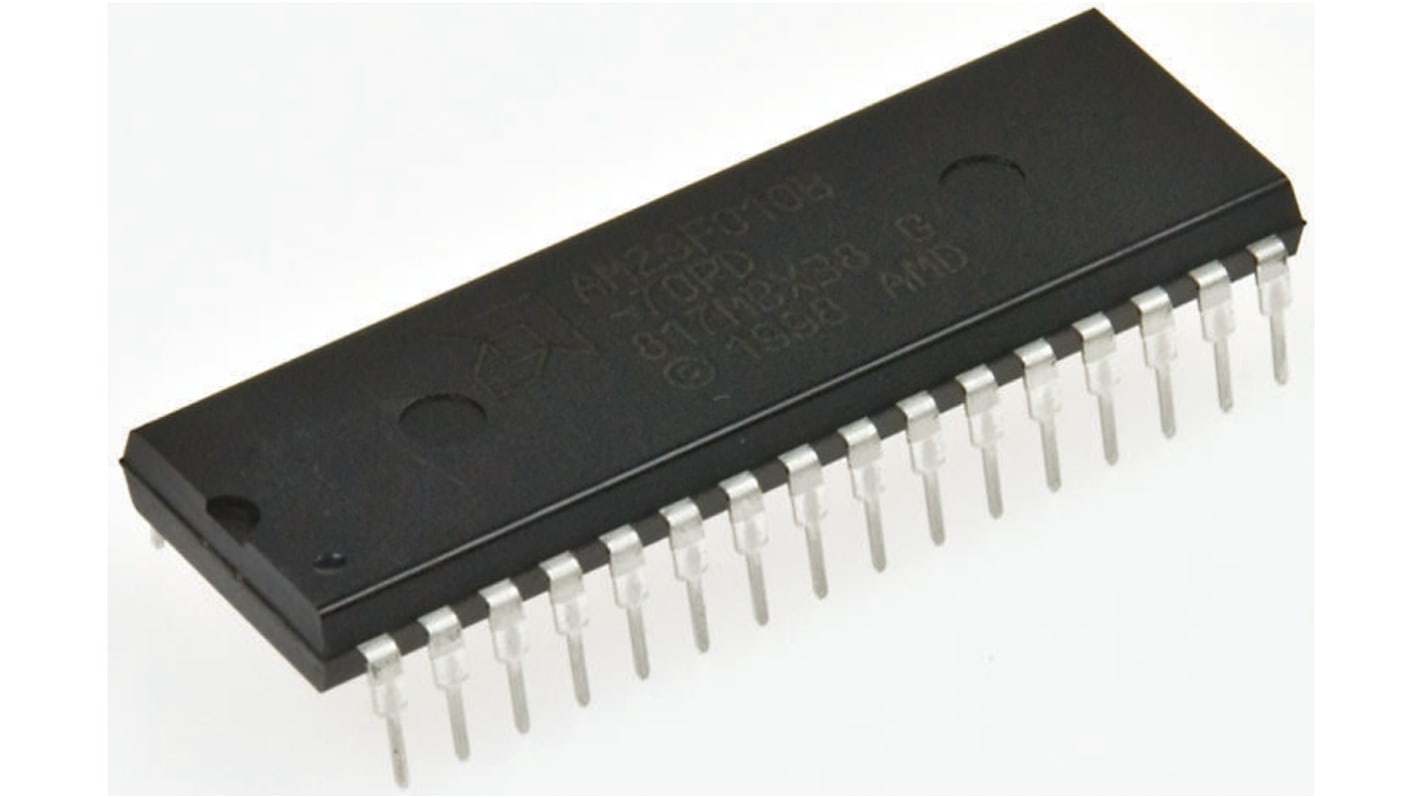

This image is representative of the product range

Discontinued product

RS Stock No.:: 732-7276
Mfr. Part No.:: DS1216D
Manufacturer:: Maxim

Datasheet
Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Attribute	Value
Functions	Calendar, ROM Control
Date Format	DW:DM:M:Y
Time Format	HH:MM:SS:hh
User RAM	32768B
Bus Type	Parallel, Phantom Clock
Mounting Type	Through Hole
Package Type	PDIP W
Pin Count	32
Dimensions	41.14 x 18.29 x 11.94mm
Length	41.14mm
Width	18.29mm
Height	11.94mm
Maximum Operating Supply Voltage	5.5 V
Minimum Operating Supply Voltage	4.5 V
Maximum Operating Temperature	+70 °C
Minimum Operating Temperature	0 °C

Maxim DS1216D, Real Time Clock, 32768B RAM Parallel, Phantom Clock, 32-Pin PDIP W

SRAM & NVRAM Accessories, Maxim Integrated Products
