CEAG Push Button Control Station, IP65, IP67 77.5mm 125mm +40°C -20°C 85mm

  • RS Stock No. 321-161
  • Mfr. Part No. GHG4118201R1308
  • Manufacturer CEAG
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Dual Pushbutton

Start and Stop pushbuttons
Depth: 90mm

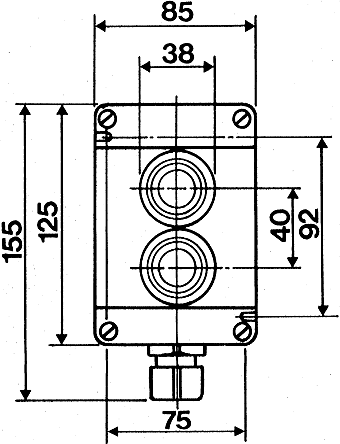

//media.rs-online.com/t_line/L321161-01.gif

CEAG Hazardous Area

Suitable for use in Zone 1 hazardous areas
Impact resistant thermoplastic
Ingress protection to IP67 (unless stated otherwise)

Rated voltage: contact blocks; 500V, signal lamps; 240V
Rated current: contact blocks; 16A
M20 bottom cable entry complete with cable-gland

Specifications
Attribute Value
IP Rating IP65, IP67
Cutout Diameter 22mm
Length 125mm
Width 85mm
Depth 77.5mm
Hazardous Area Certification ATEX
Maximum Current 6 A ac, 6 A dc
Maximum DC Voltage 110V
Maximum AC Voltage 500V
Maximum Operating Temperature +40°C
Minimum Operating Temperature -20°C
Temporarily out of stock - back order for despatch 20/08/2020, delivery within 4 working days from despatch date
Price Each
SGD 365.33
(exc. GST)
SGD 390.90
(inc. GST)
units
Per unit
1 +
SGD365.33
