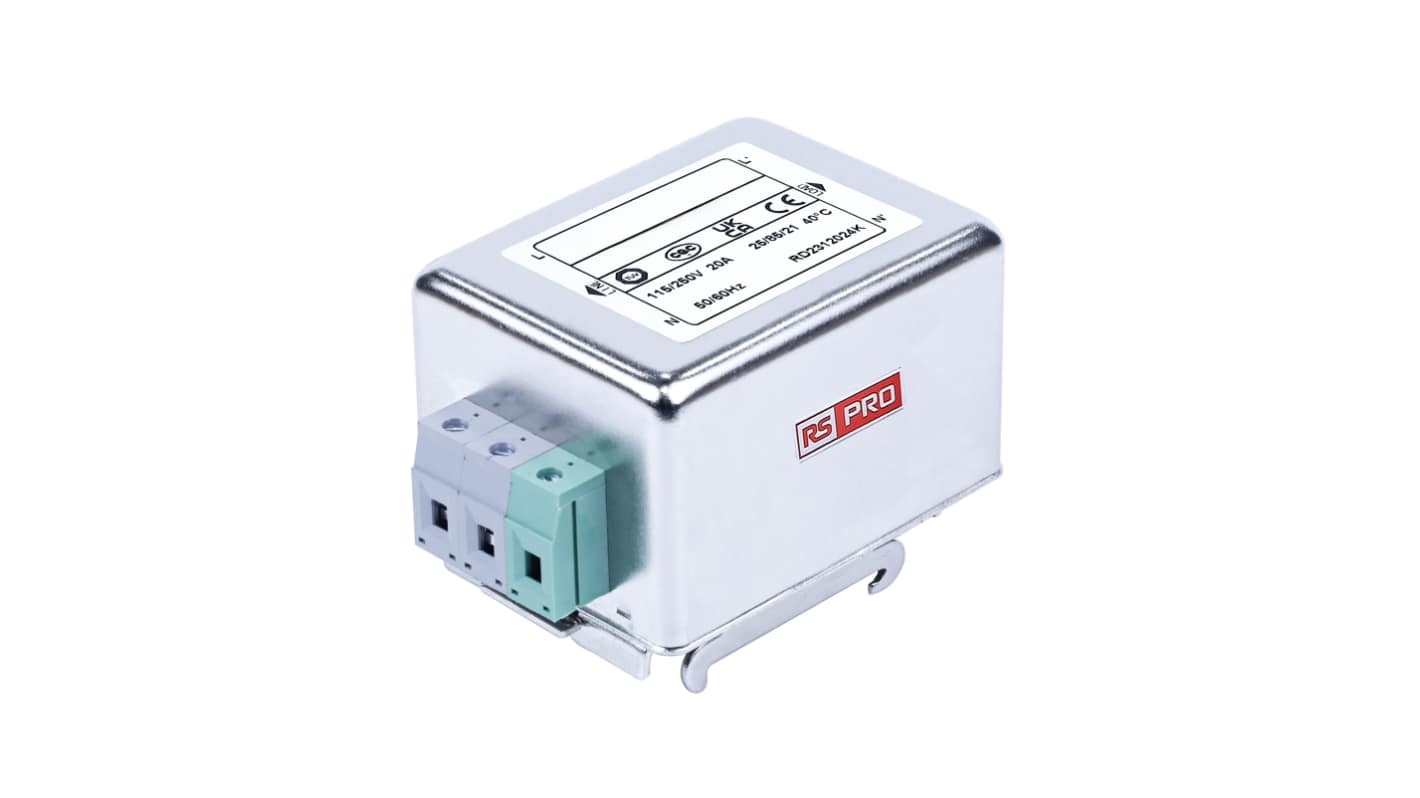

RS PRO 20A 115/250 V ac 50 → 60Hz, DIN Rail Power Line Filter, Terminal Block, Single Phase
- RS Stock No.:
- 286-7241
- Manufacturer:
- RS PRO
N
Bulk discount available
Subtotal (1 unit)*
SGD64.56
(exc. GST)
SGD70.37
(inc. GST)
FREE delivery for orders over $150.00
In Stock
- 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | SGD64.56 |
| 10 - 24 | SGD60.04 |
| 25 - 49 | SGD55.83 |
| 50 - 99 | SGD51.93 |
| 100 + | SGD48.31 |
*price indicative
- RS Stock No.:
- 286-7241
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Current Rating | 20A | |
| Maximum Voltage Rating | 115/250 V ac | |
| Mounting Type | DIN Rail | |
| Termination Style | Terminal Block | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 50 → 60Hz | |
| Length | 73mm | |
| Depth | 56mm | |
| Capacitance | 22000pF | |
| Height | 44mm | |
| Inductance | 2 x 0.5mH | |
| Dimensions | 73 x 56 x 44mm | |
| Leakage Current | 0.5/1.0mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Standards Met | UL 1283 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Current Rating 20A | ||
Maximum Voltage Rating 115/250 V ac | ||
Mounting Type DIN Rail | ||
Termination Style Terminal Block | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Operating Frequency 50 → 60Hz | ||
Length 73mm | ||
Depth 56mm | ||
Capacitance 22000pF | ||
Height 44mm | ||
Inductance 2 x 0.5mH | ||
Dimensions 73 x 56 x 44mm | ||
Leakage Current 0.5/1.0mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Standards Met UL 1283 | ||
