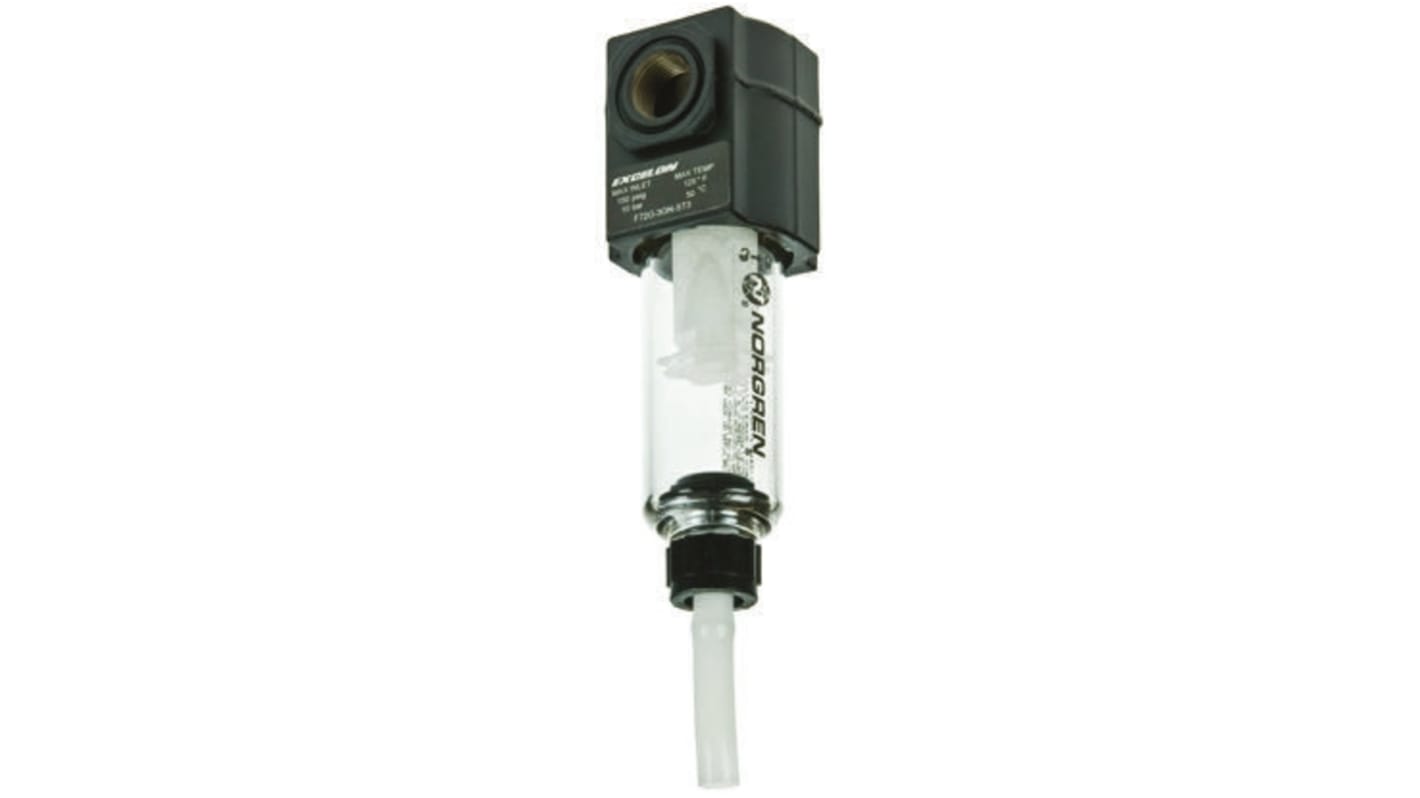

Norgren F72G series 40μm G 3/8 10 bar Pneumatic Filter with Semi Automatic drain
- RS Stock No.:
- 267-9197
- Mfr. Part No.:
- F72G-3GN-ST3
- Manufacturer:
- Norgren
4 In stock for delivery within 4 working days
Added
Price Each
SGD155.87
(exc. GST)
SGD169.90
(inc. GST)
| Units | Per unit |
| 1 + | SGD155.87 |
- RS Stock No.:
- 267-9197
- Mfr. Part No.:
- F72G-3GN-ST3
- Manufacturer:
- Norgren
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
General Duty Filter
Removes water vapour and impurities from the air supply
Filtration size 40 μm
Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet
Transparent polycarbonate bowl
Temperature range -34°C to +50°C
Element material sintered polypropylene
Filtration size 40 μm
Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet
Transparent polycarbonate bowl
Temperature range -34°C to +50°C
Element material sintered polypropylene
Note
Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop.
Standards
ISO 8573-1, Class 5 & Class 3
Filters
Specifications
Attribute | Value |
|---|---|
| Filtration Size | 40µm |
| Port Connection | G 3/8 |
| Drain Type | Semi Automatic |
| Manufacturer Series | F72G |
| Typical Flow Rate | 30L/s |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +50°C |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -34°C |
| Port Connection Thread Size | 3/8 in |
