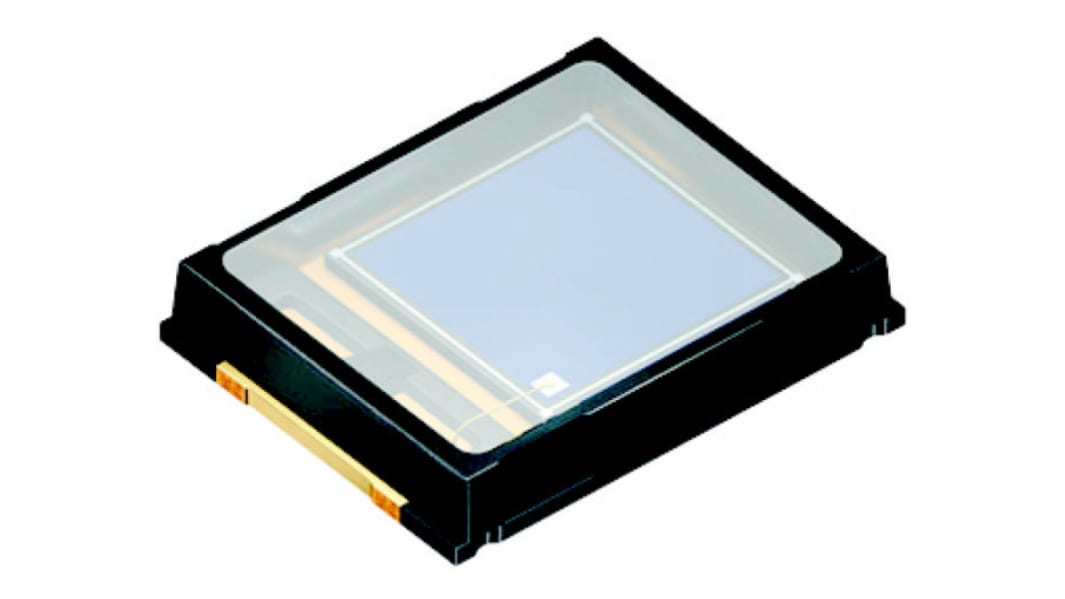

ams OSRAM, SFH 2201 Si Photodiode, Surface Mount Top LED
- RS Stock No.:
- 161-1872
- Mfr. Part No.:
- SFH 2201
- Manufacturer:
- ams OSRAM
2660 In stock for delivery within 4 working days
Added
Price Each (In a Pack of 5)
SGD2.518
(exc. GST)
SGD2.745
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 45 | SGD2.518 | SGD12.59 |
| 50 - 120 | SGD2.466 | SGD12.33 |
| 125 - 370 | SGD2.394 | SGD11.97 |
| 375 - 745 | SGD2.324 | SGD11.62 |
| 750 + | SGD2.254 | SGD11.27 |
| *price indicative | ||
- RS Stock No.:
- 161-1872
- Mfr. Part No.:
- SFH 2201
- Manufacturer:
- ams OSRAM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Silicon PIN Photodiode
Suitable for reflow soldering
Especially suitable for applications from 400 nm to 1100 nm
small package: (WxDxH) 4 mm x 5.1 mm x 0.85mm
Solder control structure
Applications
Photo interrupters
Industrial electronics
Consumer electronics
For control and drive circuits
Remote control
Especially suitable for applications from 400 nm to 1100 nm
small package: (WxDxH) 4 mm x 5.1 mm x 0.85mm
Solder control structure
Applications
Photo interrupters
Industrial electronics
Consumer electronics
For control and drive circuits
Remote control
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Wavelength of Peak Sensitivity | 950nm |
| Package Type | Top LED |
| Amplifier Function | No |
| Mounting Type | Surface Mount |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 300nm |
| Maximum Wavelength Detected | 1100nm |
| Typical Fall Time | 2µs |
| Length | 5.09mm |
| Width | 4mm |
| Height | 0.85mm |
| Peak Photo Sensitivity | 0.7A/W |
| Typical Rise Time | 2µs |
| Series | SFH |
