Samtec TSW Series Straight Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 767-0877
- Mfr. Part No.:
- TSW-104-07-L-S
- Manufacturer:
- Samtec
185 In stock for delivery within 4 working days
Added
Price Each
SGD0.36
(exc. GST)
SGD0.39
(inc. GST)
Units | Per unit |
1 - 19 | SGD0.36 |
20 - 74 | SGD0.35 |
75 - 299 | SGD0.34 |
300 - 599 | SGD0.33 |
600 + | SGD0.32 |
- RS Stock No.:
- 767-0877
- Mfr. Part No.:
- TSW-104-07-L-S
- Manufacturer:
- Samtec
Legislation and Compliance
Product Details
Through Hole 2.54mm Square Post Header Terminal Strip - TSW Series
TSW series PCB through hole board-to-board square post header terminal strips with a 2.54mm pitch, a black, glass filled polyester insulator and phosphor bronze terminals with gold plated contacts. These PCB board to board through hole square post header terminal strips are available in a variety of configurations including single and double row, straight and right angle and an option of platings and post lengths. The operating temperature range for these TSW series PCB through hole header terminals is -55 to 125°C.
TSW PCB headers with part number TSW-xxx-xx-x-S are single row.
TSW PCB headers with part number TSW-xxx-xx-x-D are double row.
TSW PCB headers with part number TSW-xxx-xx-L-x have 0.25μm gold on post and matte tin on tail.
TSW PCB headers with part number TSW-xxx-xx-G-x have 0.25μm gold on post and gold flash on balance.
TSW PCB headers with part number TSW-xxx-07-x-x have a terminal height of 5.84mm and a tail length of 2.54mm.
TSW PCB headers with part number TSW-xxx-08-x-x have a terminal height of 5.84mm and a tail length of 5.08mm.
TSW PCB headers with part number TSW-xxx-14-x-x have a terminal height of 8.13mm and a tail length of 2.79mm.
TSW PCB headers with part number TSW-xxx-17-x-x have a terminal height of 15.74mm and a tail length of 2.79mm.
TSW PCB headers with part number TSW-xxx-23-x-x have a terminal height of 5.84mm and a tail length of 2.92mm.
TSW PCB headers with part number TSW-xxx-26-x-x have a terminal height of 5.84mm and a tail length of 3.20mm.
TSW PCB headers with part number TSW-xxx-xx-x-S are single row.
TSW PCB headers with part number TSW-xxx-xx-x-D are double row.
TSW PCB headers with part number TSW-xxx-xx-L-x have 0.25μm gold on post and matte tin on tail.
TSW PCB headers with part number TSW-xxx-xx-G-x have 0.25μm gold on post and gold flash on balance.
TSW PCB headers with part number TSW-xxx-07-x-x have a terminal height of 5.84mm and a tail length of 2.54mm.
TSW PCB headers with part number TSW-xxx-08-x-x have a terminal height of 5.84mm and a tail length of 5.08mm.
TSW PCB headers with part number TSW-xxx-14-x-x have a terminal height of 8.13mm and a tail length of 2.79mm.
TSW PCB headers with part number TSW-xxx-17-x-x have a terminal height of 15.74mm and a tail length of 2.79mm.
TSW PCB headers with part number TSW-xxx-23-x-x have a terminal height of 5.84mm and a tail length of 2.92mm.
TSW PCB headers with part number TSW-xxx-26-x-x have a terminal height of 5.84mm and a tail length of 3.20mm.
Note
These TSW series PCB through hole board-to-board square post header terminals mate with the following:
BCS standard box sockets - see stock number 766-6486 typically
CES low profile socket strips - see stock number 766-6600 typically
SLW low profile socket strips - see stock number 767-9408 typically
SSM surface mount socket strips - see stock number 765-5357 typically
SSQ socket strips - see stock number 765-5468 typically
SSW socket strips - see stock number 765-5593 typically
BCS standard box sockets - see stock number 766-6486 typically
CES low profile socket strips - see stock number 766-6600 typically
SLW low profile socket strips - see stock number 767-9408 typically
SSM surface mount socket strips - see stock number 765-5357 typically
SSQ socket strips - see stock number 765-5468 typically
SSW socket strips - see stock number 765-5593 typically

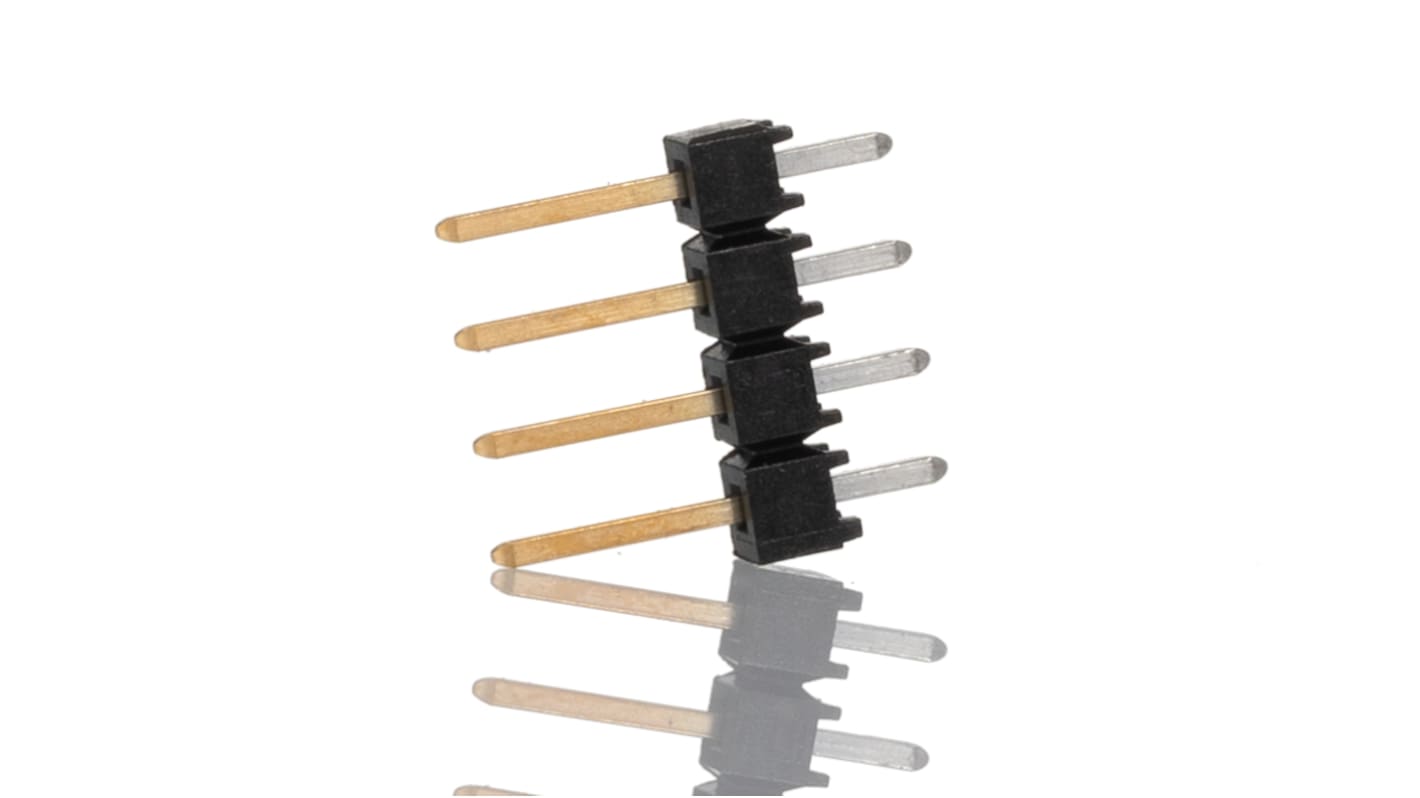

Samtec TSW Series Pin Header, Through Hole Mounting, 1 Row - TSW-104-07-L-S
This pin header from Samtec is a high-quality connector designed for various applications in various industries. With features like phosphor bronze contacts and gold-plated pins, this pin header offers reliable connectivity and high performance.
Features & Benefits
• High-quality phosphor bronze contacts ensure excellent conductivity and durability
• Gold-plated pins provide corrosion resistance and a reliable connection
• Suitable for board to board and wire to board connections in various electronic applications
• Through hole mounting design for easy and secure installation
• 2.54mm pitch connector ideal for various circuit board designs.
• Gold-plated pins provide corrosion resistance and a reliable connection
• Suitable for board to board and wire to board connections in various electronic applications
• Through hole mounting design for easy and secure installation
• 2.54mm pitch connector ideal for various circuit board designs.
Applications
• Ideal for use in automation systems for interconnecting circuit boards
• Can be used for electronic devices requiring high-current connections
• Suitable for creating secure connections in electrical control panels
• Used for wire to board connections in mechanical control systems
• Can be used for electronic devices requiring high-current connections
• Suitable for creating secure connections in electrical control panels
• Used for wire to board connections in mechanical control systems
Can it handle high-current applications?
Yes, it is designed for high-current applications with a current rating of 7.6 A.
Will it work for through hole mounting installations?
Yes, the through hole mounting design ensures secure installation.
Is it suitable for board to board connections?
Yes, it is ideal for board to board and wire to board connections.
Can it be used in automation systems?
Yes, it is reliable for automation systems requiring reliable connections.
What are the benefits of gold-plated pins?
Gold-plated pins offer corrosion resistance and a reliable connection.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.54mm Board to Board and Wire to Board - Samtec
Specifications
Attribute | Value |
---|---|
Series | TSW |
Pitch | 2.54mm |
Number of Contacts | 4 |
Number of Rows | 1 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
Connector System | Board to Board, Wire to Board |
Termination Method | Solder |
Contact Plating | Gold |
Contact Material | Phosphor Bronze |
Current Rating | 7.6A |
Tail Pin Length | 2.54mm |
Mating Pin Length | 5.84mm |
Voltage Rating | 550 V ac |
