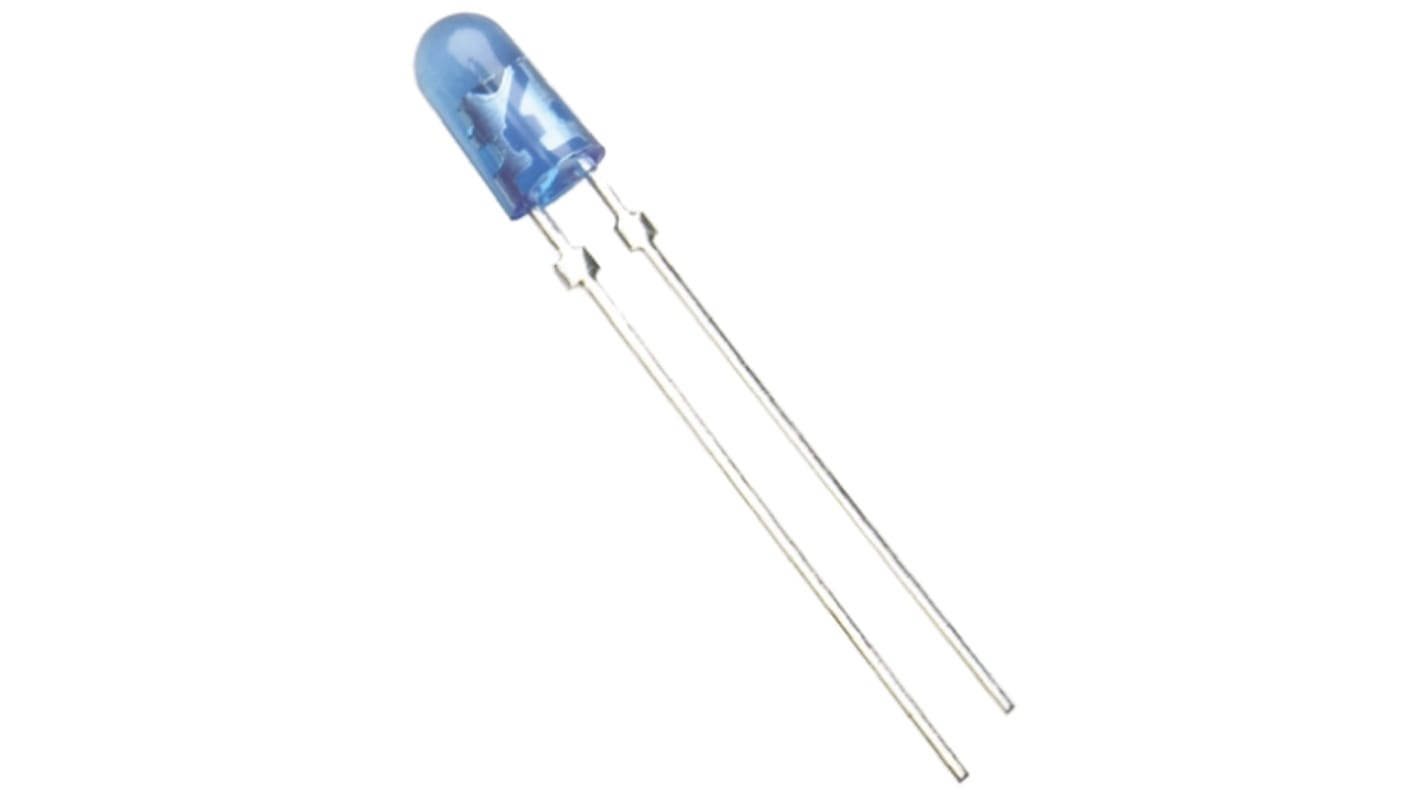

Broadcom HLMP-HB75-UVBDD, 470 nm Blue LED, 5mm (T-1 3/4) Oval Through Hole package

  • RS Stock No. 769-3618
  • Mfr. Part No. HLMP-HB75-UVBDD
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Avago HLMP-Hx74/75 Series LEDs

The HLMP-HG74/75, HLMP-HM74/75 and HLMP-HB74/75 families, from Avago Technologies, are T-1 3/4 (5mm) standard oval LEDs. The HLMP-Hx74/75 series are precision optical performance LEDs designed for full colour/video and passenger information sign applications. Their oval shaped radiation pattern and high luminous intensity are ideal for outdoor applications which require a wide field of view alongside readability in sunlight. The packages are made from an epoxy which contains a UV inhibitor to reduce the effects of long term exposure to direct sunlight.
Suitable applications for the HLMP-Hx74/75 LEDs include full colour sign applications.

Features of the HLMP-Hx74/75:
- Well defined spatial radiation pattern
- High brightness materials
- Red, green and blue colour options
- Moisture resistant
- Tinted and diffused
- Viewing angle: 40° x 100 °

Visible Light LEDs, Avago Technologies

Specifications
Attribute Value
LED Colours Blue
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 3.2 V
Luminous Intensity 1.2 cd
Number of Pins 2
Viewing Angle 40 x 100 °
Lens Shape Oval
Dominant Wavelength 470 nm
Dimensions 5 x 7mm
Lens Colour Blue
250 In stock for delivery within 4 working days
Price Each (In a Pack of 10)
SGD 1.09
(exc. GST)
SGD 1.17
(inc. GST)
units
Per unit
Per Pack*
10 - 10
SGD1.09
SGD10.90
20 - 40
SGD1.069
SGD10.69
50 - 90
SGD1.047
SGD10.47
100 - 190
SGD0.832
SGD8.32
200 +
SGD0.815
SGD8.15
*price indicative
