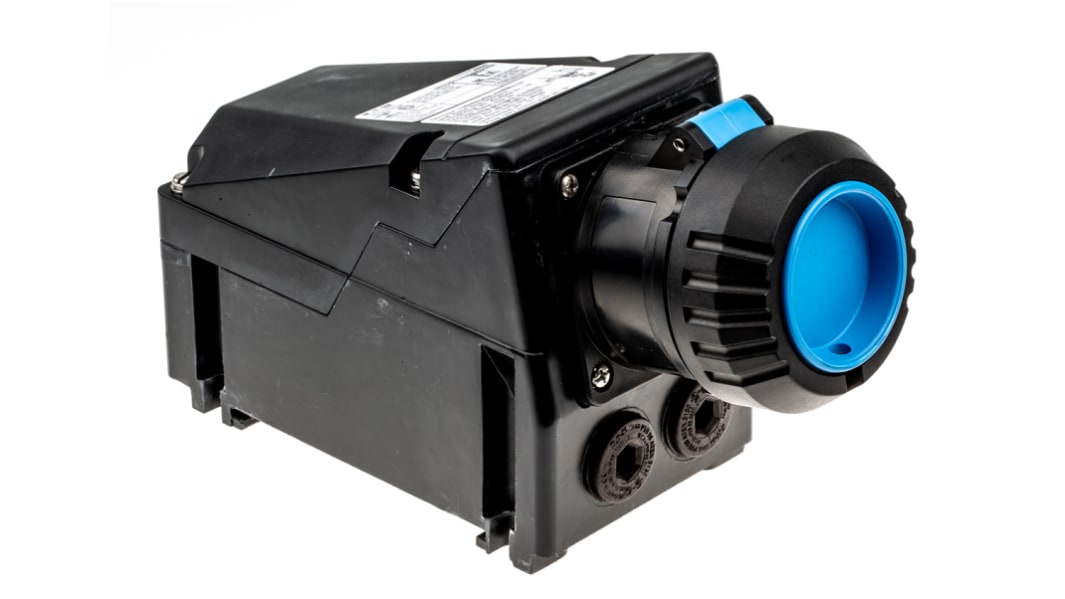

2P+E IP66 ATEX Approved Power Connector, Socket, 16A 250 V

  • RS Stock No. 377-7292
  • Mfr. Part No. GHG5114306R0002
  • Manufacturer CEAG
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

CEAG Enhanced Sockets

CEAG Crouse-Hinds enhanced BS4343 (IEC309) plugs, sockets and couplers are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used Standard versions. The Enhanced version will ultimately replace the Standard range.

Patented plug and turn connections
Ingress protection to IP66/67
Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plugs will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plugs will NOT mate with standard sockets and couplers

Panel and wall mountable
Two cable entry points
Sockets will accept Enhanced and Standard plugs

Note

Cable entry sizes for 16A versions: 8-17mm2, 32A 17-28mm2, terminal capacity: 16A 1-4mm2, 32A 4-10mm2

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

Specifications
Attribute Value
Current Rating 16.0A
Plug/Socket Socket
Pole Format 2P+E
Voltage Rating 250 V
Mounting Type Surface Mount
Hazardous Area Certification ATEX
IP Rating IP66
Gender Female
37 In stock for delivery within 4 working days
Price Each
Was SGD370.00
SGD 281.47
(exc. GST)
SGD 301.17
(inc. GST)
units
Per unit
1 +
SGD281.47
